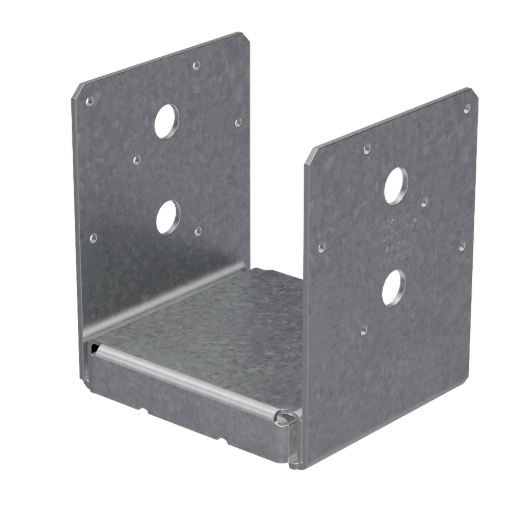

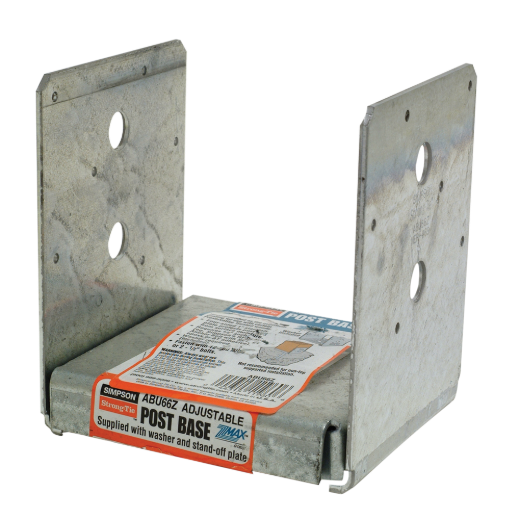

Simpson ABU ZMAX Galvanized Adjustable Standoff Post Base for 6x6

Mfr.: Simpson Strong-Tie
Item #: I036397
Mfr. #: ABU66Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $76.11
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Tie ABU is designed to attach wooden posts to existing concrete in high capacity applications. The built-in 1-in. standoff of this adjustable post base helps to prevent rot at the end of the post. The ABU has a slotted anchor hole in the base for adjustability and attaches to the post with nails, Strong-Drive SD Connector screws or bolts. This versatile post base makes a cost-effective option for securing a post to the foundation, with a design built for maximum uplift performance.
  • The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
  • 1-in. standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
  • Increased uplift loads for earthquake or wind loading
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Features

  • The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
  • 1-in. standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
  • Increased uplift loads for earthquake or wind loading
  • Nominal post size: 6x6
  • Steel gauge: Base 12, strap 10
  • ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications


Nominal post size6x6Steel gaugeBase 12, strap 10
GalvanizationZMAX
*
*
*
