Simpson Adjustable I-Joist Truss Hanger

Mfr.: Simpson Strong-Tie
Item #: I091949
Mfr. #: THAI222
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $25.33
i h h

Description

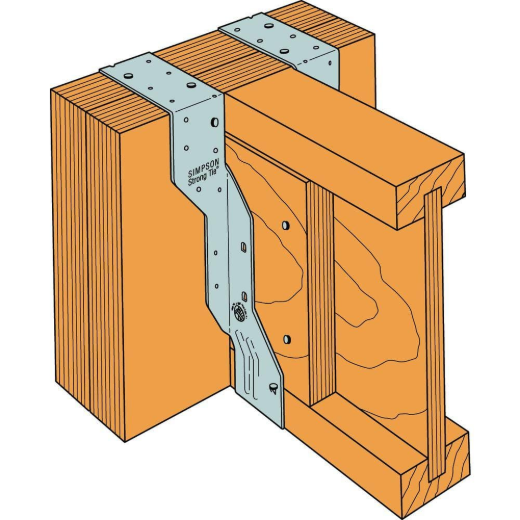

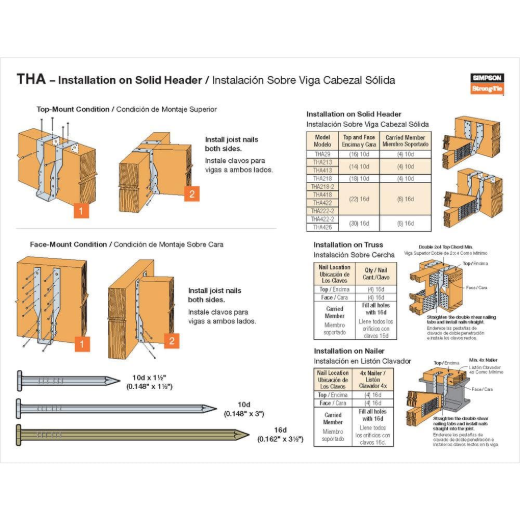

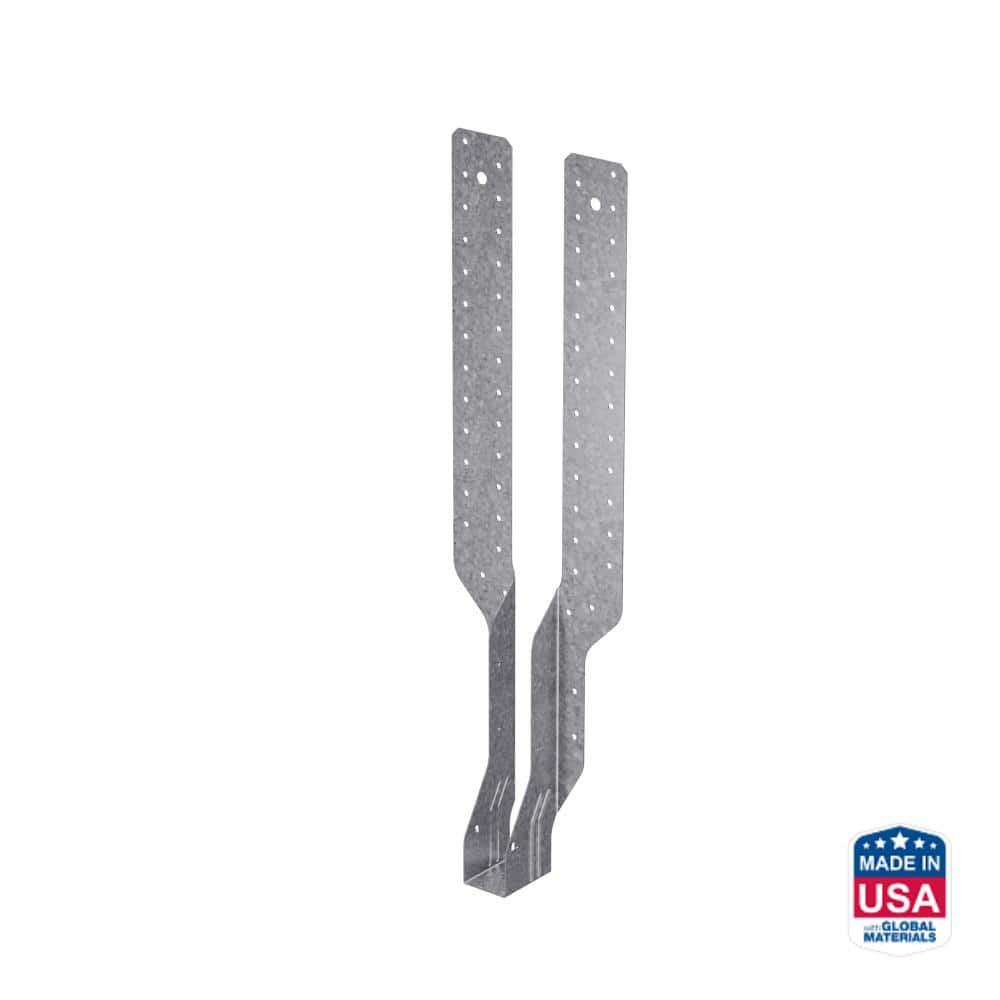

The Simpson Strong-Tie THAI222 is an adjustable hanger specifically designed for I-joists. It features extra-long straps that can be field-formed, providing essential height adjustability and top-flange hanger convenience. The design incorporates positive-angle nailing, which helps prevent the splitting of the I-joist's bottom flange, ensuring structural integrity.
  • Designed for I-joists
  • Extra-long straps for field-adjustable height

Features

  • Top-flange hanger design for easy installation
  • Positive-angle nailing helps eliminate bottom flange splitting
  • G90 Galvanized finish for added corrosion protection
Products specifications
Model Number THAI222
Material 18 Gauge Steel
Finish G90 Galvanized
Category I-Joist & SCL Hanger
*
*
*
