Simpson Adjustable Post Cap Zmax

Mfr.: Simpson Strong-Tie
Item #: I092073
Mfr. #: AC6Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $16.91
i h h

Description

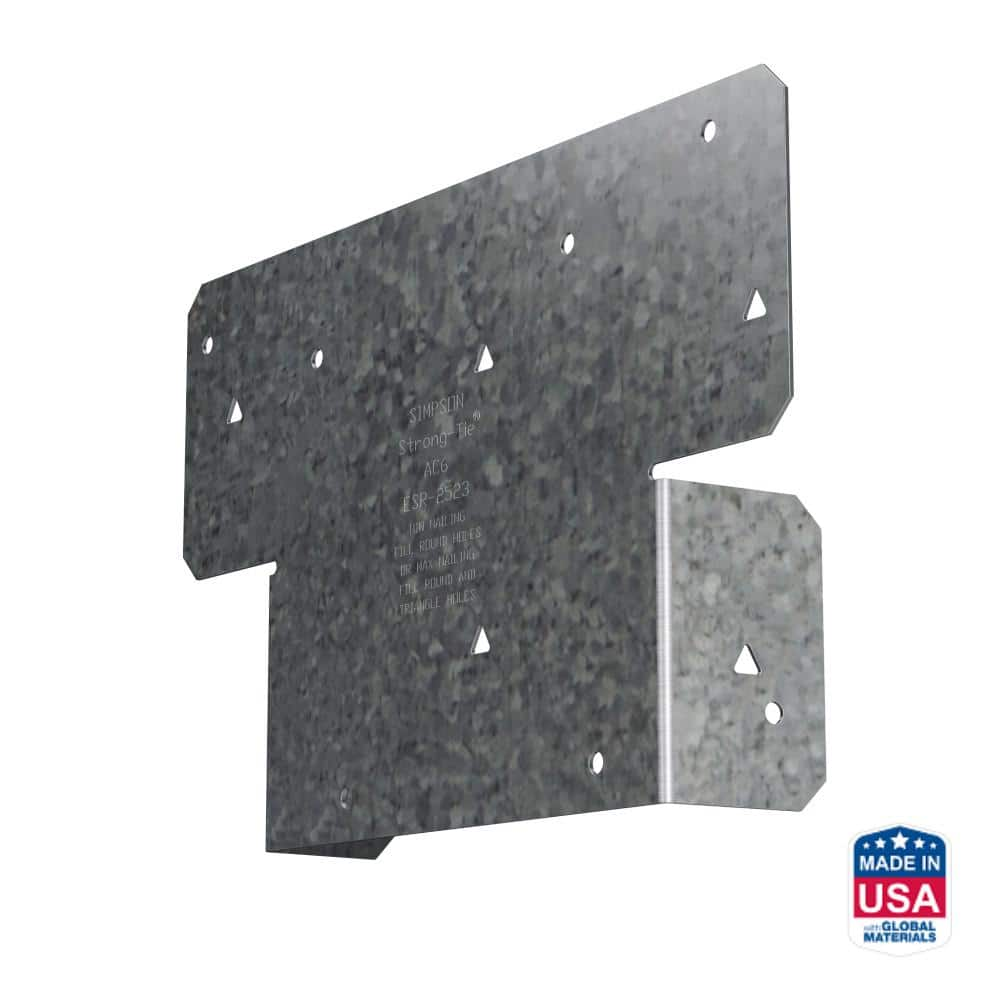

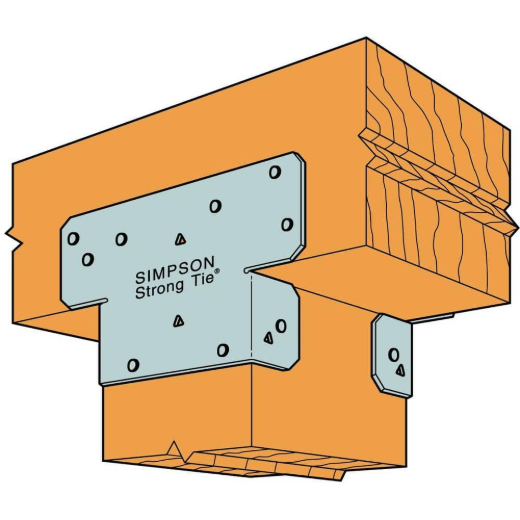

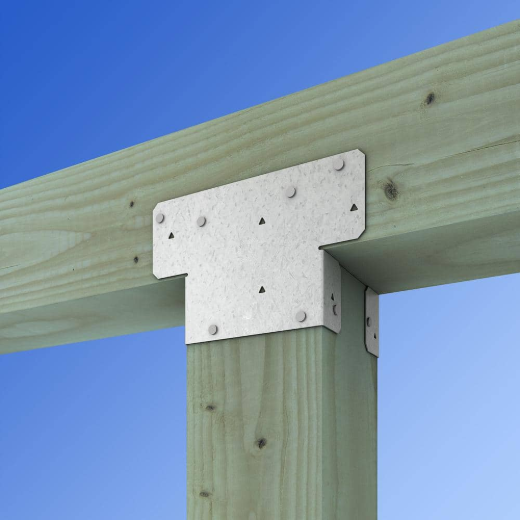

The Simpson AC6Z adjustable post cap is designed to provide a secure, load-rated connection between a beam and a post, suitable for both new and retrofit applications. This connector features an adjustable design that allows for versatile installation while eliminating the need to drive nails into the end grain of the wood. Built with 18-gauge ZMAX galvanized steel, it provides superior strength and corrosion resistance, making it an ideal choice for outdoor structural projects. Installation in pairs is required to achieve the full allowable load capacity.
  • ZMAX Galvanized Finish for corrosion resistance
  • Adjustable design for versatile fit

Features

  • Dual nailing patterns available for minimum and maximum load options
  • Compatible with specified nails or Strong-Drive SD connector screws
Products specifications
Model AC6Z
Material 18 Gauge Steel
Finish ZMAX Galvanized
Post Size 6X
Width 5-1/2 inches
Length 8-1/2 inches
*
*
*
