Simpson Adjustable Truss Hanger

Mfr.: Simpson Strong-Tie
Item #: I091931
Mfr. #: THA222-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $17.18
i h h

Description

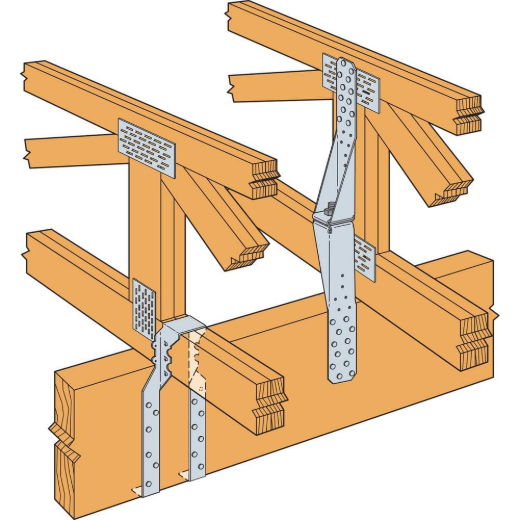

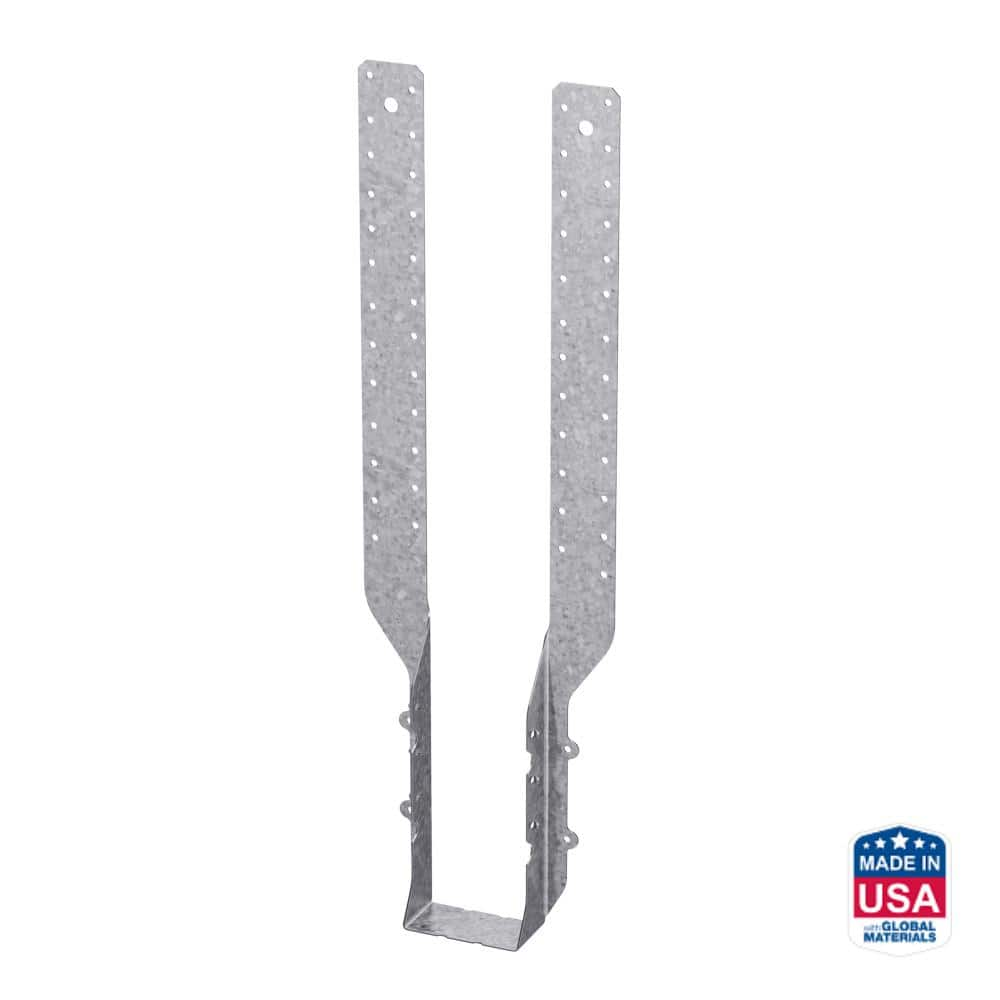

The Simpson Strong-Tie THA222-2 is a versatile U-shaped truss hanger designed to support double 2x trusses. It features extra-long straps that allow for field-adjustable height, making it ideal for applications where precise truss location is needed. This hanger can be installed as either a top-flange or face-mount hanger, offering significant flexibility for residential and commercial construction projects.
  • Extra-long straps for height adjustability

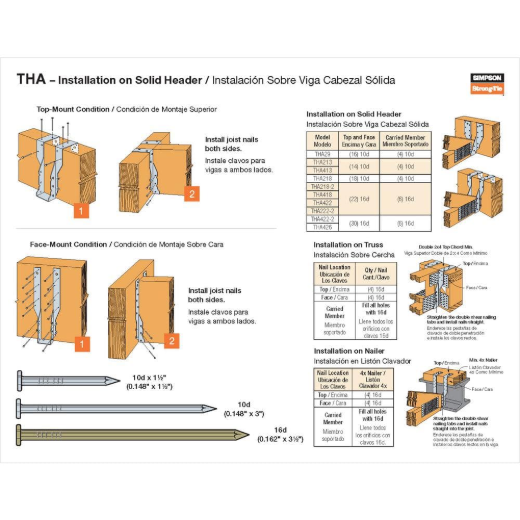

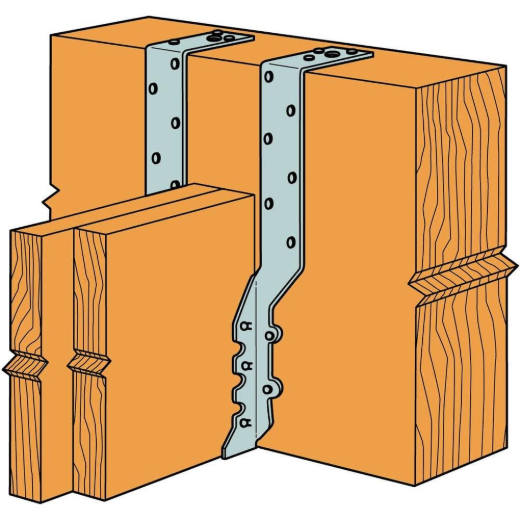

  • Can be installed as top-flange or face-mount

Features

  • Dense nail pattern in straps for easy top-flange installation
  • G90 galvanized coating for increased corrosion resistance
Products specifications
model THA222-2
joist_size Double 2x
height 22 3/16 in
width 3 1/8 in
material Steel
finish G90 Galvanized
gauge 16
*
*
*
