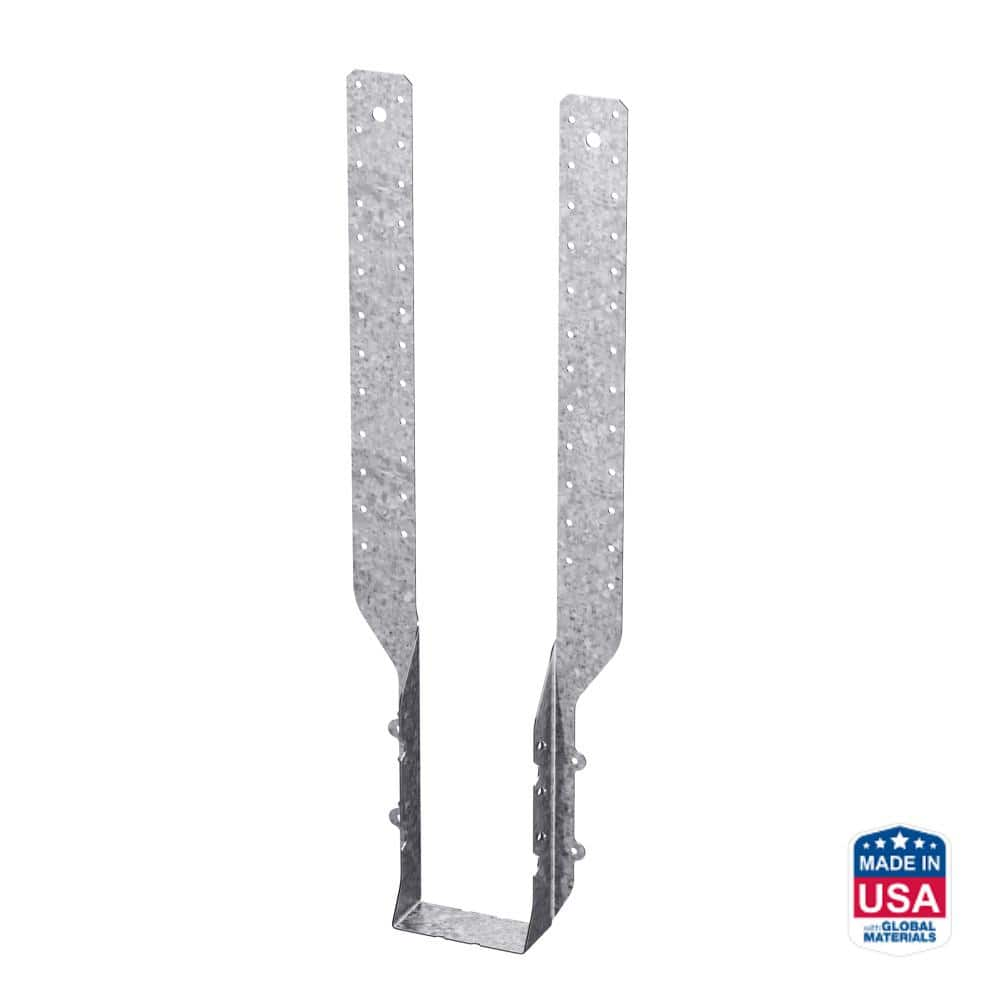

Simpson THA - 3-5/8" x 22" Adjustable Truss Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091935
Mfr. #: THA422
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $10.04
i h h

Description

The Simpson Strong-Tie THA422 is an adjustable truss hanger designed to provide robust support for trusses and beams in construction applications. Featuring extra-long straps, this hanger allows for flexible height adjustment and can be field-formed for convenient top-flange installation. Its versatile U-shaped design also supports face-mount installation, making it an ideal solution for various framing requirements. The G90 galvanized finish ensures enhanced durability and resistance against corrosion in exterior or demanding environments.
  • Extra-long straps for adjustable height

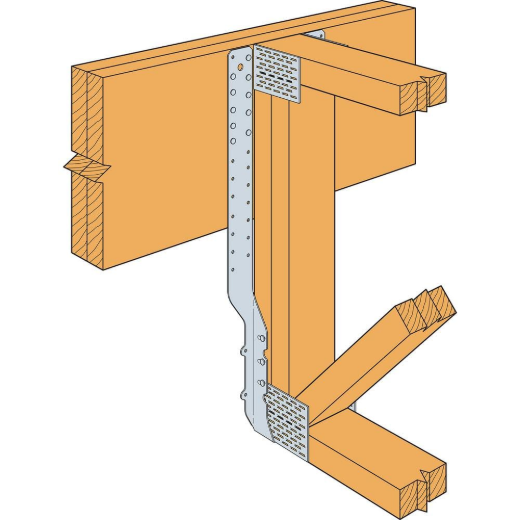

  • Versatile top-flange or face-mount installation

Features

  • G90 galvanized coating for corrosion resistance
  • Dense nail pattern for flexible installation options
  • Field-formable straps for custom installation needs

Includes

  • (1) THA422 Adjustable Truss Hanger
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 4 in x 22 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange
Series THA
Steel Gauge Refer to Manufacturer
*
*
*
