Simpson Adjustable Truss Hanger THA426

Mfr.: Simpson Strong-Tie
Item #: I091938
Mfr. #: THA426
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $26.30
i h h

Description

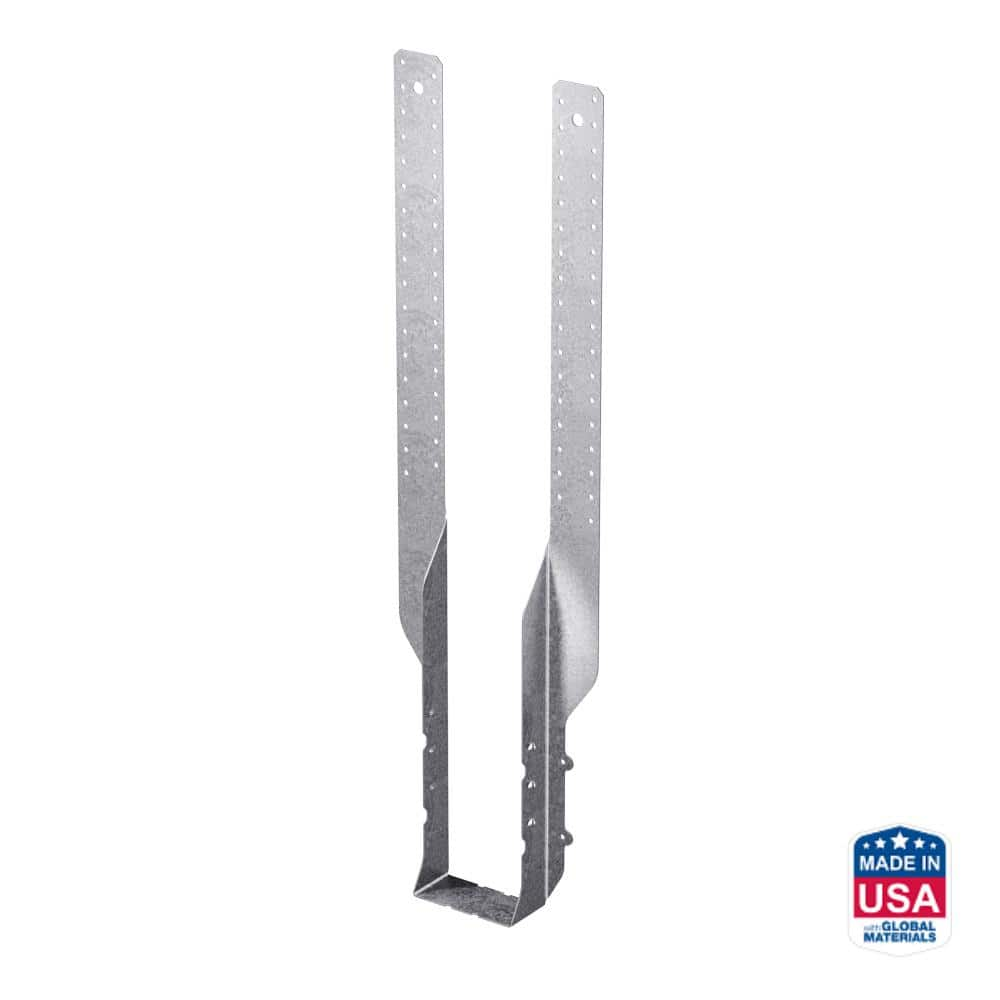

The Simpson THA426 Adjustable Truss Hanger is a versatile connector designed to support 4x floor trusses and beams. Featuring extra-long, field-formable straps, this hanger allows for precise height adjustability and provides the convenience of a top-flange installation. Its durable G90 galvanized coating ensures added corrosion resistance for long-lasting structural support.

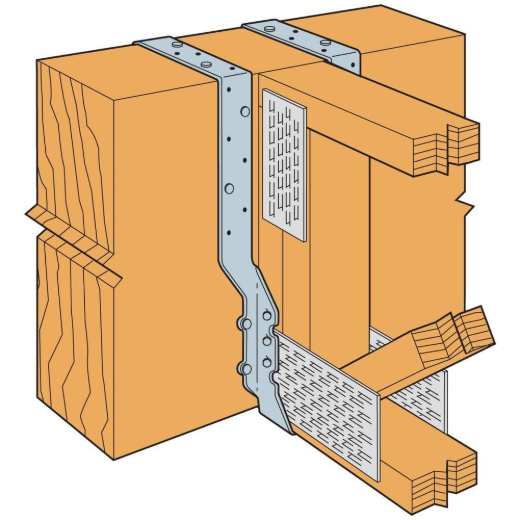

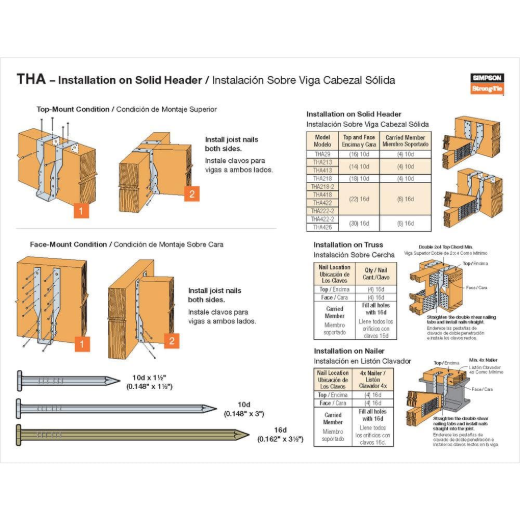

  • Field-adjustable for top-flange or face-mount installation
  • G90 Galvanized coating for corrosion resistance

Features

  • Extra-long straps allow for height adjustability
  • Dense nail pattern provides multiple installation options
Products specifications
Material 14-gauge steel
Finish G90 Galvanized
Height 26 inches
Seat Width 3-5/8 inches
Joist Size 4x floor truss
Top Fasteners (4) 0.162 inch x 3-1/2 inch Nails
Face Fasteners (4) 0.162 inch x 3-1/2 inch Nails
Carried Member Fasteners (6) 0.162 inch x 3-1/2 inch Nails
*
*
*
