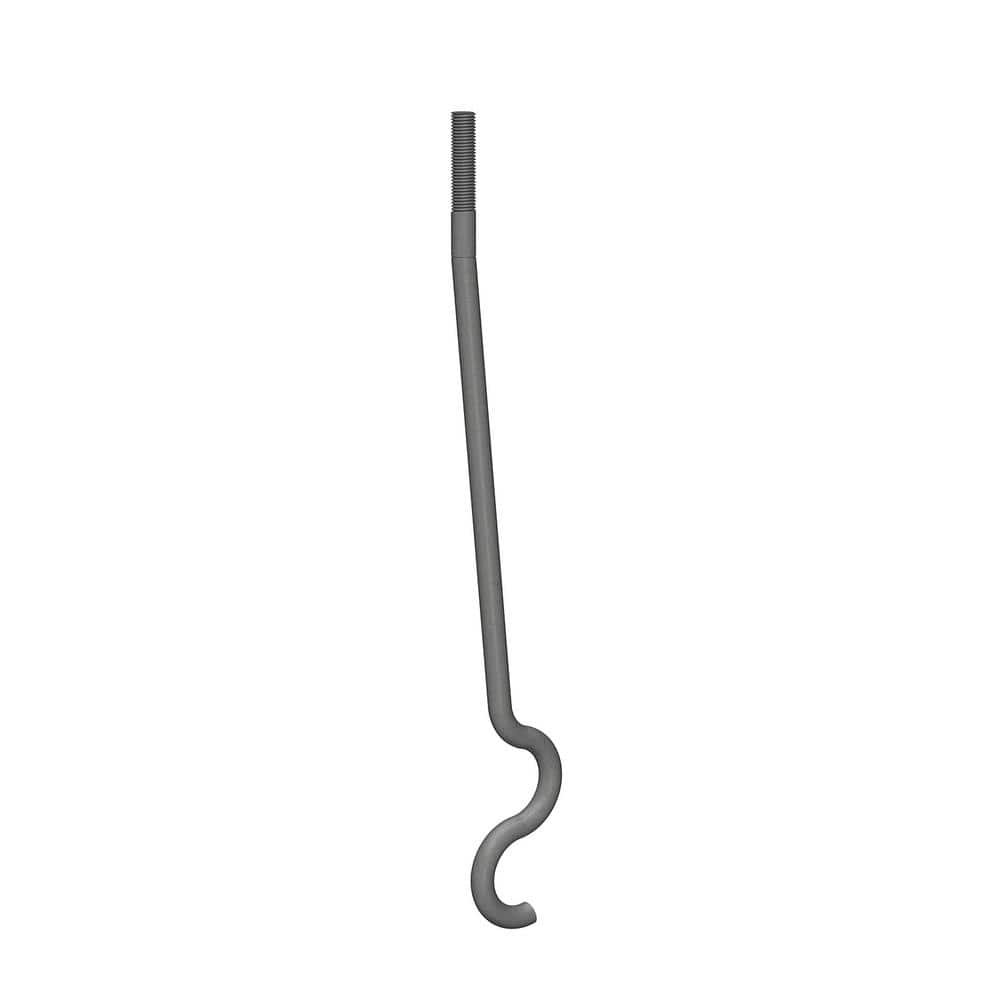

Simpson Anchor Bolt

Mfr.: Simpson Strong-Tie
Item #: I093709
Mfr. #: SSTB28-R
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $45.30
i h h

Description

The Simpson Strong-Tie SSTB anchor bolt is engineered for superior performance in critical anchoring applications, particularly for holdowns and Simpson Strong-Tie Strong-Wall shearwalls. Rigorous testing ensures its reliability and design load capacity in various common installations. This anchor bolt is code-listed by ICC-ES, providing assurance of its compliance with building standards for use in residential and commercial construction. Its robust design makes it suitable for both monolithic and two-pour concrete applications, offering flexibility for different project needs.

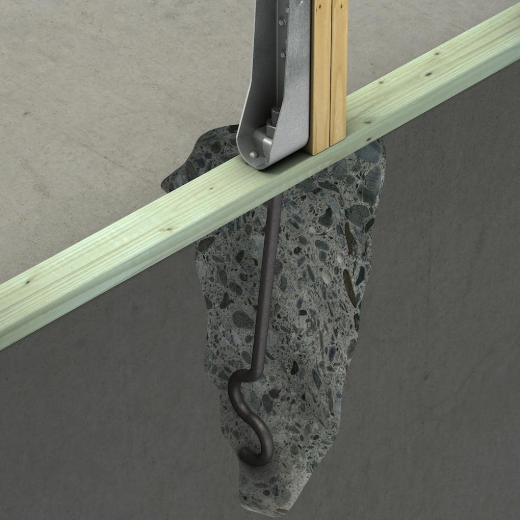

  • Designed for holdowns and shearwalls
  • Extensive load capacity testing
  • ICC-ES code-listed

Features

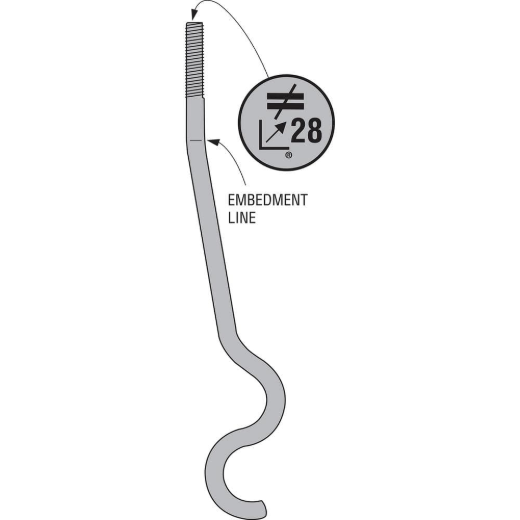

  • Identification on the bolt head indicates embedment angle and model for straightforward installation.
  • The offset angle is designed to minimize side bursting and provide adequate concrete cover.
  • Features a rolled thread for enhanced tensile capacity.

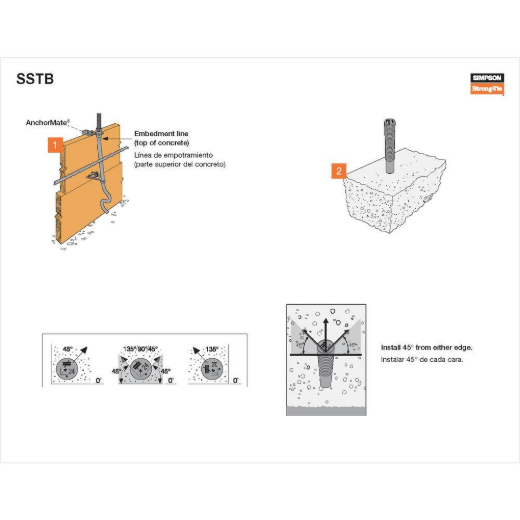

  • A stamped embedment line on the bolt aids in accurate installation.

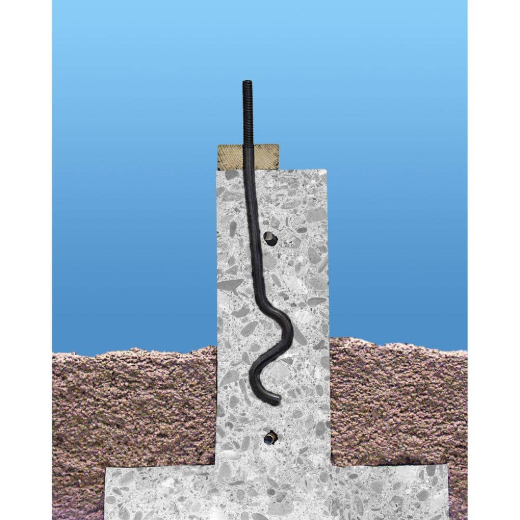

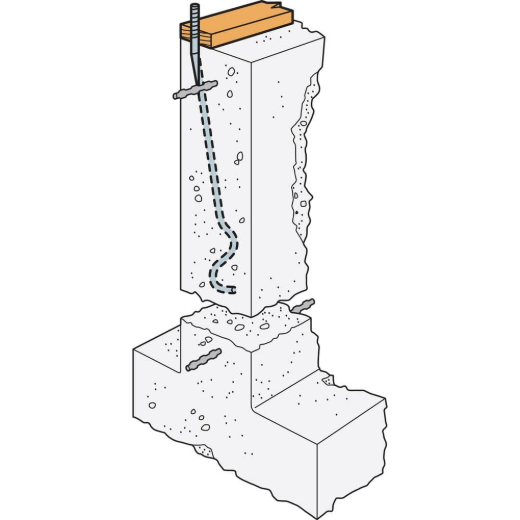

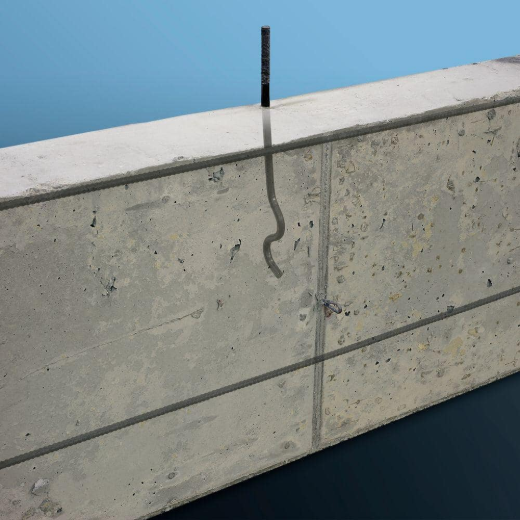

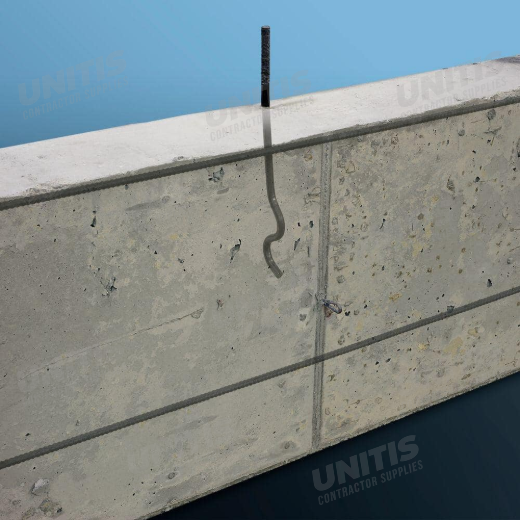

  • Suitable for both monolithic and two-pour concrete applications.

Includes

  • 1x Anchor Bolt
Products specifications
Diameter 7/8-in.
Length 29-7/8-in.
Thread Length 3-1/2-in.
Material ASTM F-1554, Grade 36
Finish Plain
Use Location Interior
*
*
*
