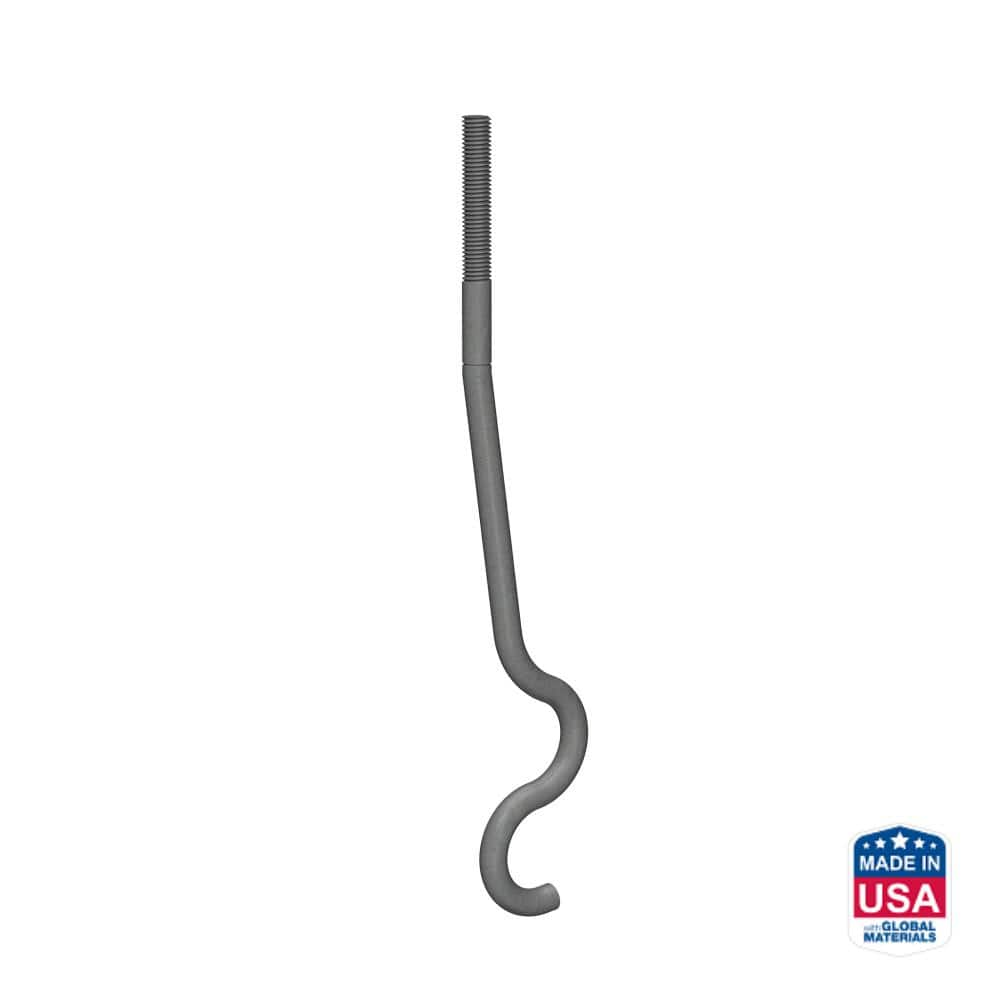

Simpson SSTB - 5/8" x 17-5/8" Stab Bolt - HDG

Mfr.: Simpson Strong-Tie
Item #: I093697
Mfr. #: SSTB16HDG-R
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $20.01
i h h

Description

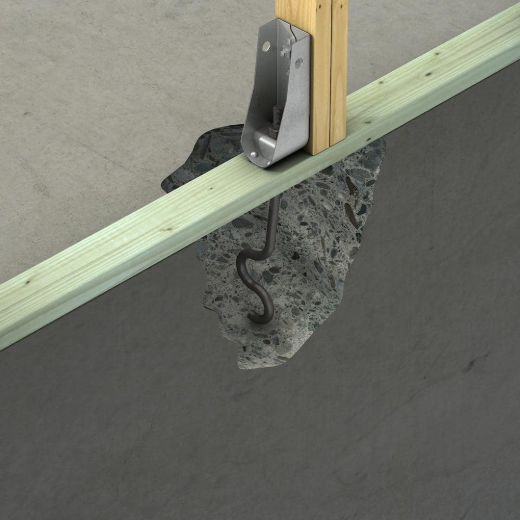

Engineered for maximum performance, the Simpson Strong-Tie SSTB16HDG-R Anchor Bolt is a crucial component for holdowns and Strong-Wall shearwalls. This hot-dip galvanized anchor bolt offers high tensile capacity and superior corrosion resistance, making it suitable for both interior and exterior applications. Its design ensures stability and integrity in various concrete applications, with extensive testing to confirm its load capacity and ICC-ES code listings for added assurance.
  • Hot-dip galvanized for enhanced corrosion resistance
  • High tensile capacity due to rolled threads
  • ICC-ES code listed for 2012, 2015, 2018, and 2021 IBC and IRC

Features

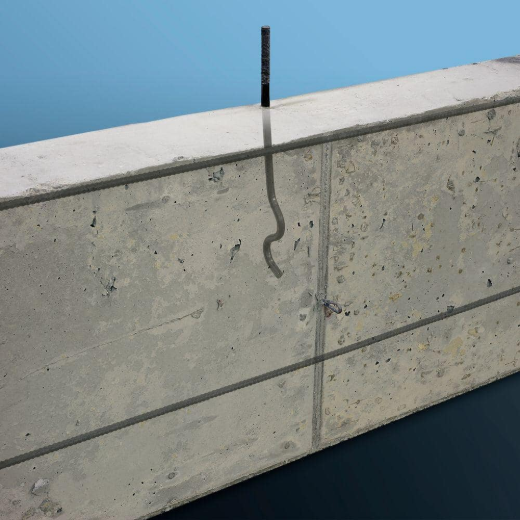

  • Offset angle reduces side bursting and provides more concrete cover.

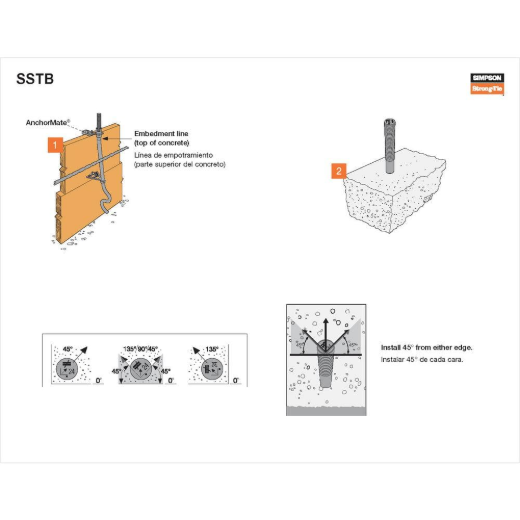

  • Stamped embedment line aids in installation.

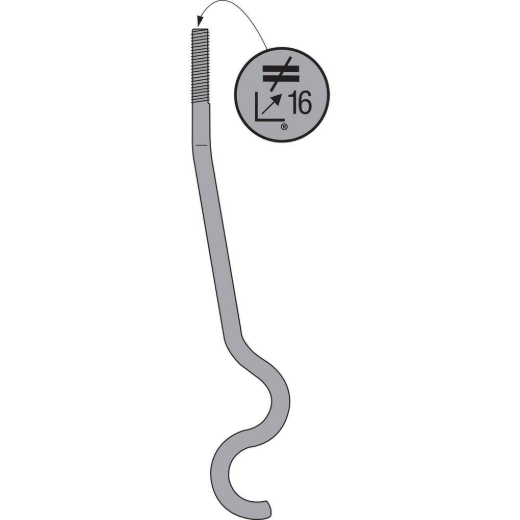

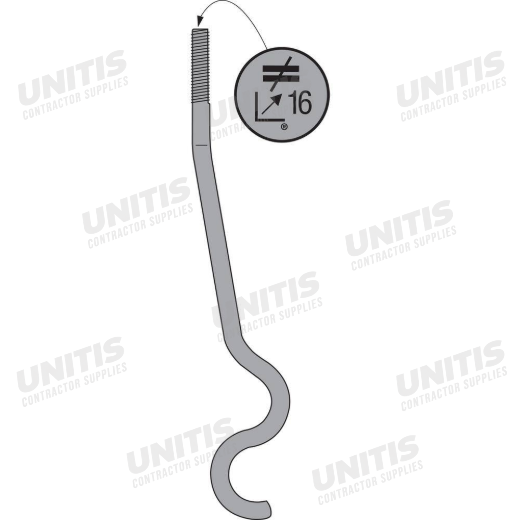

  • Identification on bolt head shows embedment angle and model.

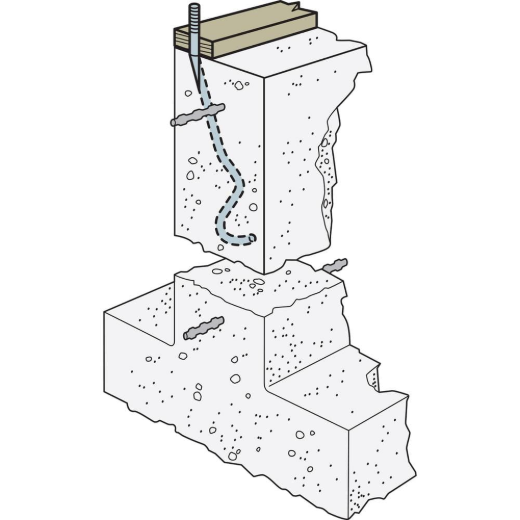

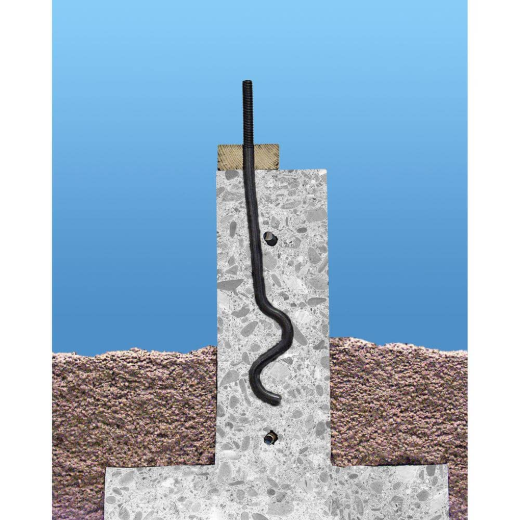

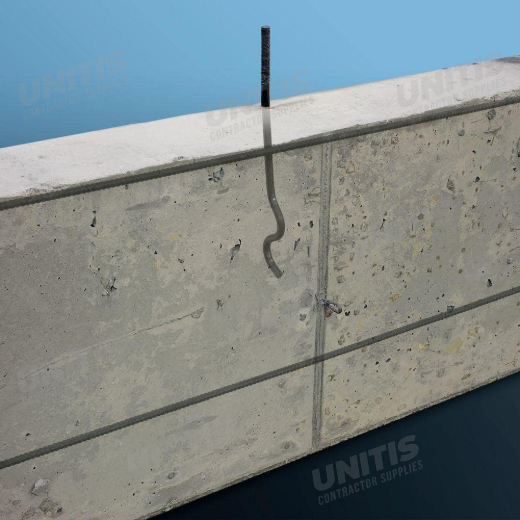

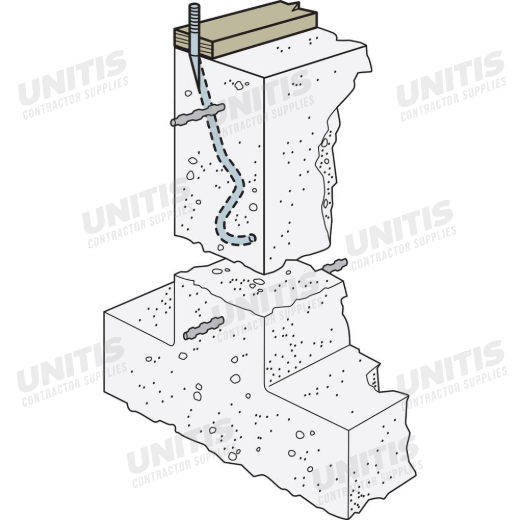

  • Suitable for monolithic and two-pour concrete applications.

Includes

  • 1x Hot-Dip Galvanized Anchor Bolt
Products specifications
Anchor Diameter 5/8 in
Anchor Type Cast-In-Place
Code Listing ASTM F1554 Grade 36; HDG per ASTM A153
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Head Style Threaded Stud
Material Carbon Steel
Overall Length 17-5/8 in
*
*
*
