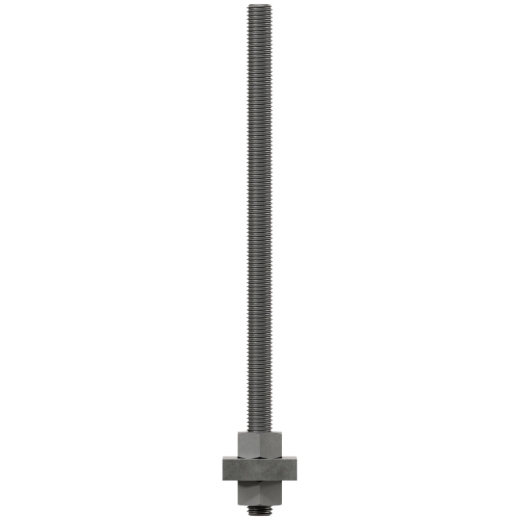

Simpson PAB 5/8" x 12" High-Strength Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093354
Mfr. #: PAB5H-12
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $39.98
i h h

Description

High-strength cast-in-place anchor bolt with plate washer and head stamp for easy identification. Ideal for high-tension-load applications such as rod systems and shearwalls.
  • 5/8 inch diameter, 12 inch length
  • High-strength steel (ASTM A449, Fu=120 ksi)
  • Pre-assembled with plate washer and two hex nuts

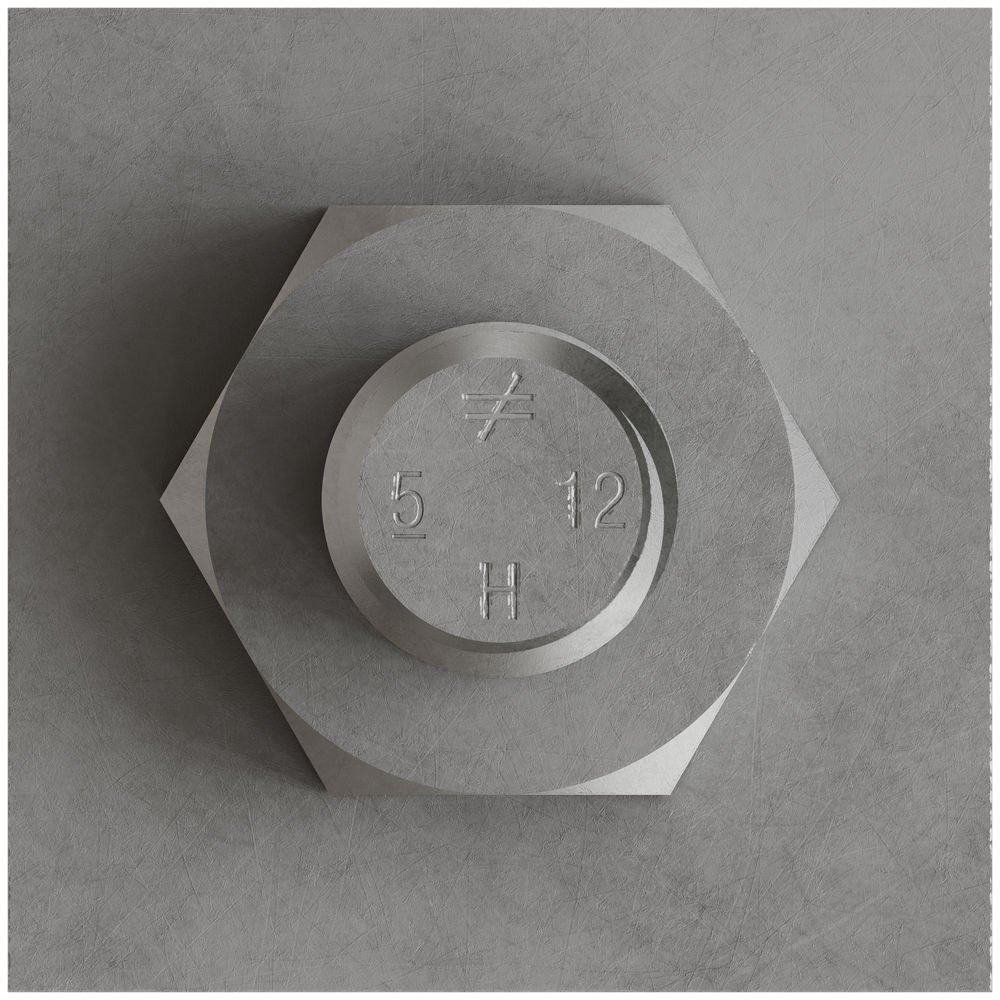

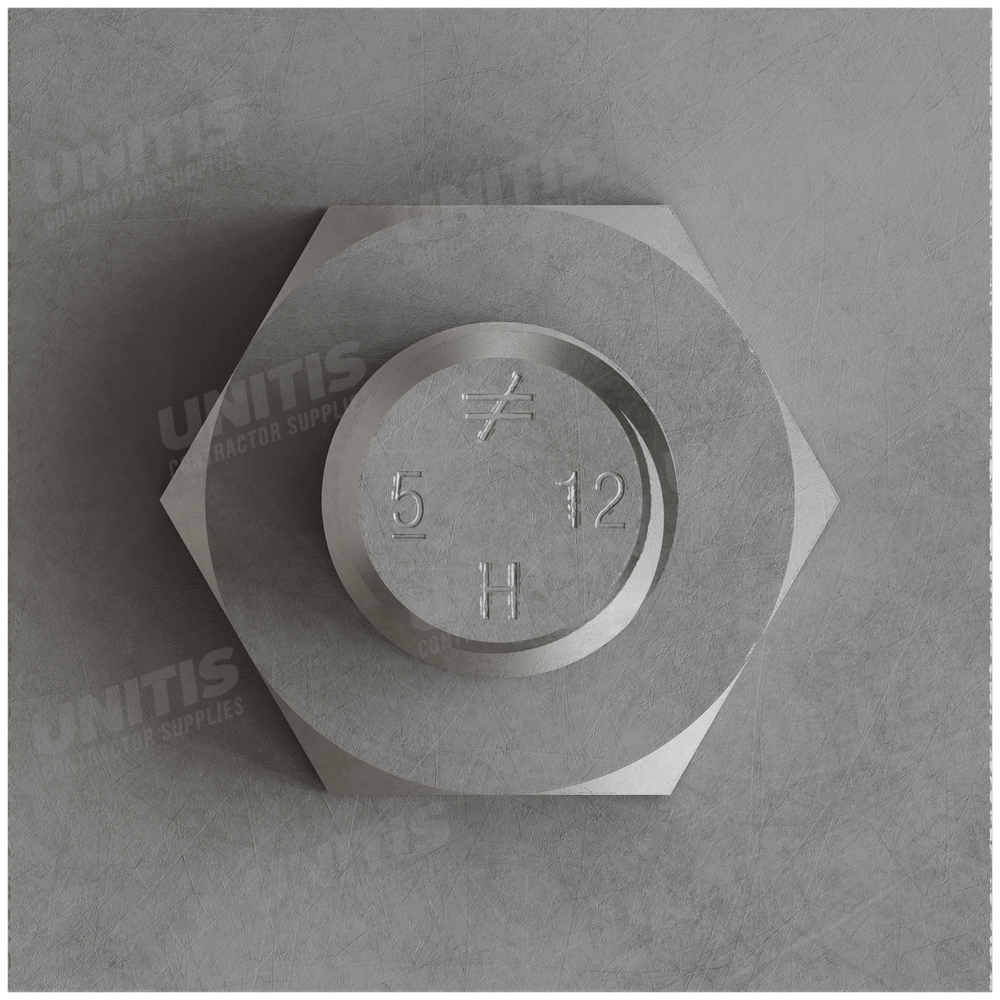

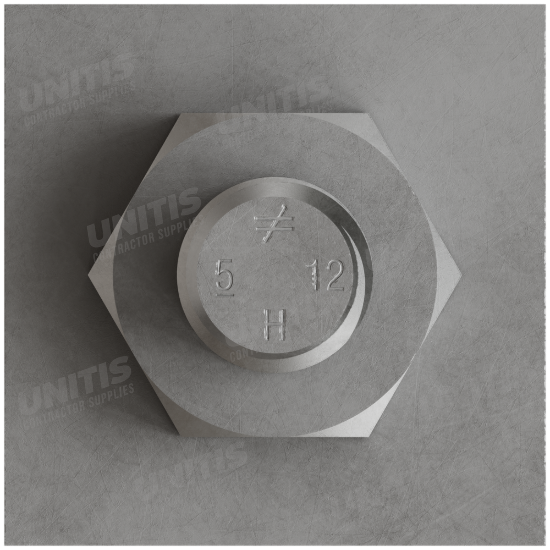

  • Head stamp with No Equal sign, diameter, and 'H' for high-strength

Features

  • Versatile cast-in-place anchor bolt
  • Plate washer at embedded end sandwiched between two fixed hex nuts
  • Head stamp for easy identification after pour
  • Available in diameters from 1/2 inch to 1-1/4 inch and lengths from 12 inch to 36 inch
  • High-strength steel up to 1 inch dia. meets ASTM A449

Includes

  • Pre-assembled anchor bolt with plate washer and hex nuts

Specifications


Diameter5/8 inchLength12 inch
MaterialHigh-Strength Steel ASTM A449FinishNone or HDG
Tensile Strength120 ksiModel NumberPAB5H-12
*
*
*
