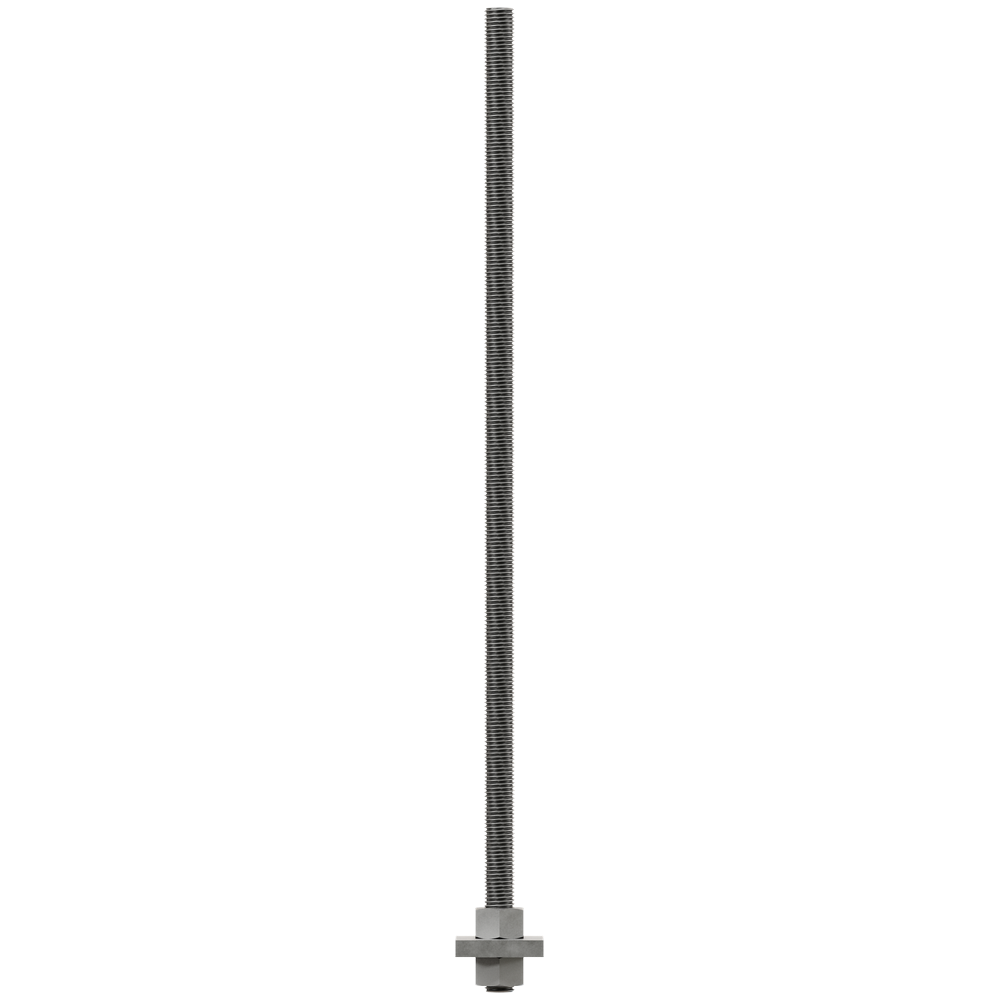

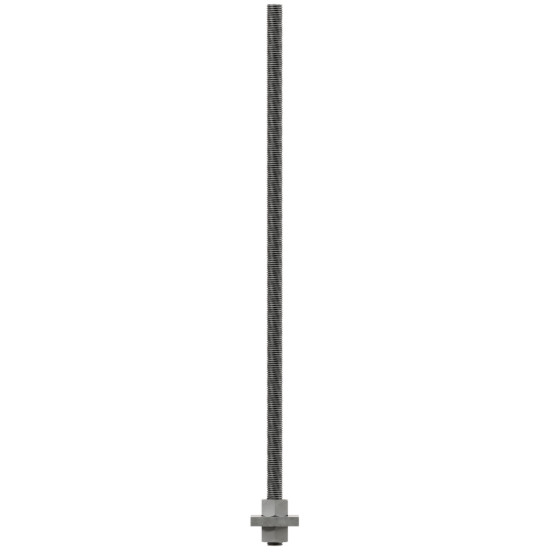

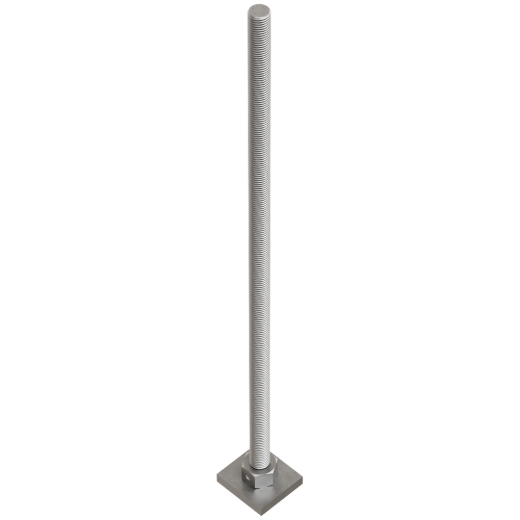

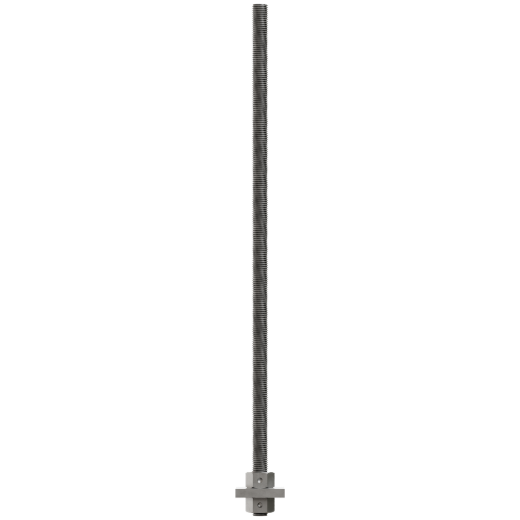

Simpson PAB 1-1/8" x 36" High-Strength Pre-Assembled Anchor Bolt w/ Washer

Mfr.: Simpson Strong-Tie
Item #: I093413
Mfr. #: PAB9H-36
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $158.36
i h h

Description

High-strength cast-in-place anchor bolt with plate washer, ideal for high-tension-load applications such as rod systems and shearwalls. Features head stamp with No Equal sign, diameter, and 'H' for high-strength.
  • Diameter: 1-1/8 inch
  • Length: 36 inch
  • High-strength steel (ASTM A193 B7 or F1554 Grade 105, Fu = 125 ksi)
  • Pre-assembled with plate washer and two hex nuts

Features

  • Available in diameters from 1/2 inch to 1-1/4 inch and lengths from 12 inch to 36 inch in 6 inch increments
  • Standard and high-strength steel options
  • Head stamp for easy identification after pour
  • Plate washer designed to develop bolt capacity

Includes

  • Pre-assembled anchor bolt with plate washer and hex nuts

Specifications


Diameter1-1/8 inchLength36 inch
MaterialHigh-strength steel (ASTM A193 B7 or F1554 Grade 1Tensile Strength125 ksi
FinishNone or HDGStandardsASTM A193 B7 or F1554 Grade 105
*
*
*
