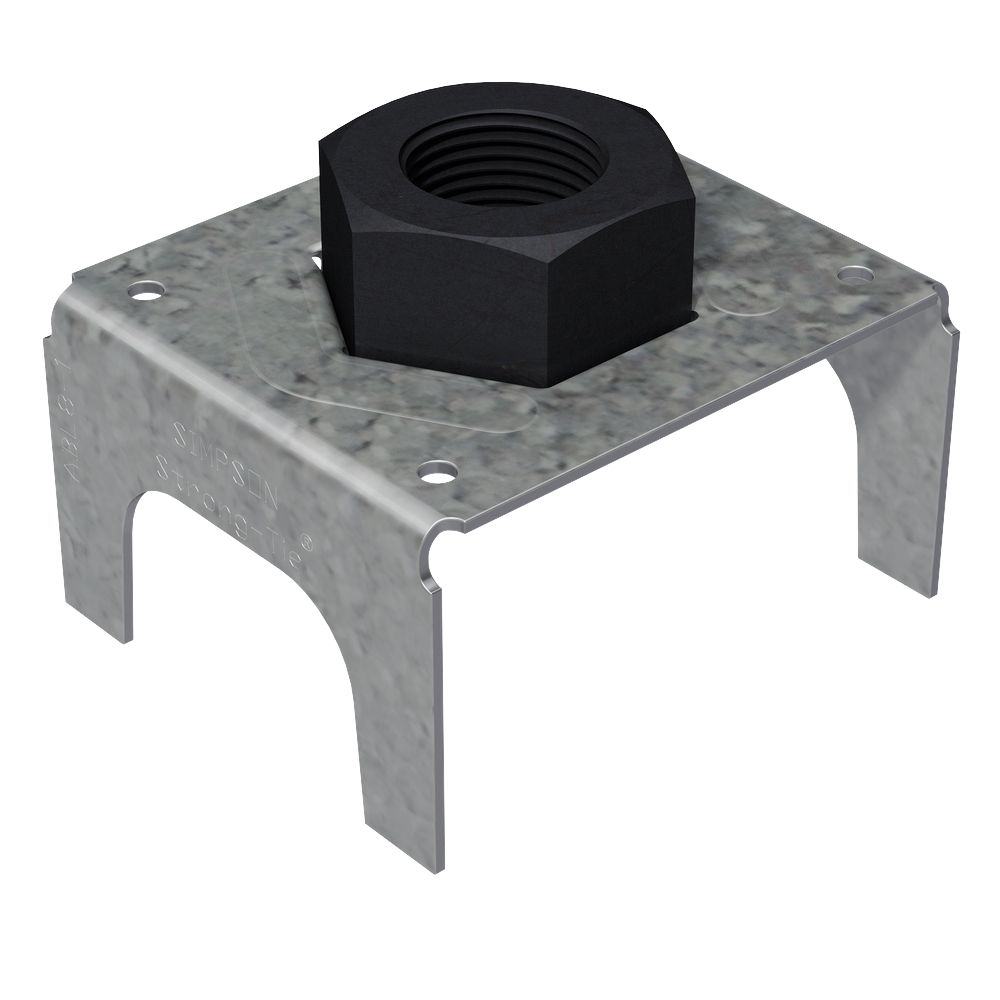

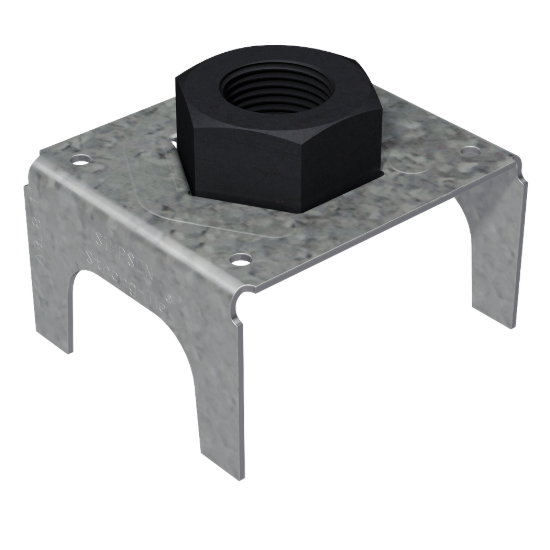

Simpson ABL Anchor Bolt Locator with 1" Nut

Mfr.: Simpson Strong-Tie
Item #: I092064
Mfr. #: ABL8-1
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $16.87
i h h

Description

The ABL enables the accurate and secure placement of anchor bolts on concrete-deck forms prior to concrete placement. The structural heavy-hex nut is attached to a pre-formed steel 'chair,' which eliminates the need for an additional nut on the bottom of the anchor bolt. Electro-galvanized versions available for HDG anchor bolts.
  • Designed for optimum concrete flow
  • Installed with nails or screws
  • Provides 1-in. standoff (clear cover) for anchor bolts
  • Available for anchor rod diameters from 1/2 in. to 1-1/4 in.

Features

  • Designed for optimum concrete flow
  • Installed with nails or screws
  • Provides 1-in. standoff (clear cover) for anchor bolts
  • Available for anchor rod diameters from 1/2 in. to 1-1/4 in.
  • Anchor bolt diameter: 1 in.
  • Heavy hex nut made from uncoated steel

Specifications


Anchor bolt diameter1 inchHeavy hex nut materialuncoated steel
*
*
*
