Simpson APHH - 6" x 10" Heavy Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091050
Mfr. #: APHH610
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $81.13
i h h

Description

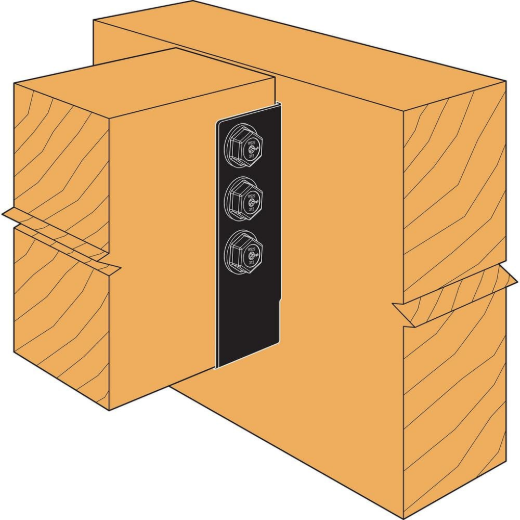

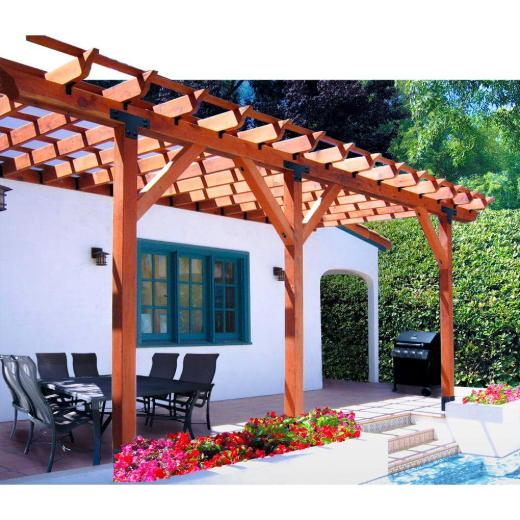

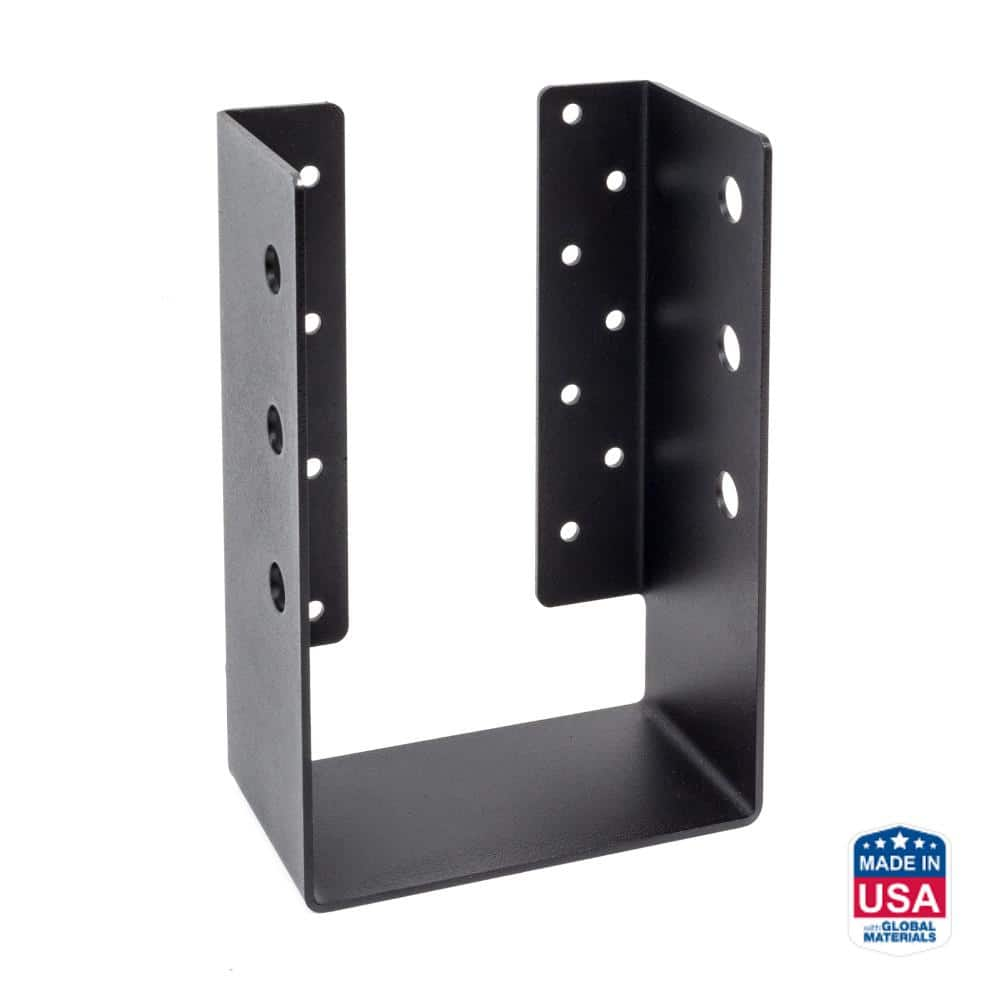

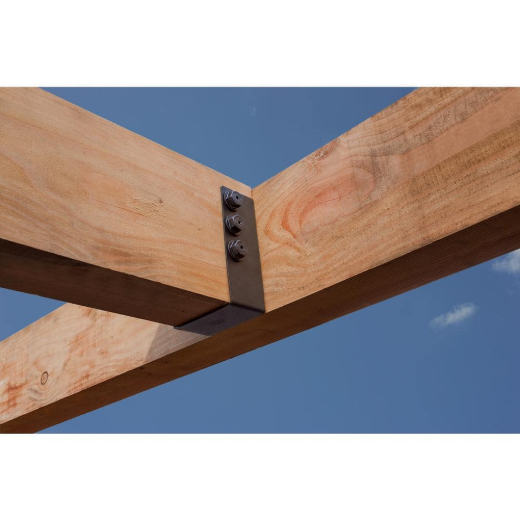

The Simpson Strong-Tie APHH610 is a decorative concealed-flange heavy joist hanger that belongs to the Outdoor Accents hardware line. It is designed to provide exceptional load-bearing support for connecting 6x10 or 6x12 beams to headers while maintaining a clean, professional aesthetic. Made from 12-gauge steel, this hanger features a ZMAX galvanized coating with a black powder finish for superior corrosion resistance in outdoor environments. Its concealed-flange design hides the attachment points, making it an ideal choice for high-end decks, pergolas, and patio covers.
  • Black powder-coat finish over ZMAX galvanization
  • Concealed-flange design for a professional look
  • High-strength 12-gauge steel construction

Features

  • Complements Mission and Avant Collection hardware
  • Designed for 6x10 or 6x12 nominal joist sizes
  • Straight-edge design for cleaner installations
  • Compatible with SDWS screws and STN22 washers

Includes

  • APHH610 Heavy Joist Hanger
  • Fasteners sold separately
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 6 in x 10 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange
Series APHH
Steel Gauge 12 ga
*
*
*
