  • Simpson Ap Heavy Hanger 6X10 Rough

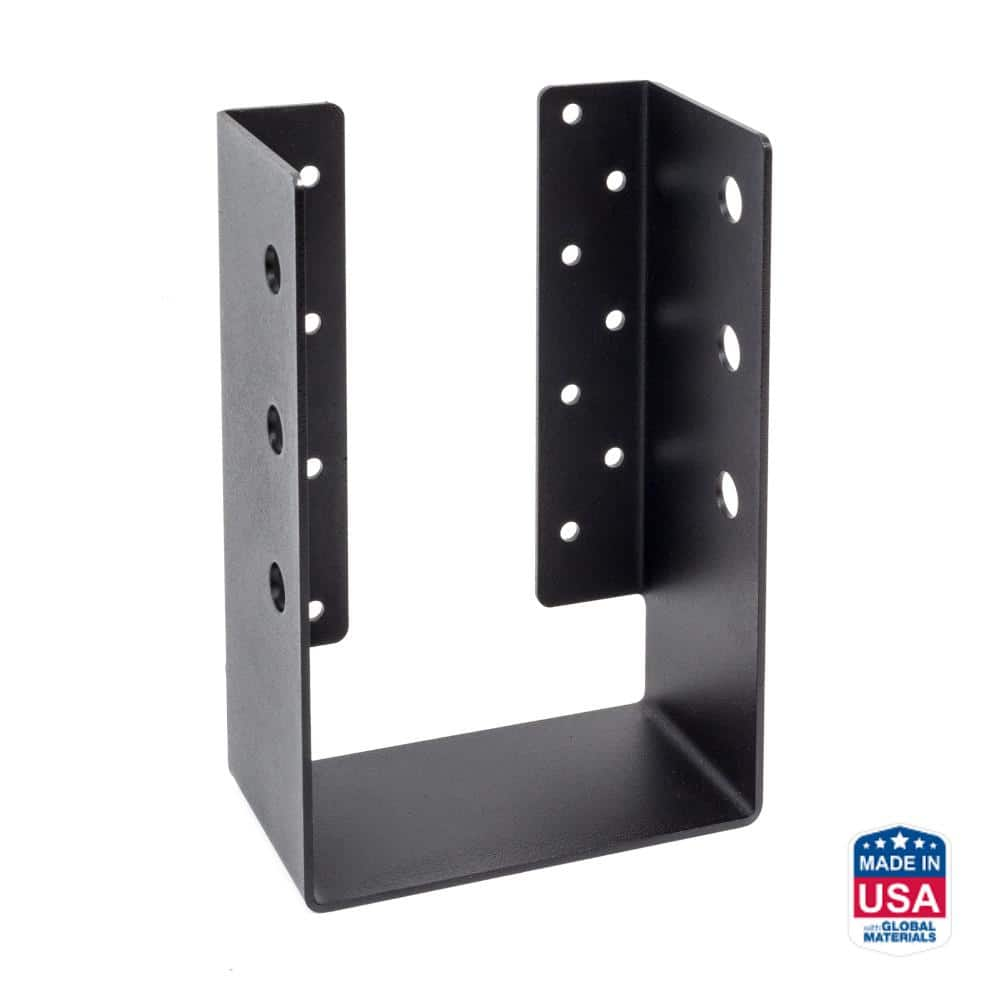

Simpson Ap Heavy Hanger 6X10 Rough

Mfr.: Simpson Strong-Tie
Item #: I091051
Mfr. #: APHH610R
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $81.13
i h h

Description

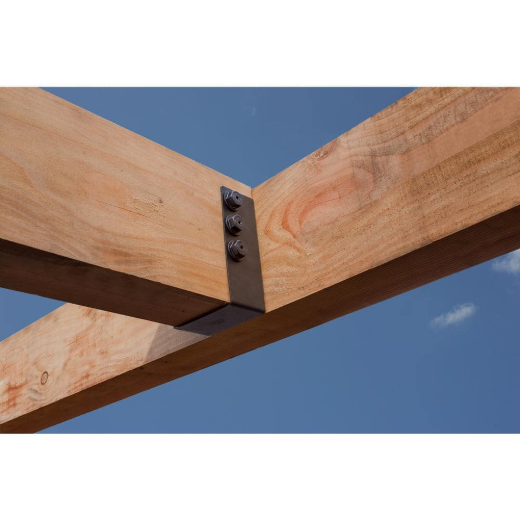

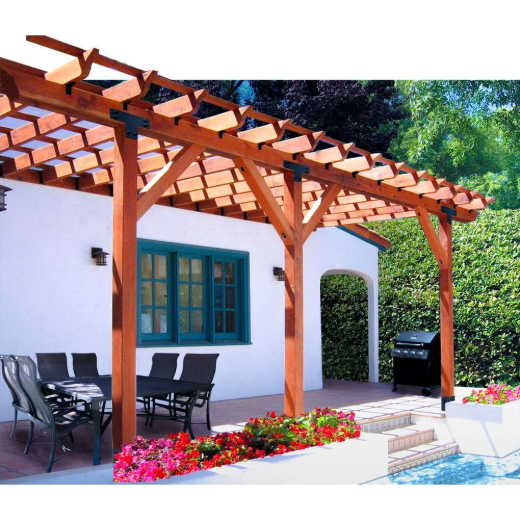

The Simpson Strong-Tie APHH610R is a high-strength, concealed-flange heavy joist hanger specifically designed for 6x10 rough-cut lumber in decorative outdoor structures. Part of the Outdoor Accents line, it provides a clean, professional finish for decks, pergolas, and patio covers by hiding the connector flanges inside the beam connection. This heavy-duty hanger combines structural reliability with a sleek aesthetic for premium wood construction projects.
  • Heavy-duty 12-gauge steel construction
  • ZMAX galvanization with black powder coat

Features

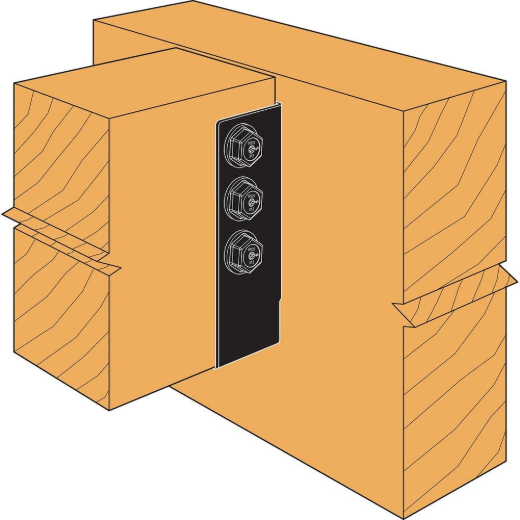

  • Concealed-flange design provides straight edges for a cleaner installation appearance.
  • Specifically sized for rough-cut timber dimensions rather than nominal lumber.
  • Compatible with Mission Collection and Avant Collection decorative hardware.

Includes

  • (1) APHH610R Heavy Joist Hanger
  • Note: Fasteners sold separately

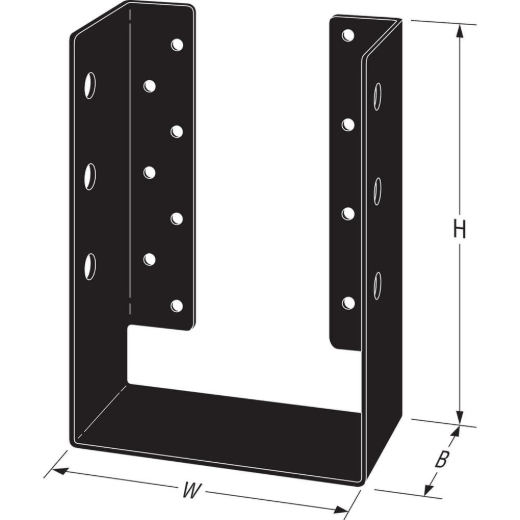

Products specifications
Model No. APHH610R
Material 12-Gauge Steel
Finish ZMAX, Black Powder Coat
Joist Size 6x10 Rough
Seat Width 6 inch
Height 8-1/4 inch
Header Fasteners (14) SDS25300 Screws
Joist Fasteners (6) SDWS22312DBB Screws
Hex Washers (6) STN22 Washers
Series Outdoor Accents
*
*
*
