Simpson Ap Light Hanger 2X4

Mfr.: Simpson Strong-Tie
Item #: I091056
Mfr. #: APLH24
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5.66
i h h

Description

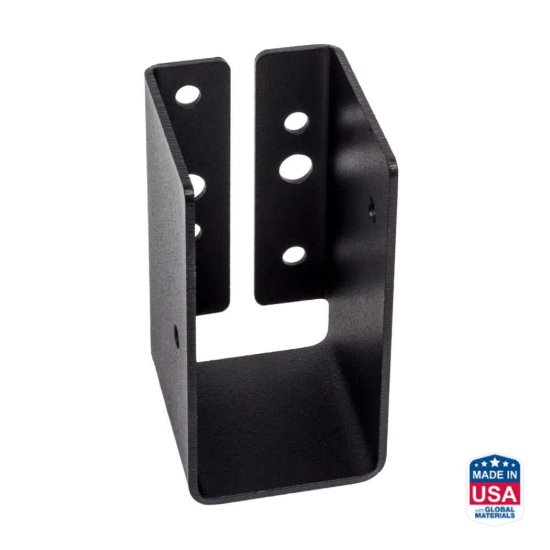

The Simpson Strong-Tie APLH24 is a decorative, light-duty joist hanger designed to provide both structural strength and a polished aesthetic for outdoor living structures. This concealed-flange hanger connects 2x4 joists to beams with a clean, professional look that hides the flanges from view. Part of the Outdoor Accents line, it is specifically engineered to resist corrosion in exterior environments while complementing modern design styles like the Mission and Avant collections.
  • ZMAX Galvanized with Black Powder Coat
  • Concealed Flange for Clean Installation

Features

  • Manufactured from heavy-duty 14-gauge steel for reliable structural support.
  • Designed for easy installation using Outdoor Accents SD connector screws.

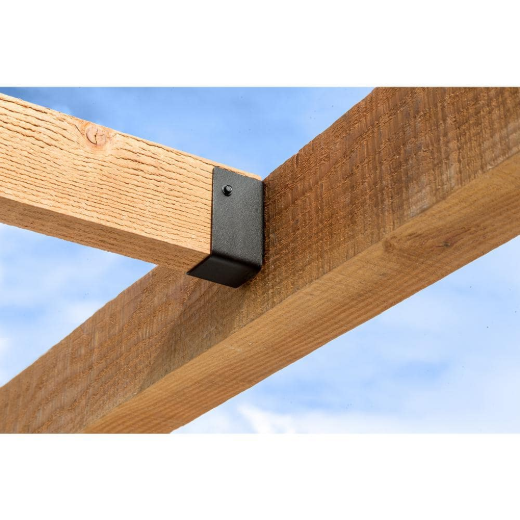

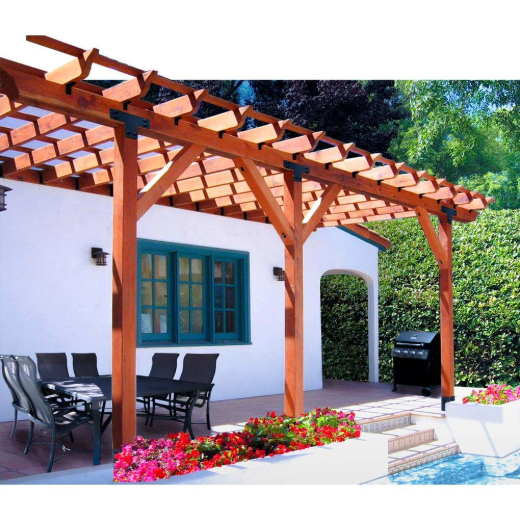

  • Features straight edges and hidden flanges to enhance the beauty of pergolas and decks.

Includes

  • (1) APLH24 Concealed-Flange Light Joist Hanger

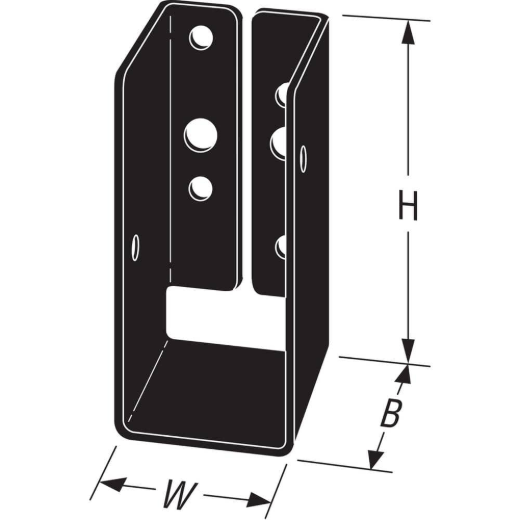

Products specifications
Material 14-Gauge Carbon Steel
Finish ZMAX and Black Powder Coat
Joist Size 2x4 Nominal
Seat Width 1-9/16 inch
Hanger Height 3-5/16 inch
Product Series Outdoor Accents
Required Fasteners (6) SD10112DBB Screws (Sold Separately)
*
*
*
