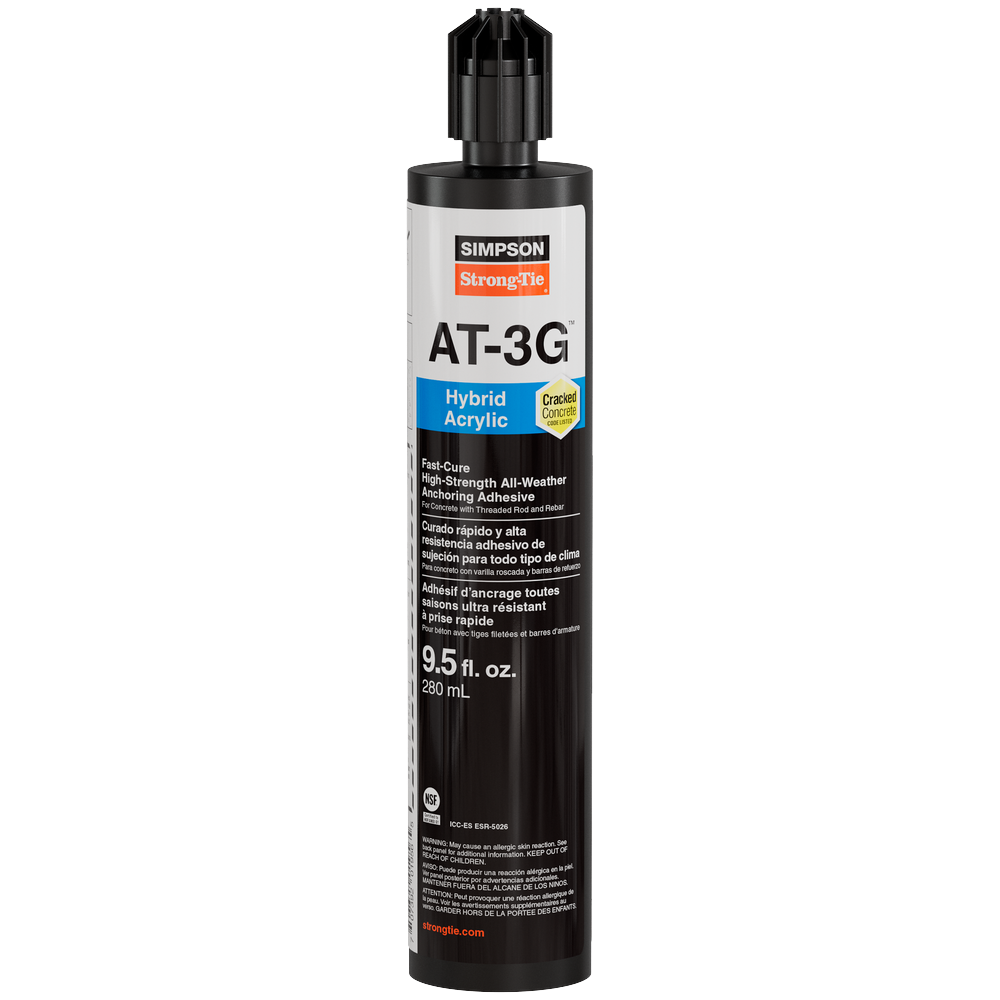

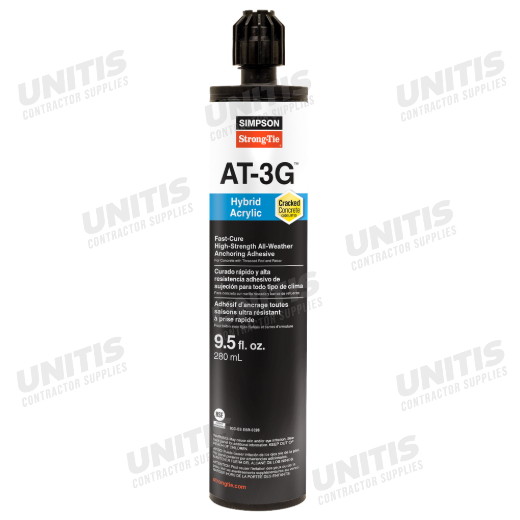

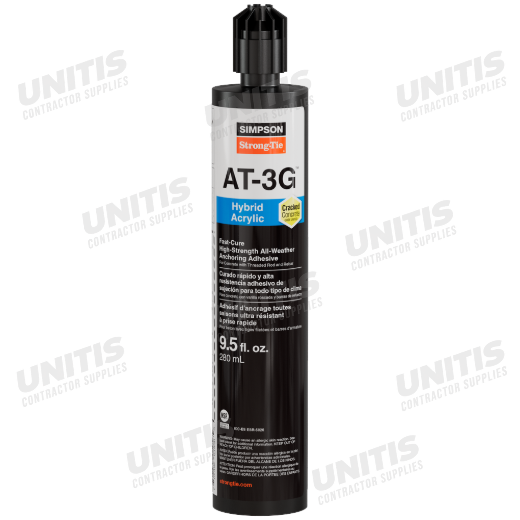

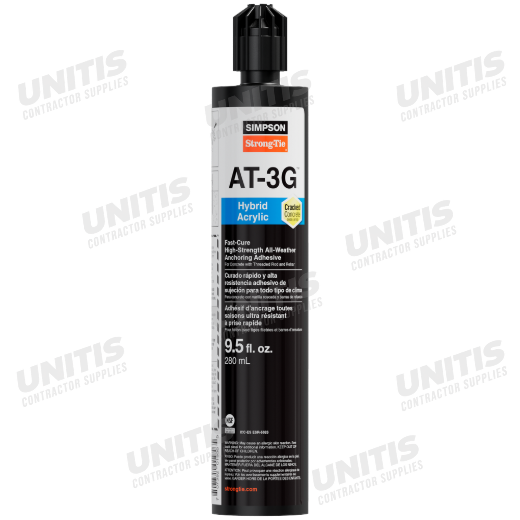

Simpson AT-3G 9.5-oz. High-Strength Acrylic Anchoring Adhesive Cartridge w/ Nozzle

Mfr.: Simpson Strong-Tie
Item #: I054722
Mfr. #: AT3G10
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $33.46
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

AT-3G is a hybrid, acrylic-based adhesive for anchoring threaded rod and rebar into cracked and uncracked concrete. Ideal for cold weather and wet concrete applications, it dispenses easily and offers fast curing.
  • Excellent for cold weather or fast cure applications
  • Conventional blow-brush-blow hole cleaning
  • Base material installation down to 23F (-5C)

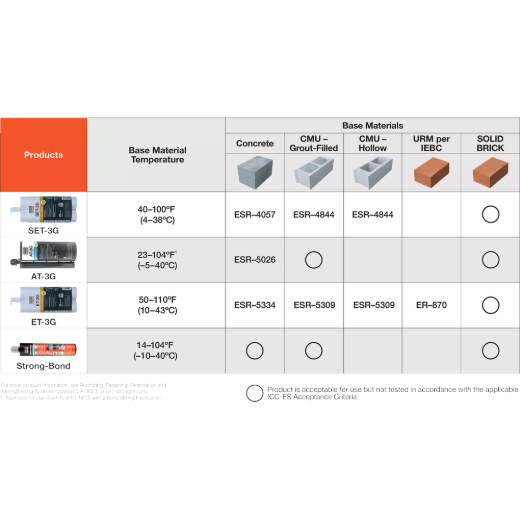

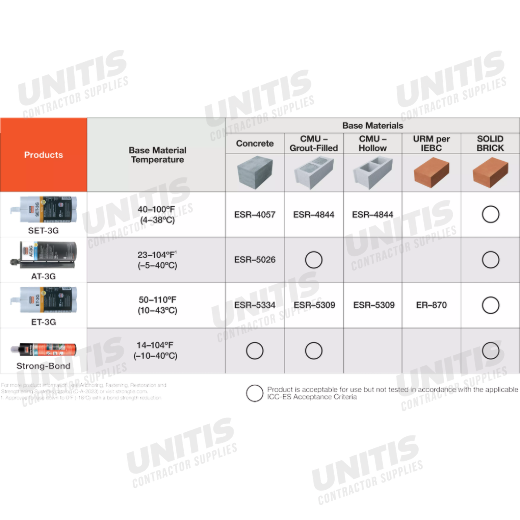

  • ICC-ES AC308 recognized for threaded rod and rebar

Features

  • Excellent for use in cold weather conditions or applications where fast cure is required
  • Recognized per ICC-ES AC308 for threaded rod and rebar anchoring
  • Conventional blow-brush-blow hole cleaning technique using a wire brush
  • Base material installation temperatures down to 23F (-5C)

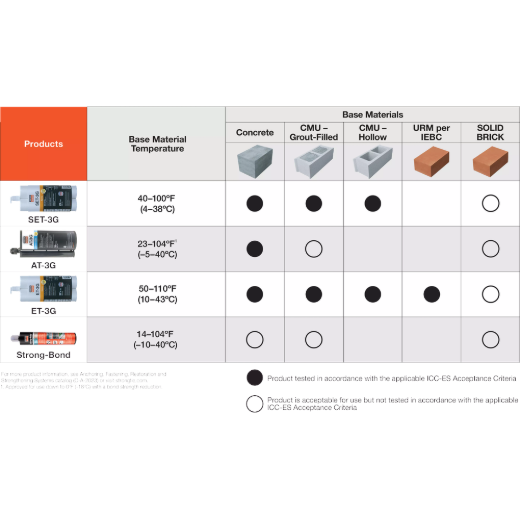

  • Use in grout-filled CMU construction

Includes

  • AMN19Q nozzle included with each cartridge

Specifications


ColorGrayUsage Temperature23 degF (-5 degC) to 0 degF (-18 degC) with reductions
Mixing Ratio10:1 hybrid-acrylicStorage Conditions41 degF (5 degC) and 77 degF (25 degC)
Shelf Life18 monthsVOC41 g/L
Gel Time at 23F50 minCure Time at 23F5 hrs
Gel Time at 32F25 minCure Time at 32F3.5 hrs
Gel Time at 41F15 minCure Time at 41F2 hrs
Gel Time at 50F10 minCure Time at 50F1 hr
Gel Time at 59F6 minCure Time at 59F40 min
Gel Time at 68F2 min
*
*
*
