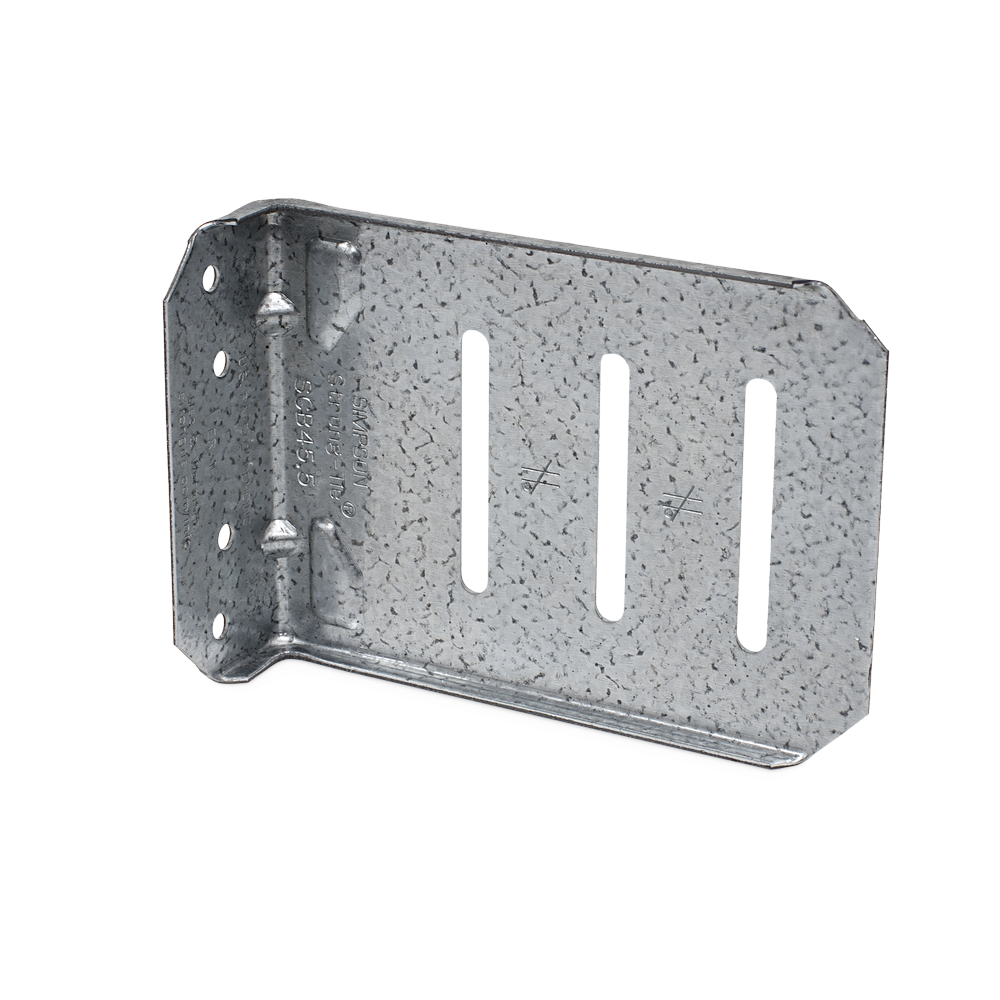

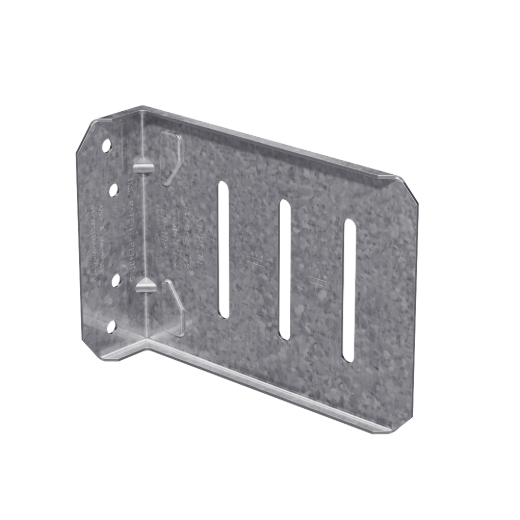

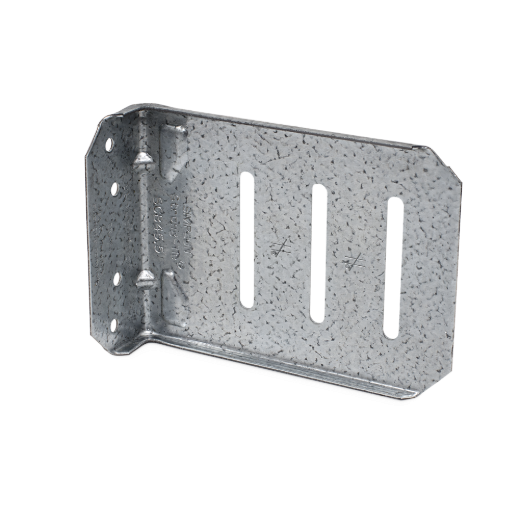

Simpson SCB 9-1/2" 16 ga. Bypass Framing Slide-Clip Connector w/ Screws - 25/box

Mfr.: Simpson Strong-Tie
Item #: I093639
Mfr. #: SCB49.5-KT
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $382.27
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Tie SCB slide-clip connector is a time-saving, high-performance slide-clip connector for bypass framing applications that simplifies design and detailing for the designer and reduces field labor and material costs. Providing allowable anchorage loads for these connectors - with powder-actuated pins, screws, welds or Simpson Strong-Tie Titen Turbo concrete screws - eliminates the need to design this anchorage. For designs that have typically required two parts to accommodate large stand-offs, the SCB can take their place, thereby reducing field labor. The connector is manufactured in different lengths to accommodate a variety of stand-off conditions and steel stud sizes.
  • Provides a full 1 in. of both upward and downward movement
  • The precision-manufactured shouldered screws provided with the SCB connector are designed to prevent overdriving and to ensure the clip functions properly
  • Strategically placed stiffeners, embossments and anchor holes maximize connector performance
  • Simpson Strong-Tie No-Equal stamps mark the center of the slots to help ensure correct shouldered-screw placement

Features

  • Provides a full 1 in. of both upward and downward movement
  • The precision-manufactured shouldered screws provided with the SCB connector are designed to prevent overdriving and to ensure the clip functions properly
  • Strategically placed stiffeners, embossments and anchor holes maximize connector performance
  • Simpson Strong-Tie No-Equal stamps mark the center of the slots to help ensure correct shouldered-screw placement
  • Length: 9-1/2 in.
  • Made from 54 mil (16 ga.) steel

Specifications


Length9-1/2 inchMaterial54 mil (16 ga.) steel
Products specifications
Width 9 1/2 inch, 9 1/2 inch
*
*
*
