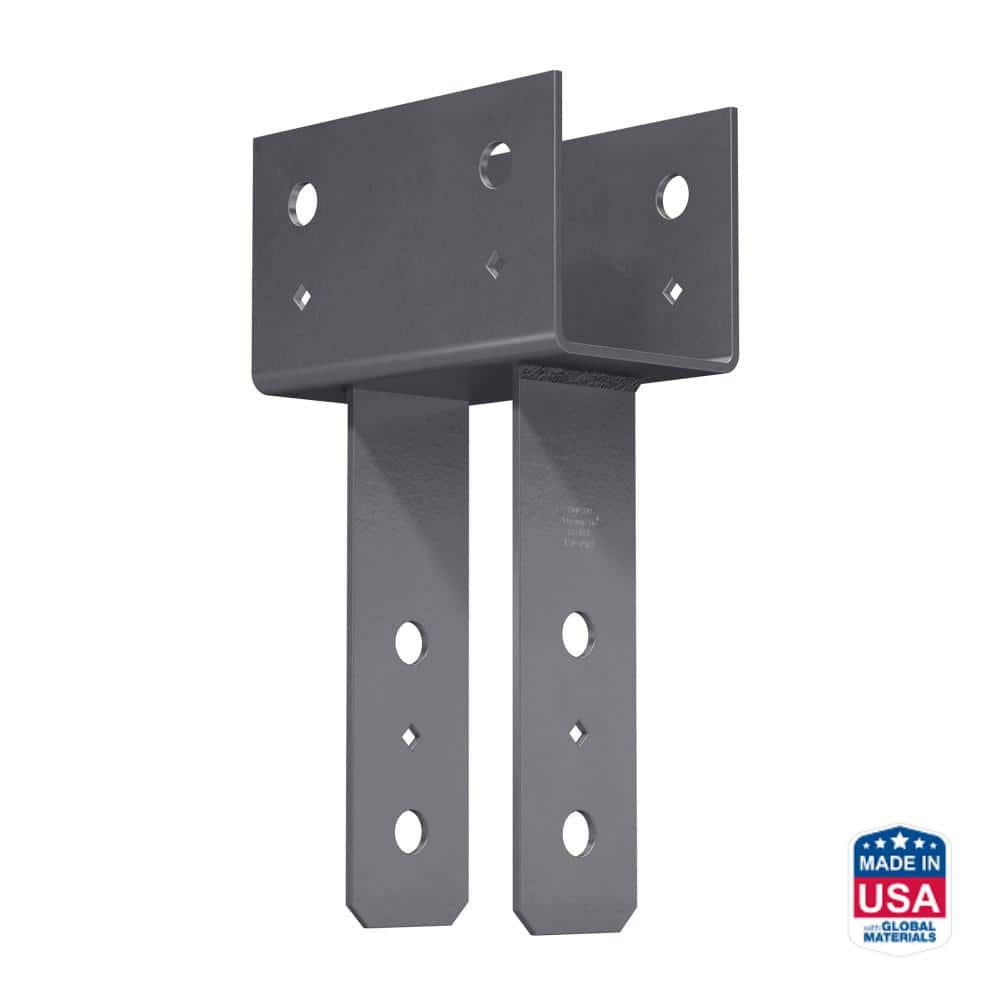

Simpson CC - Column Cap for 4x Beam, 4x Post HDG

Mfr.: Simpson Strong-Tie
Item #: I092126
Mfr. #: CC44HDG
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $144.87
i h h

Description

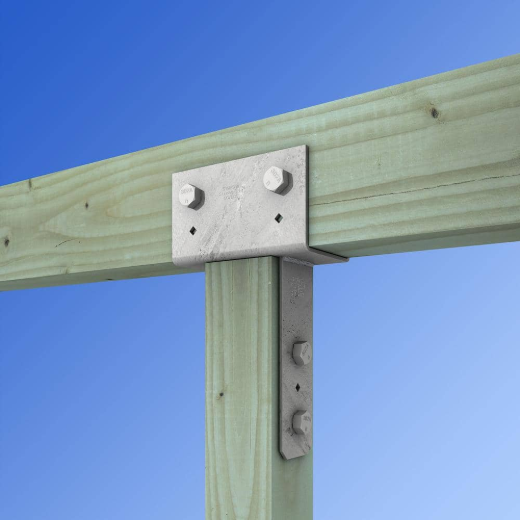

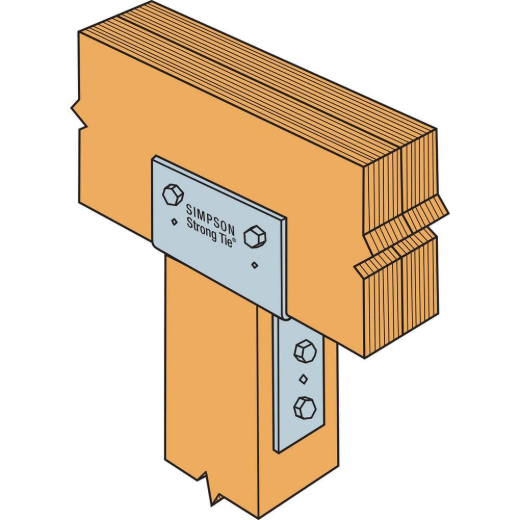

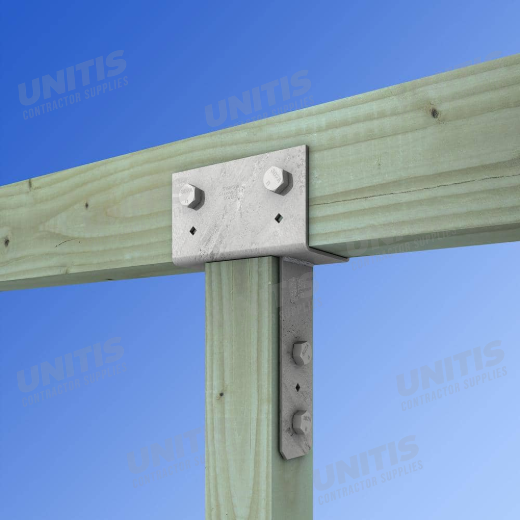

The Simpson CC44HDG Column Cap is engineered to provide a robust and reliable connection between 4x beams and 4x posts in wood construction. Featuring a hot-dip galvanized finish, it offers enhanced corrosion resistance for outdoor projects, ensuring long-term durability and structural integrity. The design includes an extended seat that provides additional bearing surface area to distribute the load from the beam, effectively supporting the connection.
  • Provides strong column-to-beam connection
  • Hot-dip galvanized finish for corrosion resistance

Features

  • Extended column seat increases bearing area to better distribute loads
  • Features certified welds for enhanced strength and earthquake or wind load performance

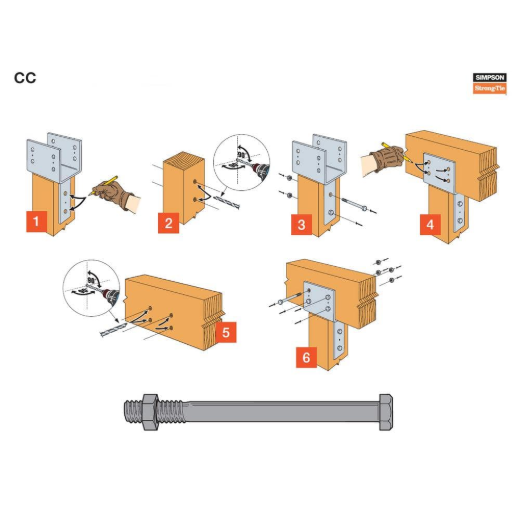

  • Includes diamond holes for temporary fastening during installation
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-2604
Connector Type Column Cap
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x
Series CC
*
*
*
