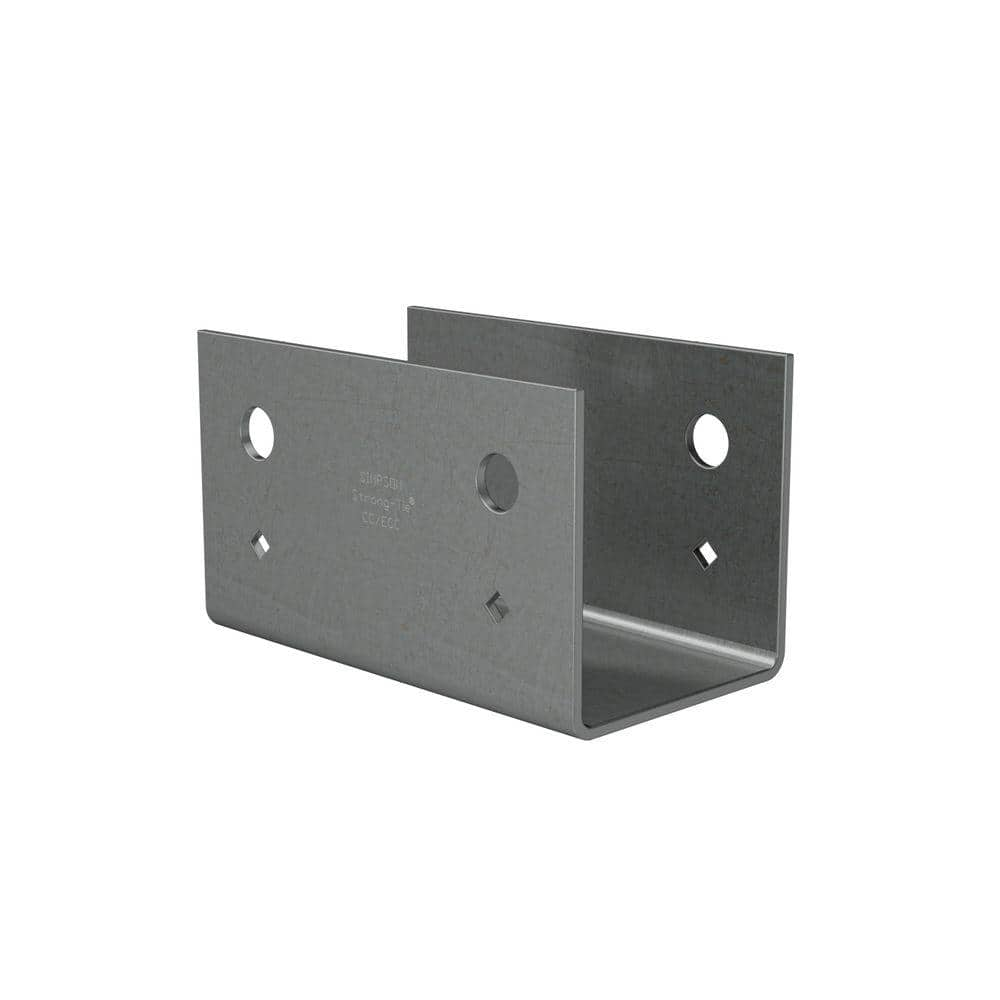

Simpson CCO4 Column Cap

Mfr.: Simpson Strong-Tie
Item #: I092283
Mfr. #: CCO4
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $64.11
i h h

Description

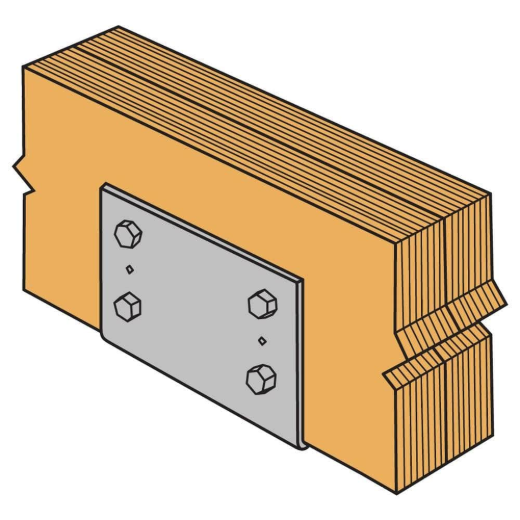

The Simpson CCO4 Column Cap is engineered to provide strong and stable column-to-beam connections. Its innovative strapless, leg-free design allows for seamless field-welded attachments to steel columns and posts, simplifying installation. The cap features an extended seat that provides a larger bearing surface, ensuring even load distribution from the beam and enhancing the overall stability and durability of the connection. This makes it an ideal component for building safe and code-compliant structures.
  • Strong Column-to-Beam Connection
  • Field-Weldable to Steel Columns
  • Enhanced Load Distribution

Features

  • Designed for 4x beams.
  • Made from heavy-gauge steel for durability.
  • Uplift loads increased for earthquake or wind loading.
  • Bolt spacing meets NDS code requirements.
  • Diamond holes for temporary fastening.

Includes

  • 1x Simpson Strong-Tie CCO4 Column Cap
Products specifications
Beam size 4x
Height 4 inch
Length 7 inch
Material Heavy Gauge Steel
Thickness 7 Gauge
Width Beam 3-1/2 inch
Finish No coating (some models HDG)
*
*
*
