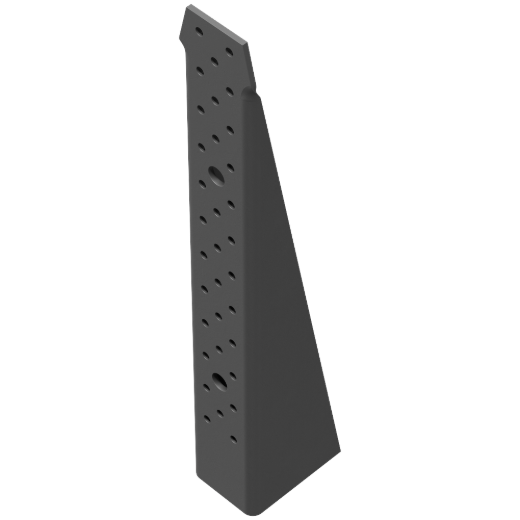

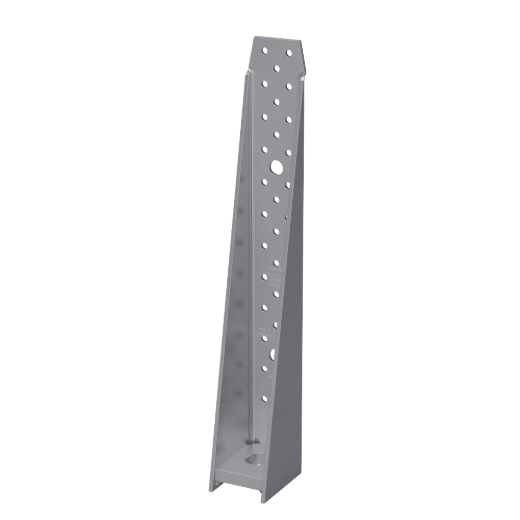

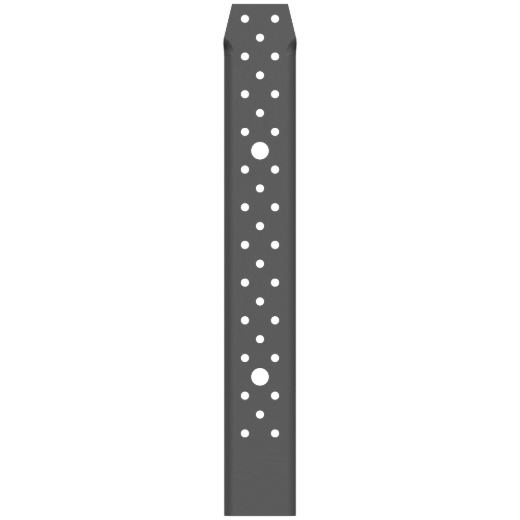

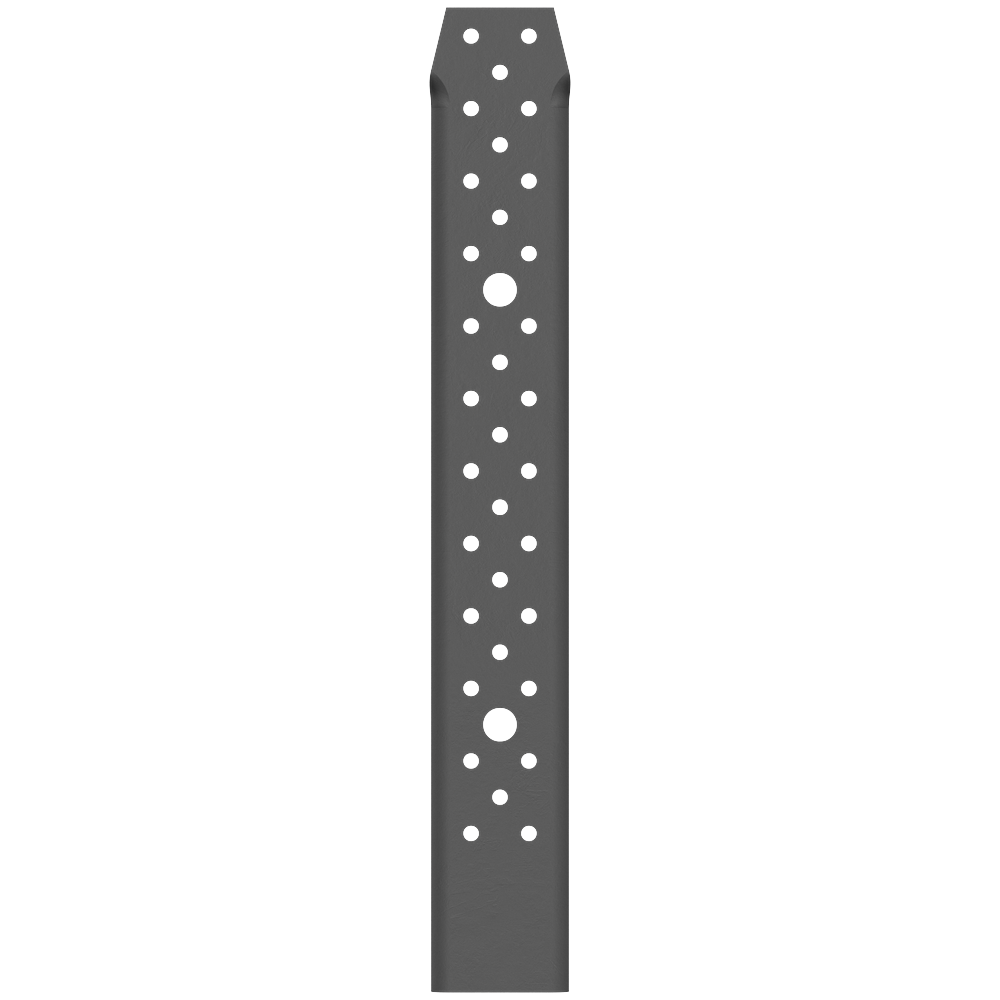

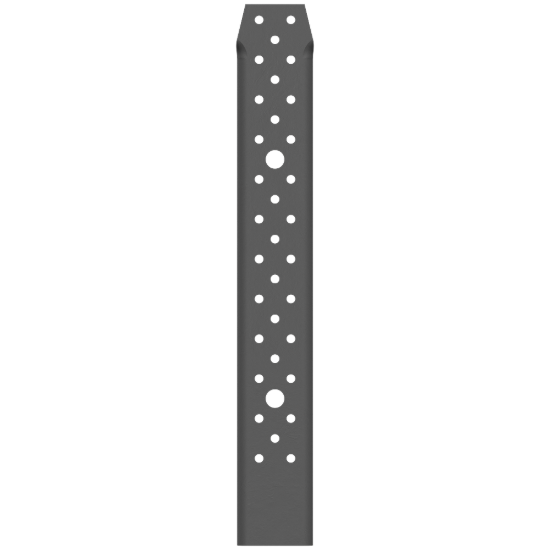

Simpson S/HDS 17" Light Gauge Steel Holdown

Mfr.: Simpson Strong-Tie
Item #: I093618
Mfr. #: S/HD15S
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $123.29
i h h

Description

The S/HDS is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications. The holdown features a unique seat that greatly minimizes deflection under load. The S/HDS has been designed to utilize fewer fasteners and reduce installation time.
  • Designed for use with cold-formed steel framing and installation with screws
  • Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
  • Features a unique seat that greatly minimizes deflection under load
  • Height: 17 in.
  • Width: 2-5/16 in.
  • Made from 171 mil (7 ga.) steel

Features

  • The S/HDS is designed for use with cold-formed steel framing and installation with screws
  • Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
  • Features a unique seat that greatly minimizes deflection under load
  • Height: 17 in.
  • Width: 2-5/16 in.
  • Made from 171 mil (7 ga.) steel

Specifications


Height17 inchWidth2-5/16 inch
Material171 mil (7 ga.) steel
*
*
*
