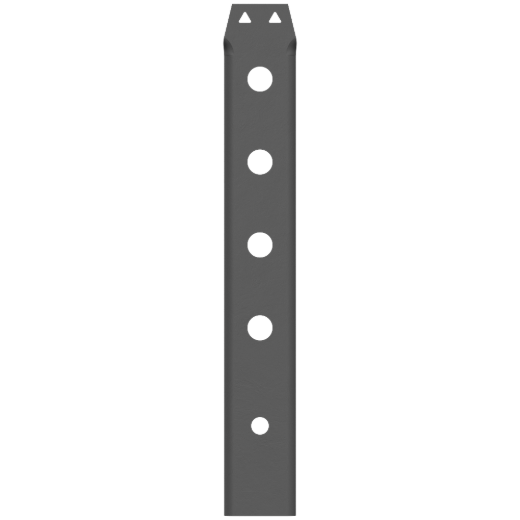

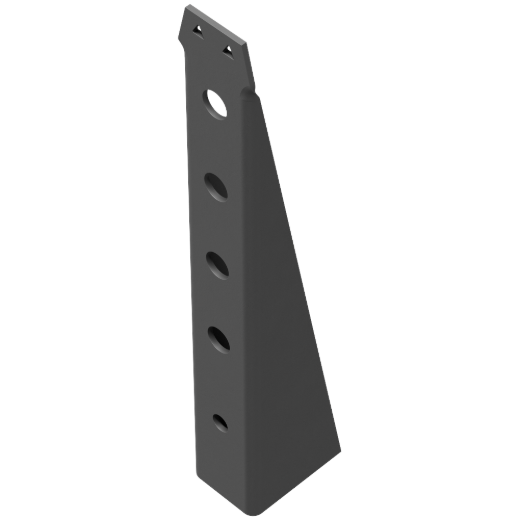

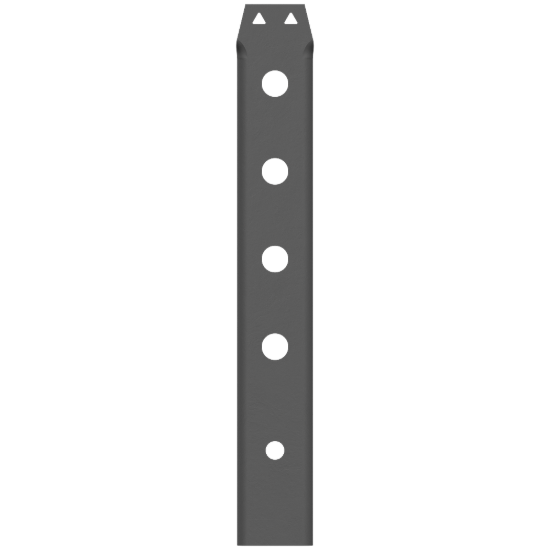

Simpson S/HDB 17" Light Steel Bolted Holdown

Mfr.: Simpson Strong-Tie
Item #: I093617
Mfr. #: S/HD15B
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $123.29
i h h

Description

The Simpson Strong-Tie S/HDB is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications and is ideal for bolt-on applications where the cold-formed steel stud manufacturer can prepunch the bolt holes. The holdown features a unique seat that greatly minimizes deflection under load. Designed for installation with bolts into the studs or column.
  • Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
  • Features a unique seat design that greatly minimizes deflection under load
  • The S/HDB series is designed for installation with bolts; refer to the S/HDS series for attachment to post/column with screws

Features

  • Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern
  • Features a unique seat design that greatly minimizes deflection under load
  • The S/HDB series is designed for installation with bolts; refer to the S/HDS series for attachment to post/column with screws
  • Holdown dimensions: 17 in. high x 2-5/16 in. wide
  • Made from 171 mil (7 ga.) steel
  • Simpson StrongTie gray paint finish

Specifications


Height17 inchWidth2-5/16 inch
Material Thickness171 mil (7 ga.)MaterialSteel
FinishSimpson StrongTie gray paint
Products specifications
width 2-5/16 inch
*
*
*
