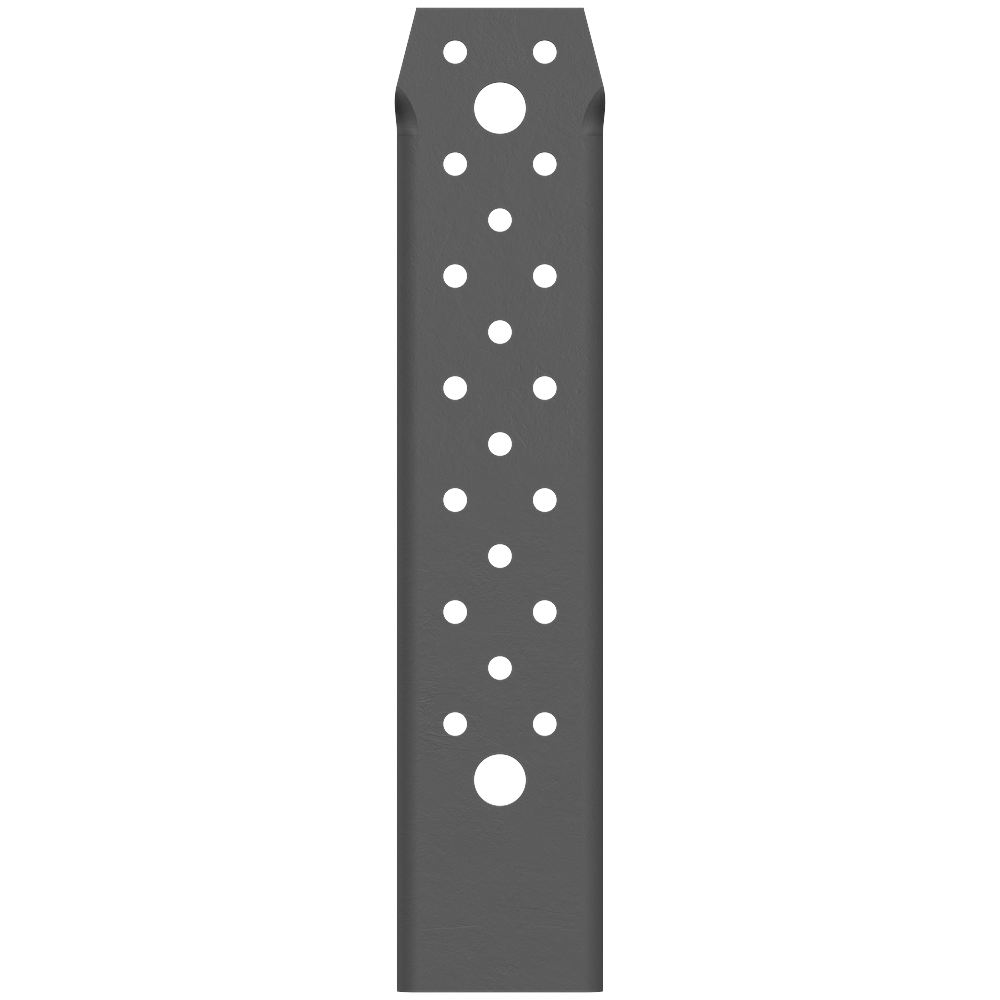

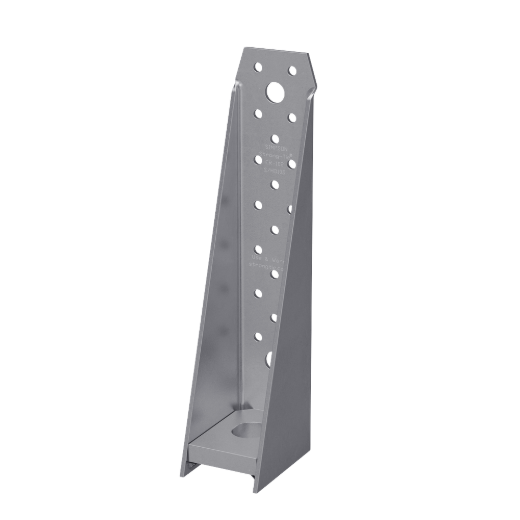

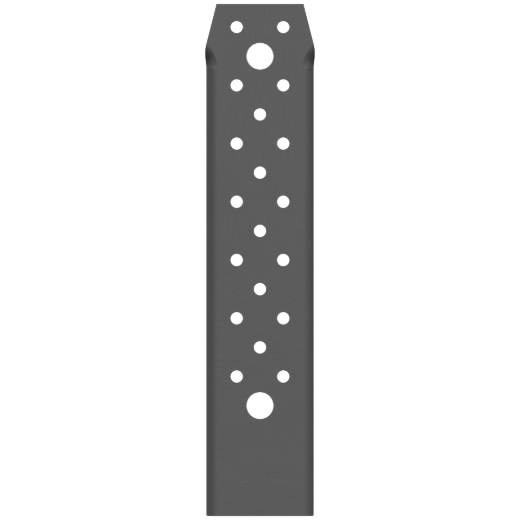

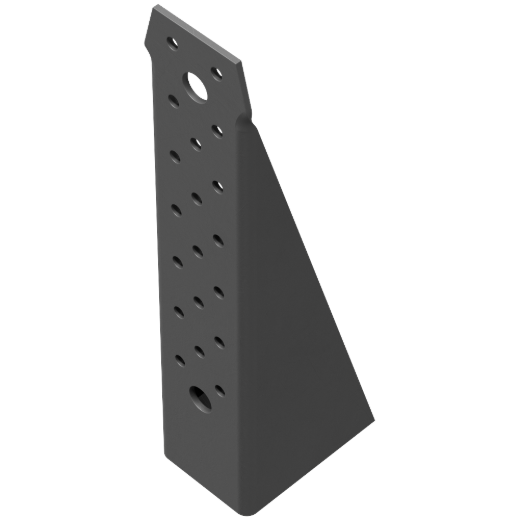

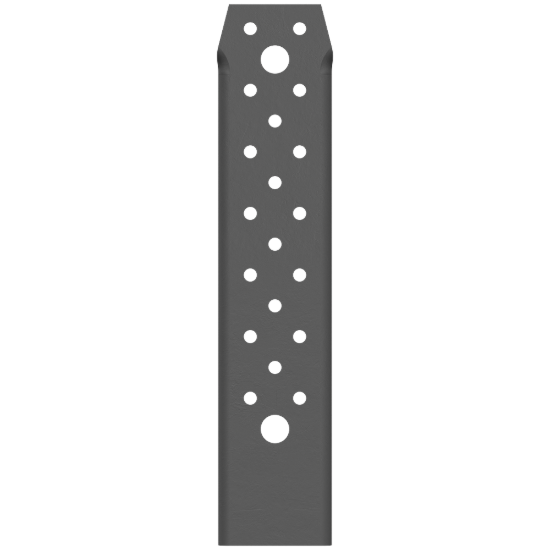

Simpson S/HDS 11" Light Gauge Steel Holdown

Mfr.: Simpson Strong-Tie
Item #: I093620
Mfr. #: S/HD8S
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $79.37
i h h

Description

The S/HDS is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications. The holdown features a unique seat that greatly minimizes deflection under load. The S/HDS has been designed to utilize fewer fasteners and reduce installation time.
  • Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern.
  • Features a unique seat that greatly minimizes deflection under load.
  • The S/HDS model is designed for installation with screws. Refer to S/HDB for attachment to post/column with bolts.
  • Height 11 in.
  • Width: 2-5/16 in.
  • Made from 118 mil (10 ga.) steel

Features

  • Can be installed directly on the base track or raised above it and is suitable for back-to-back applications where eccentricity is a concern.
  • Features a unique seat that greatly minimizes deflection under load.
  • The S/HDS model is designed for installation with screws. Refer to S/HDB for attachment to post/column with bolts.
  • Height 11 in.
  • Width: 2-5/16 in.
  • Made from 118 mil (10 ga.) steel

Specifications


Height11 inchWidth2-5/16 inch
Material118 mil (10 ga.) steel
*
*
*
