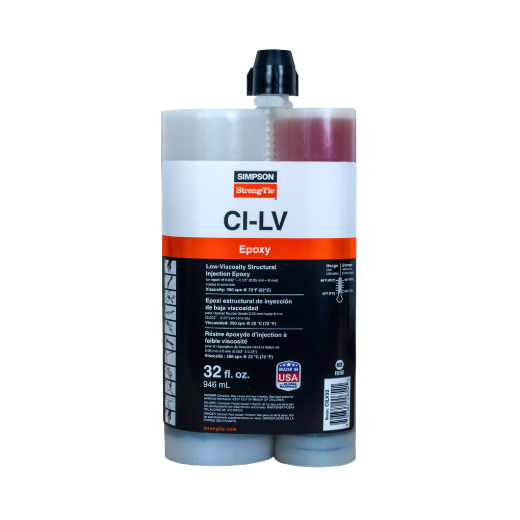

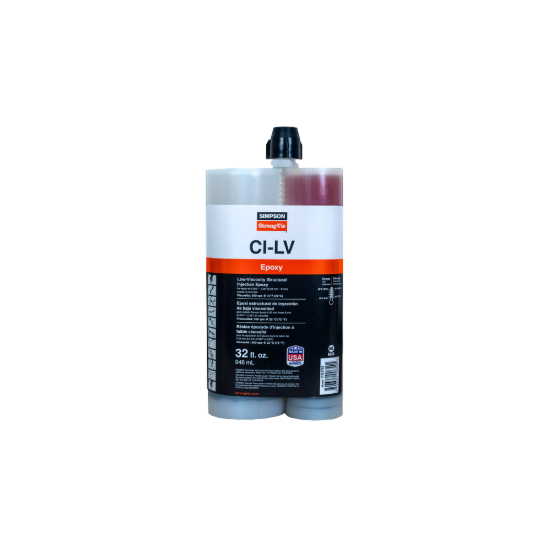

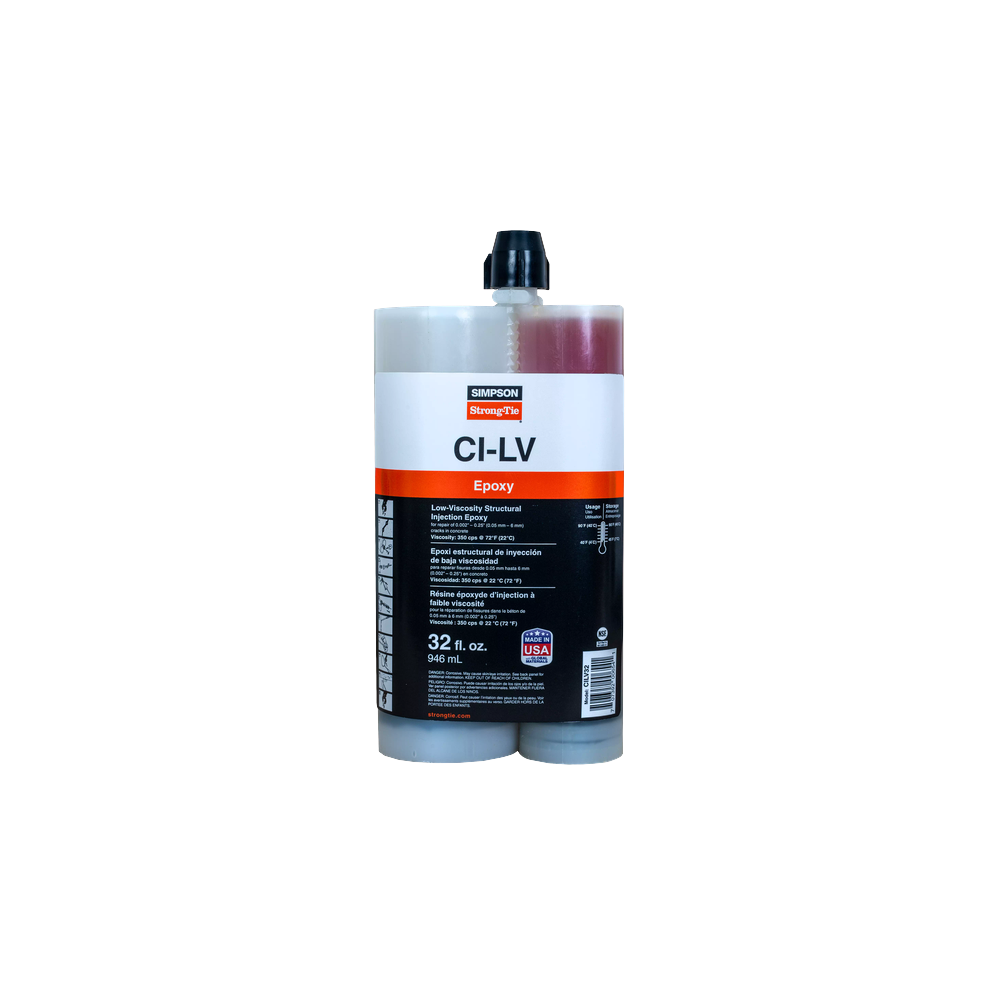

Simpson CI-LV Low-Viscosity Structural Injection Epoxy (32 oz.)

Mfr.: Simpson Strong-Tie
Item #: I047985
Mfr. #: CILV32
*
Pickup at Corona | Change Delivering to 90001 | Change

Price: $64.31
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Simpson Strong-Tie CI-LV low-viscosity structural injection epoxy is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection, gravity feeding and flood coat filling of concrete cracks and for increasing the bond between freshly placed repair mortars or concrete mixes and existing concrete when substrate temperatures are between 40F (4C)-90F (32C). Available in three-gallon bulk kits or convenient side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool.
  • Meets ASTM C881 & AASHTO M235, Type I/II, Grade 1, Class B and Type I/IV and II/V, Grade 1, Class C; approved under NSF/ANSI Standard 61
  • Chemically bonds with concrete for structural repair; seals cracks from moisture, protecting rebar from corrosion
  • Moisture-tolerant; can be used on dry and damp surfaces
  • Low surface tension for effective penetration into narrow cracks
  • Formulated for maximum penetration under pressure
  • Suitable for pressure injection or gravity-feed applications

Features

  • Meets the requirements of ASTM C881 & AASHTO M235, Type I/II, Grade 1, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 1, Class C and approved under NSF/ANSI Standard 61 (379 in.2 /1,000 gal.)
  • Chemically bonds with the concrete to provide a structural repair; CI-LV seals the crack from moisture, protecting rebar in the concrete from corrosion
  • Moisture-tolerant; can be used on dry and damp surfaces
  • Low surface tension allows the material to effectively penetrate narrow cracks
  • Formulated for maximum penetration under pressure
  • Suitable for pressure injection or gravity-feed applications

Includes

  • Three-gallon bulk kits
  • Side-by-side cartridges with static mixing nozzle

Specifications


Substrate Temperature Range40 degF (4 degC)-90 degF (32 degC)StandardsASTM C881 & AASHTO M235, Type I/II, Grade 1, Class
Products specifications
Base High-Solids (Moisture-Tolerant)
Bond Strength Structural bond per ASTM C881
Certifications ASTM C881 Type I/II Grade 1 Class B, ASTM C881 Type IV Grade 1 Class B/C
Chemistry Epoxy
Color Amber (Mixed Cured)
Country of Origin USA (subject to change)
Coverage Rate 231 cubic inches per gallon
Gel Time See manufacturer data (temperature dependent)
Manufacturer's Warranty 1 Year Limited
Mix Ratio 2:1 A:B by volume
Mixed Viscosity 350 cps
Shelf Life 24 Months
*
*
*
