Simpson CC - Column Cap for 4x Beam, 4x Post

Mfr.: Simpson Strong-Tie
Item #: I092125
Mfr. #: CC44
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $93.80
i h h

Description

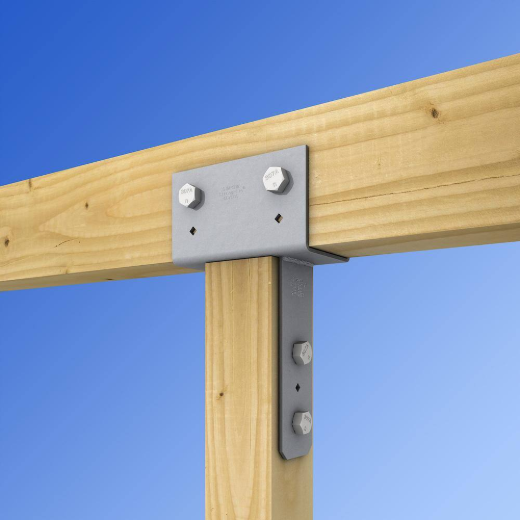

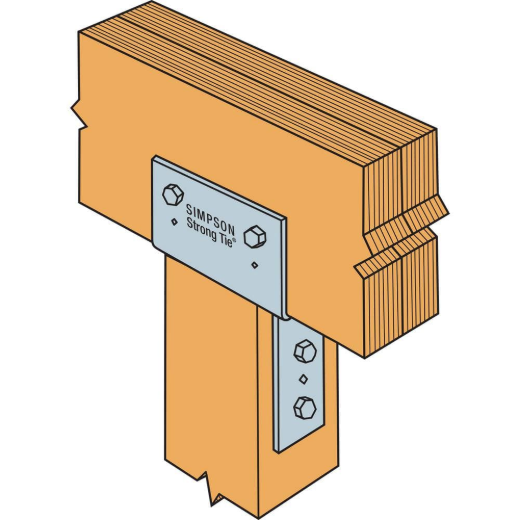

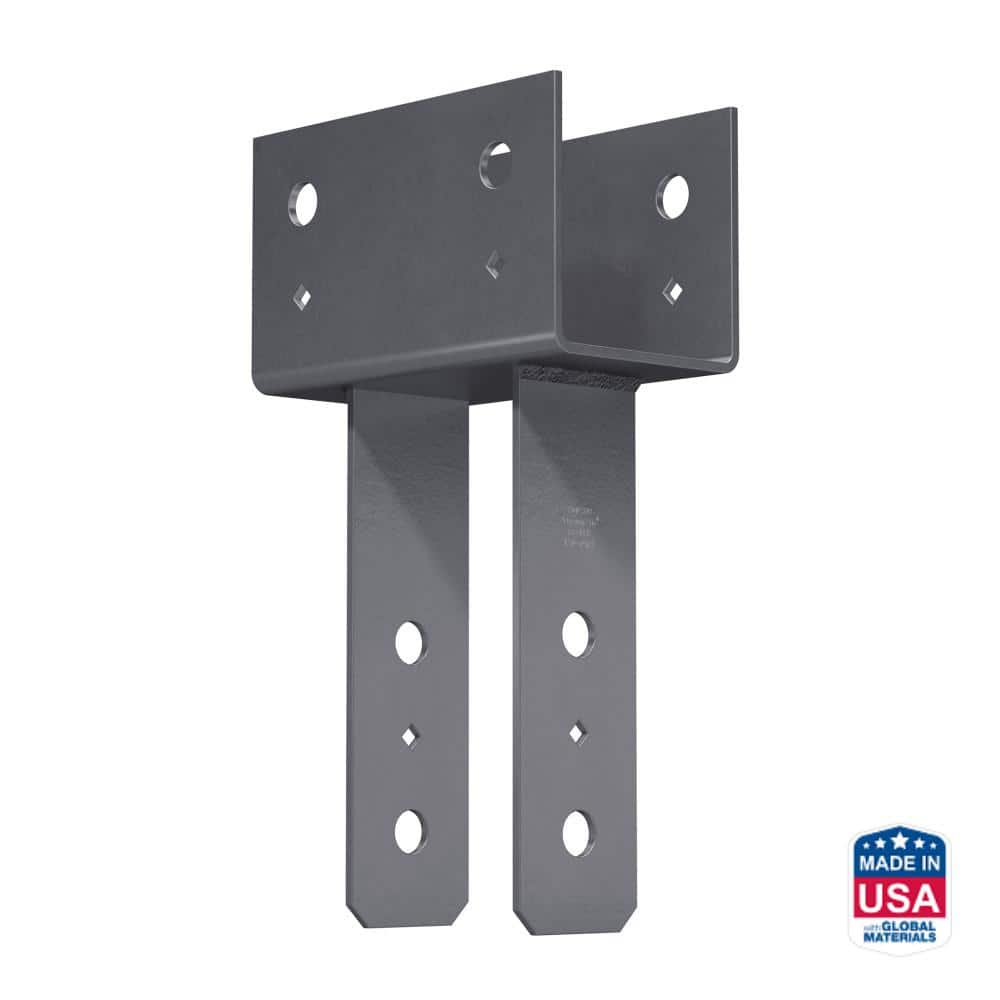

The Simpson CC44 column cap is designed to provide robust, secure connections between beams and posts in wood construction. Featuring a uniquely engineered seat, this cap extends beyond the column to offer increased bearing surface area for better load distribution from the beam. Its durable steel construction and certified welds ensure long-lasting stability, making it an essential component for structural integrity in decks, gazebos, and other framing projects.
  • Enhanced Load Distribution
  • Heavy-Gauge Steel Construction

Features

  • Certified welds for reliable strength and load capacity.
  • Increased uplift load ratings suitable for earthquake or wind loading.

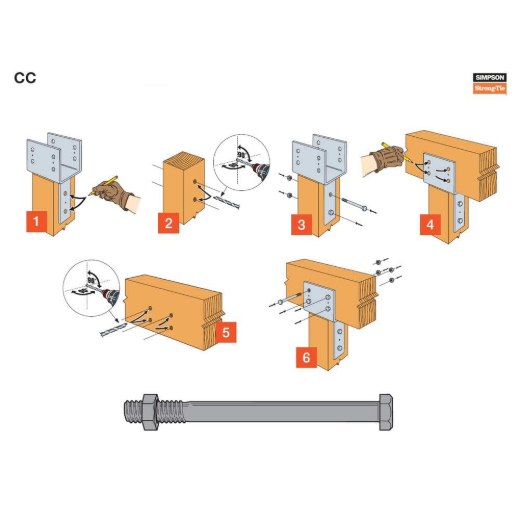

  • Designed with diamond holes to facilitate temporary fastening during installation.
  • Bolt spacing engineered to meet NDS code requirements.
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-2604
Connector Type Column Cap
Country of Origin Varies (subject to change)
Finish / Coating Galvanized (G90)
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x
Series CC
*
*
*
