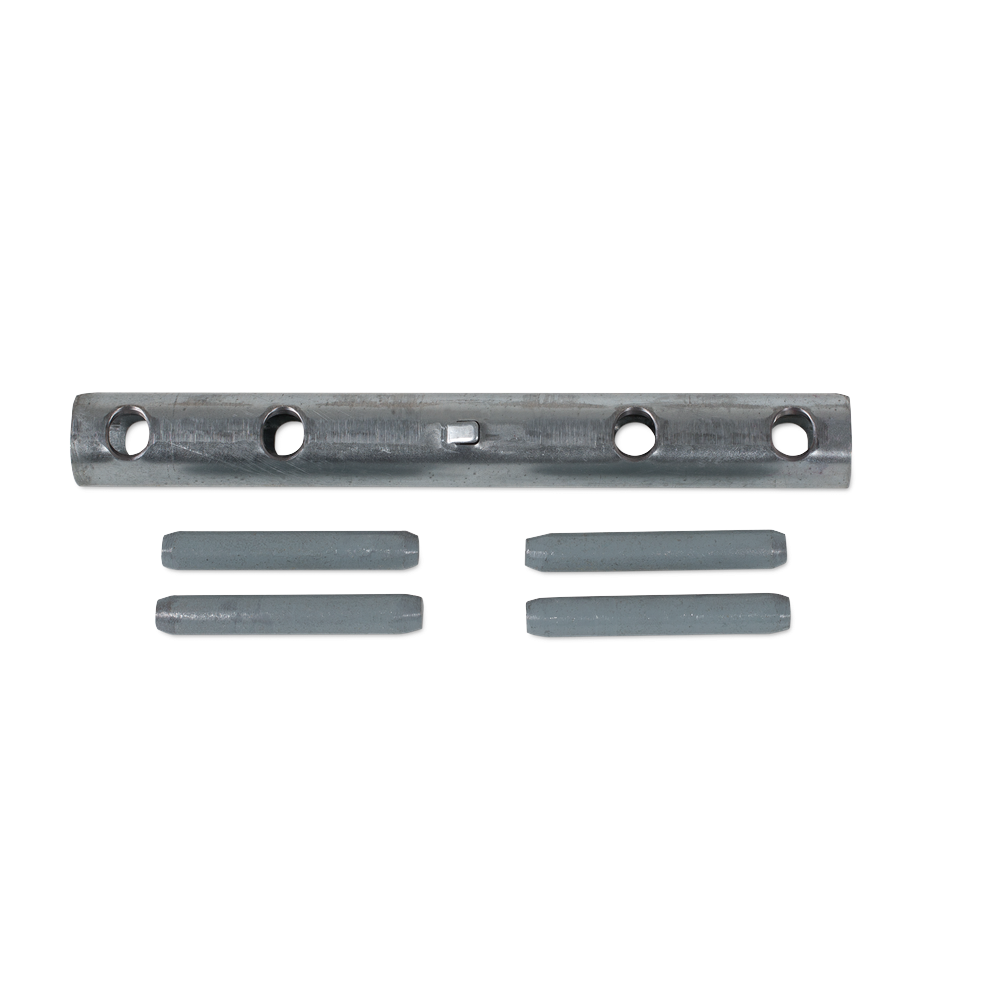

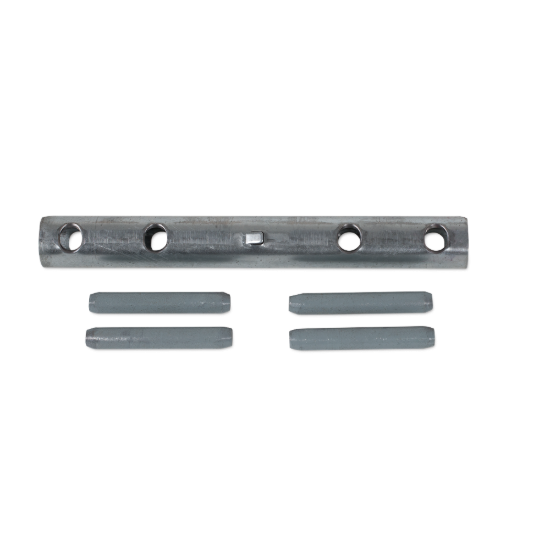

Simpson CBTZ 12-Gauge ZMAX Concealed Beam Tie for 4x4 Post

Mfr.: Simpson Strong-Tie
Item #: I092224
Mfr. #: CBT2Z-KT
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $79.98
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Tie CBTZ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT.
  • Flattened sides assist installer while using the CBTZ as a template
  • Locator tabs provide proper dimensional layout
  • Required dowel pins included
  • Orientation markings distinguish which end installs into the post and which end goes into the beam
  • Dimensions: 1-1/4 in. x 10 in.
  • Sized for a nominal 4x4 post

Features

  • Flattened sides assist installer while using the CBTZ as a template
  • Locator tabs provide proper dimensional layout
  • Required dowel pins included
  • Orientation markings distinguish which end installs into the post and which end goes into the beam
  • Dimensions: 1-1/4 in. x 10 in.
  • Sized for a nominal 4x4 post

Includes

  • Required dowel pins

Specifications


Dimensions1-1/4 inch x 10 inchSized fornominal 4x4 post
*
*
*
