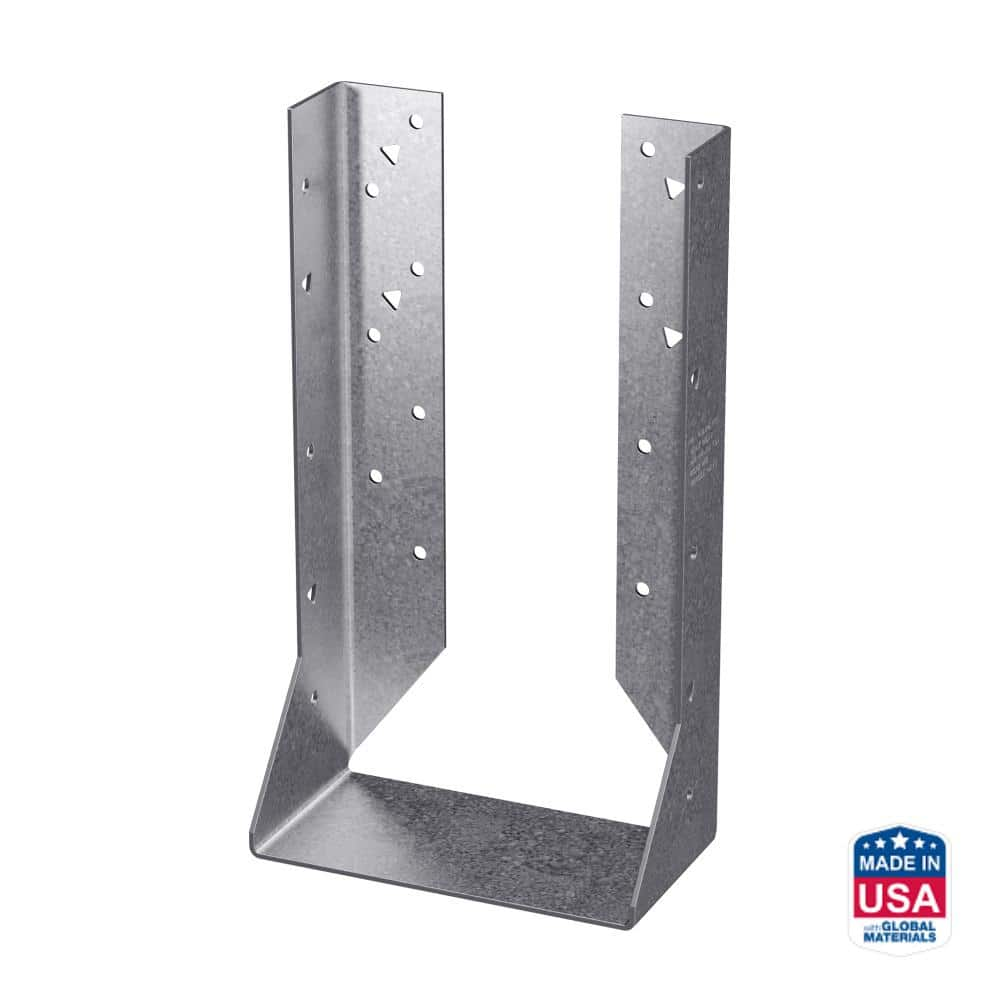

Simpson HUC - 2" x 10" Triple Concealed Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091582
Mfr. #: HUC210-3
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $50.73
i h h

Description

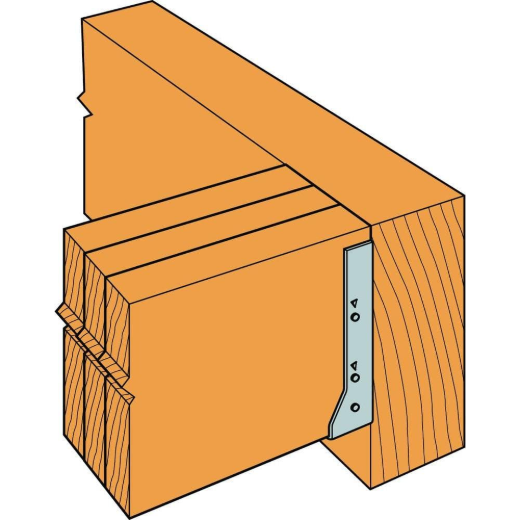

The Simpson Strong-Tie HUC210-3 is a heavy-duty face-mount joist hanger designed for triple 2x10 joist support in high-strength structural applications. Featuring a concealed flange design, it offers a clean, professional aesthetic for exposed wood framing by hiding the header flanges. These hangers are engineered to provide superior load capacity and safety, making them ideal for schools and other demanding structural projects. The HUC series is tested, load-rated, and code-compliant to ensure reliability in wood, masonry, or concrete installations.
  • Concealed header flanges for a clean appearance
  • Heavy-duty 14-gauge steel construction

Features

  • Extra optional triangle holes available to achieve maximum load values
  • Engineered for increased strength and safety factors in demanding structures
  • Can be special ordered with skewable or sloped seats

Includes

  • One (1) HUC210-3 Concealed Flange Face-Mount Joist Hanger
Products specifications
Connector Type Concealed-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 10 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Concealed-Flange
Series HUC
Steel Gauge 14 ga
*
*
*
