Simpson CPT - Concealed Post Base for 6" x 6" Posts

Mfr.: Simpson Strong-Tie
Item #: I090990
Mfr. #: CPT66Z
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $79.71
i h h

Description

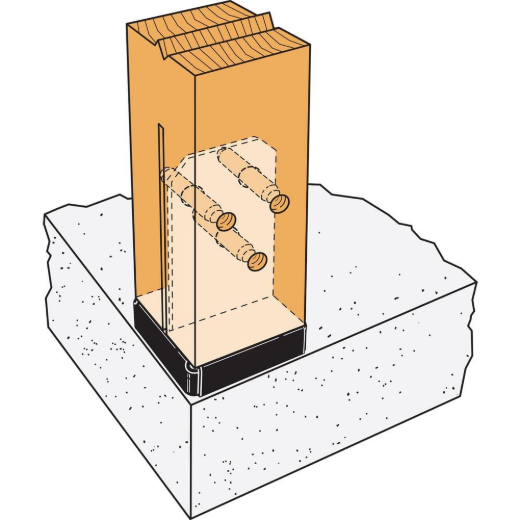

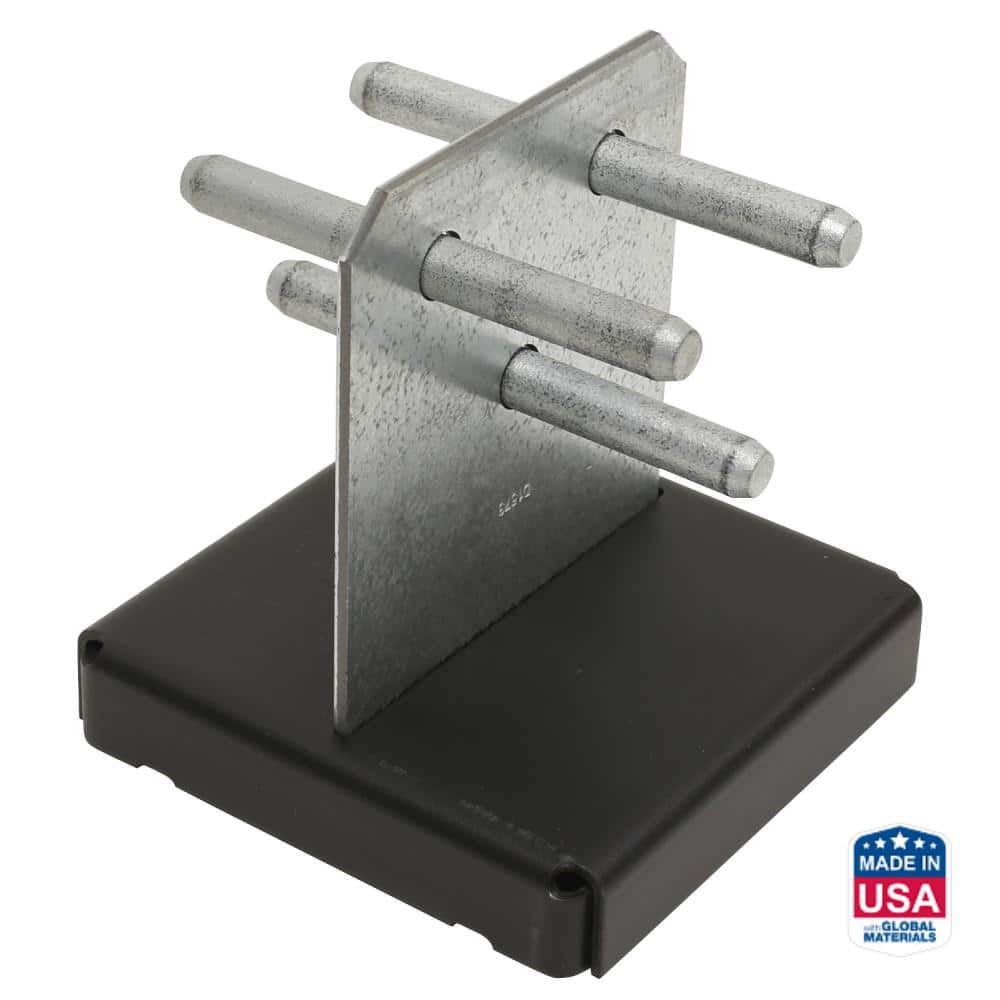

The Simpson Strong-Tie CPT66Z is a high-performance concealed post base designed to provide a clean, professional look for 6x6 wood posts. Featuring a 1-inch standoff height, it effectively reduces the risk of post-end decay by keeping the timber away from moisture and meeting building code requirements. This versatile connector is ideal for projects where aesthetics are paramount, offering a sleek finish without visible hardware.
  • ZMAX Galvanized with Black Powder Coat
  • Concealed Knife-Plate Design

Features

  • Engineered to withstand high uplift, download, and lateral loads.
  • Built-in 1-inch standoff prevents rot and meets building code.

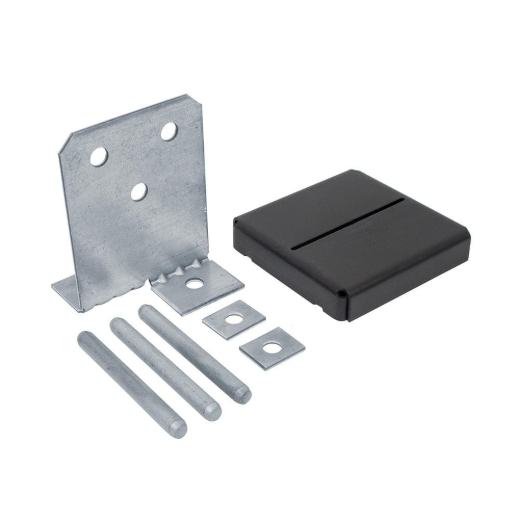

Includes

  • ZMAX Galvanized Knife Plate
  • Standoff Base with Black Powder Coat
  • (2) 1/2 inch Diameter Mechanically Galvanized Dowels
  • Set of Required Washers
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-2604
Connector Type Post Cap
Country of Origin Varies (subject to change)
Finish / Coating ZMAX (G185)
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 6x6
Series CPT
*
*
*
