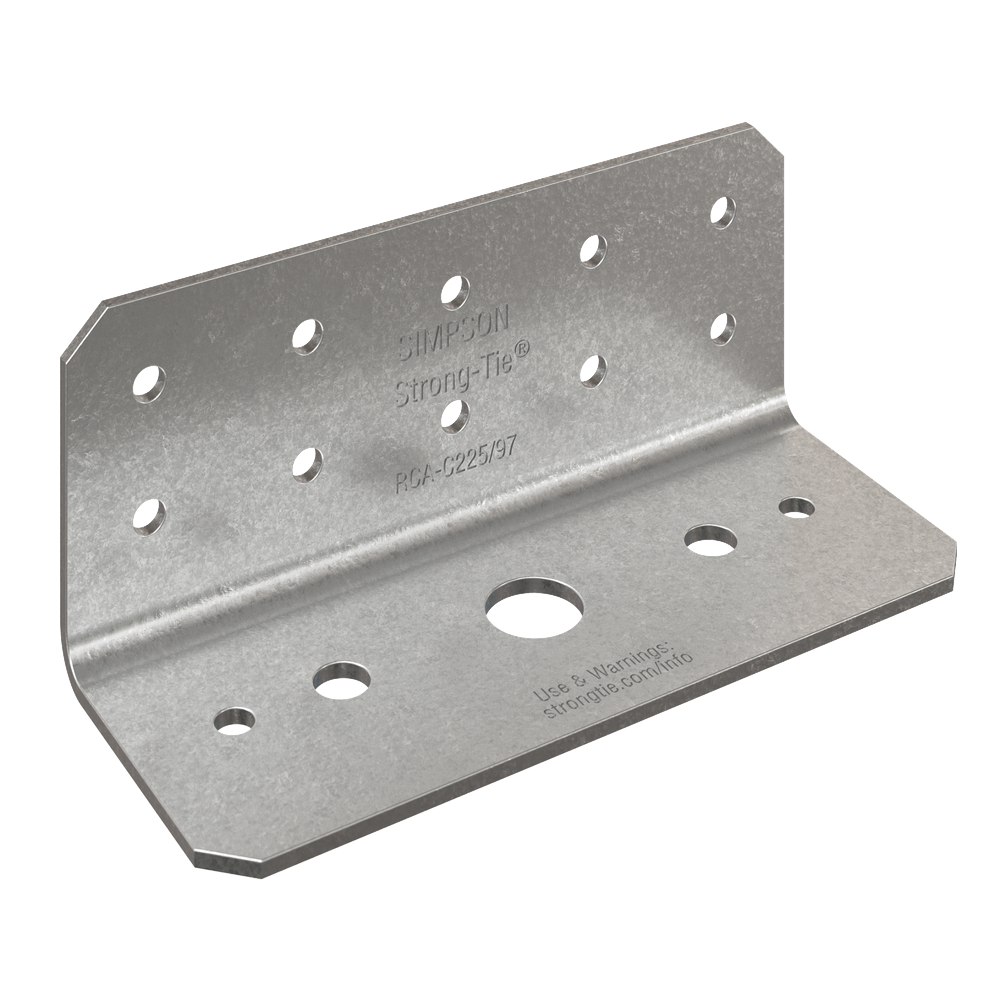

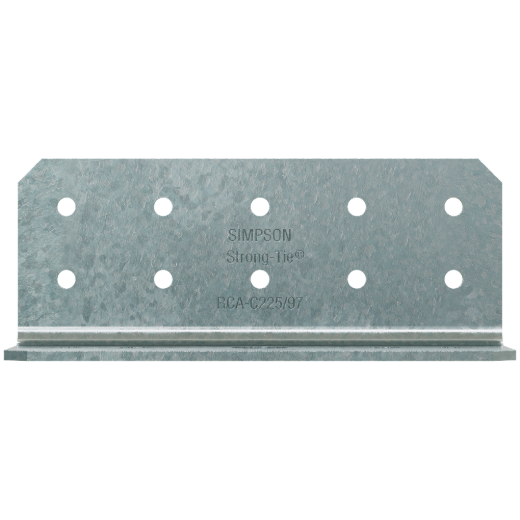

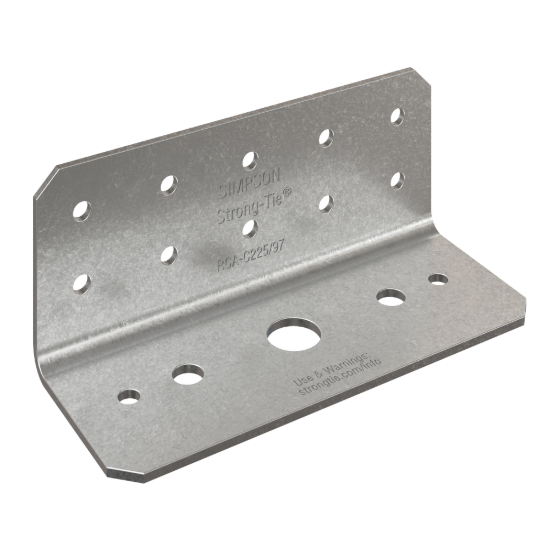

Simpson RCA-C 2" x 2" x 5" 12-Gauge Rigid Connector Angle for Concrete - 55/box

Mfr.: Simpson Strong-Tie
Item #: I093591
Mfr. #: RCA-C225/97-R55
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $317.56
i h h

Description

The Simpson Strong-Tie RCA-C is an ideal solution for attaching stud framing to concrete supports. The connector's design includes holes for a 1/2-in. diameter anchor screw or bolt, or for two 1/4-in. diameter concrete screws, positioned in a wide array of fastening options - thus saving the installer the time and cost of drilling connector holes at the jobsite. In addition, the RCA-C connector has been rigorously tested and load rated, giving you the confidence of quality and performance for your job.
  • 2-in. x 2-in. legs provide plenty of room to make attachments to structure and stud framing
  • Multiple screw pattern options to stud framing for different load rating
  • Can be used as either a heavy-duty shear and tension connector or light-duty moment connection
  • Prepunched holes for screws to stud framing and attachment to concrete; prepunched holes on anchor leg provide options for (1) 1/2-in. diameter anchor, (2) 1/4-in. diameter anchors, or (2) 1/4-in. diameter concrete screws
  • Attachment to concrete or masonry can be achieved with 1/2-in. diameter Titen HD, 1/2-in. diameter Strong-Bolt 2, 1/4-in. diameter Titen HD, or 1/4-in. diameter Titen Turbo
  • Made from 12-gauge (97 mil) steel

Features

  • 2-in. x 2-in. legs provide plenty of room to make attachments to structure and stud framing
  • Multiple screw pattern options to stud framing for different load rating
  • Can be used as either a heavy-duty shear and tension connector or light-duty moment connection
  • Prepunched holes for screws to stud framing and attachment to concrete; prepunched holes on anchor leg provide options for (1) 1/2-in. diameter anchor, (2) 1/4-in. diameter anchors, or (2) 1/4-in. diameter concrete screws
  • Attachment to concrete or masonry can be achieved with 1/2-in. diameter Titen HD, 1/2-in. diameter Strong-Bolt 2, 1/4-in. diameter Titen HD, or 1/4-in. diameter Titen Turbo
  • Made from 12-gauge (97 mil) steel

Specifications


Material12-gauge (97 mil) steelLeg Size2 inch x 2 inch
Anchor Hole Options1/2-in. diameter anchor screw or bolt, or two 1/4-
*
*
*
