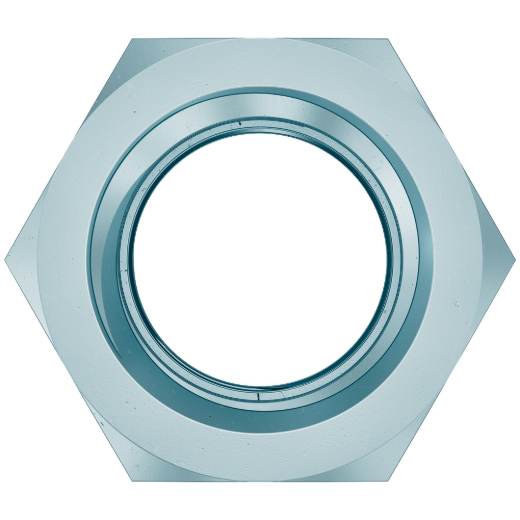

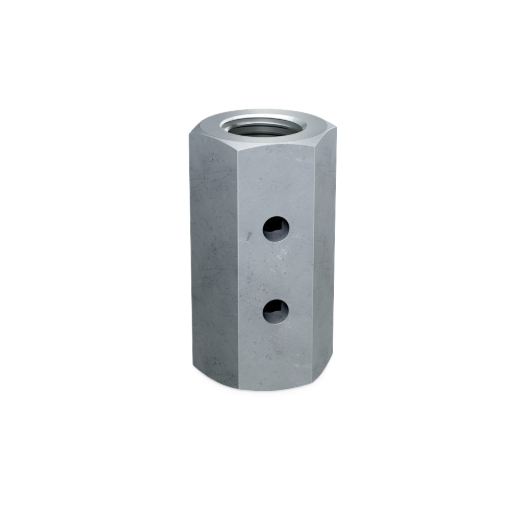

Simpson CNW 5/8" to 5/8" Oversized Thread Coupler Nut with Witness Hole

Mfr.: Simpson Strong-Tie
Item #: I092472
Mfr. #: CNW5/8-5/8-OST
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $45.31
i h h

Description

The Simpson Strong-Tie CNW coupler nut is designed to connect threaded rods to one another and to anchor bolts. These nuts are designed to exceed the specified minimum tensile capacity of the corresponding bolts and threaded rod. All CNW coupler nuts feature a positive stop to help ensure even threading into each end of the nut and a Witness hole as a means to verify when rods are properly installed.
  • Positive stop for even threading

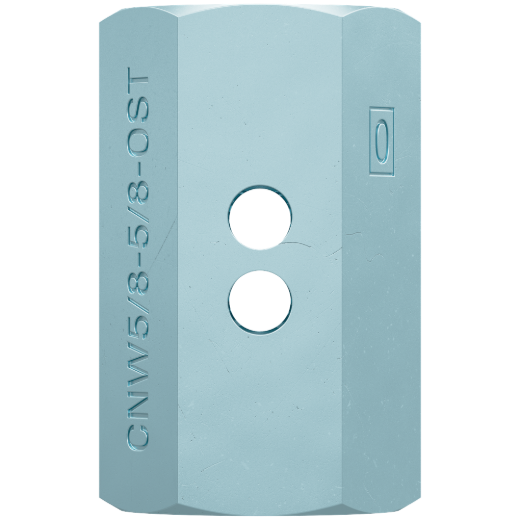

  • Witness hole for verification of proper installation
  • Oversized threads on one end for hot-dip galvanized bolts

Features

  • Tighten the two rods until each all-thread rod is visible in the Witness hole
  • Oversized threads on one end for installation on hot-dip galvanized bolts

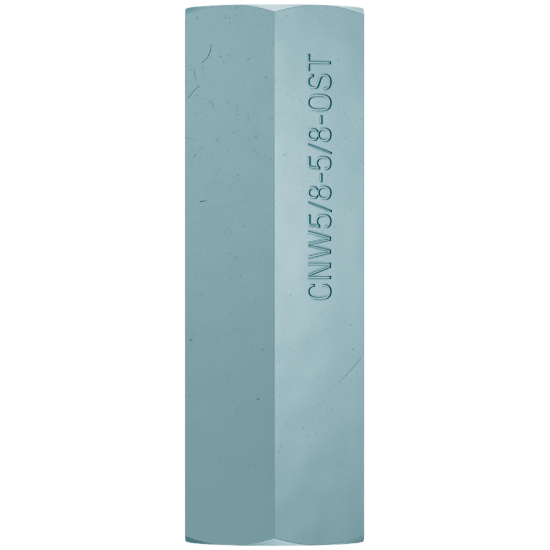

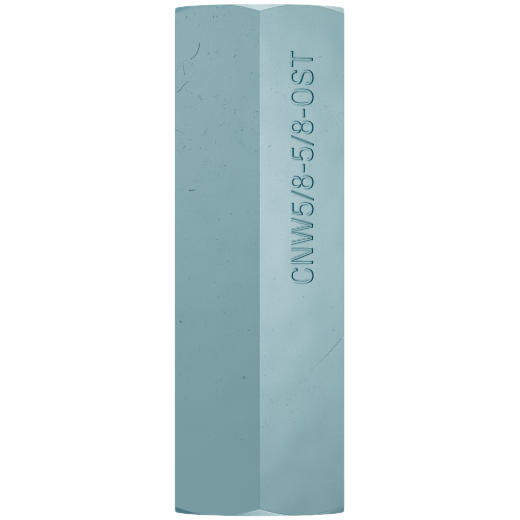

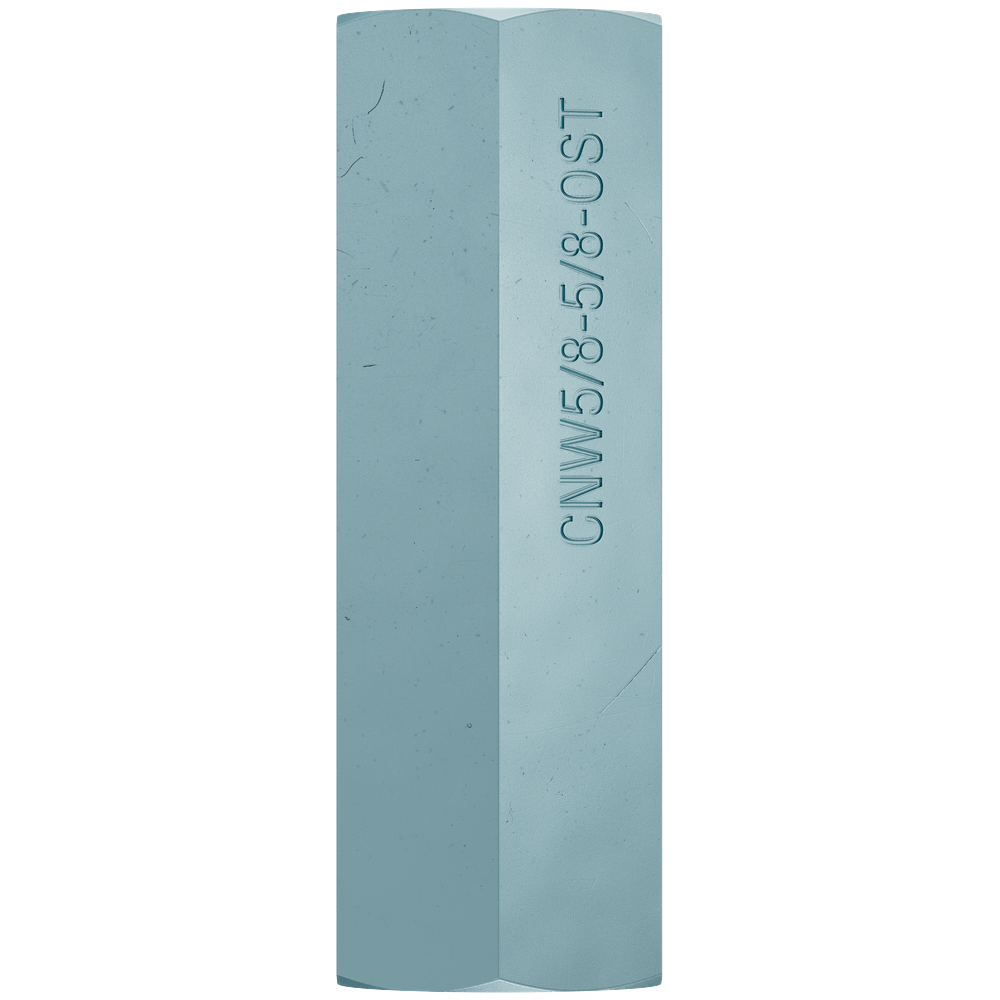

  • OST couplers are oversized on one end of the coupler nut only and will be marked with an 'O' on oversized side
  • Rod diameter: 5/8 in. to 5/8 in. with oversized thread
  • Height (min.): 1-1/2 in.

Specifications


Rod diameter5/8 inch to 5/8 inch with oversized threadHeight (min.)1-1/2 inch
*
*
*
