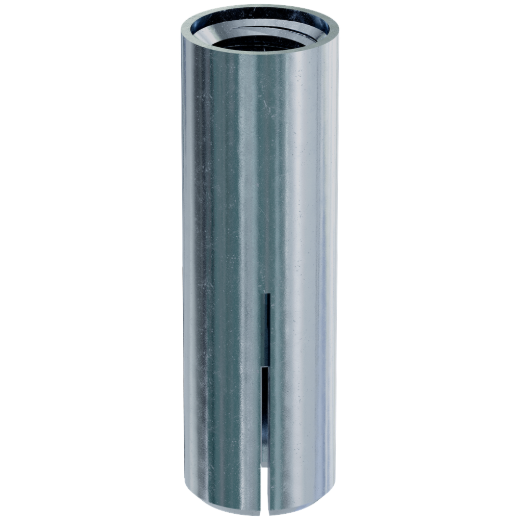

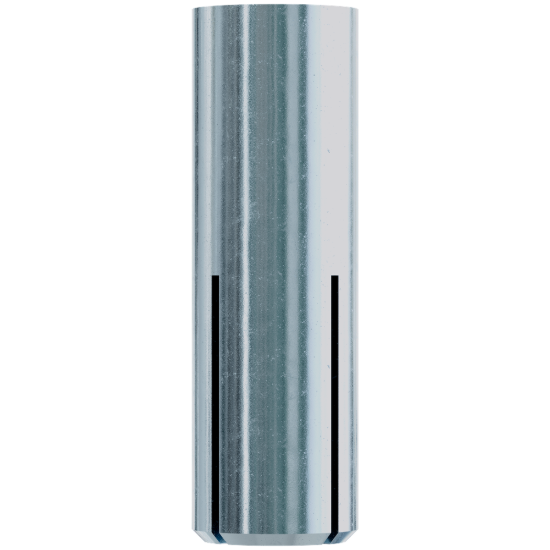

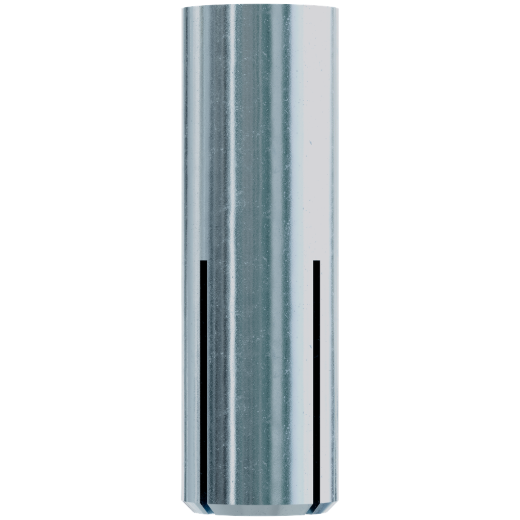

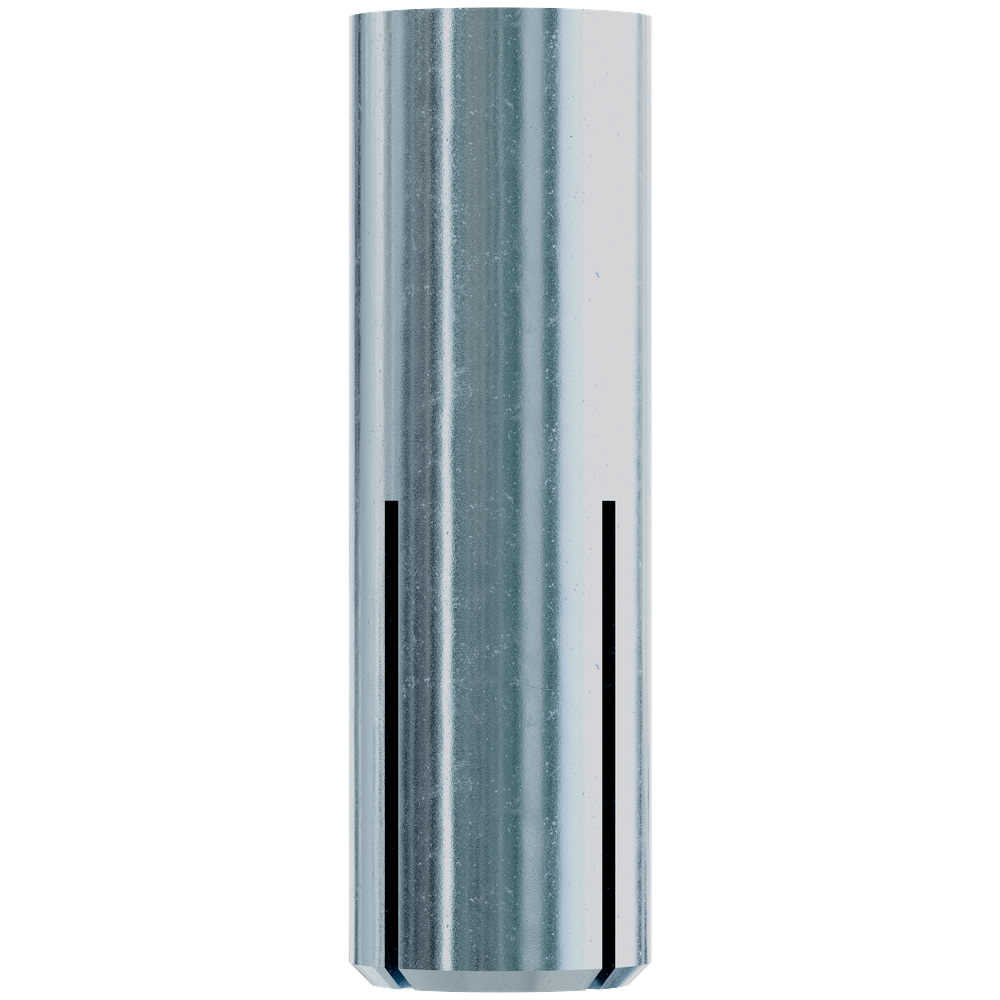

Simpson DIAB Drop-In Internally Threaded Anchor for 1/2-" Rod - 50/box

Mfr.: Simpson Strong-Tie
Item #: I056382
Mfr. #: DIAB50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $47.20
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Tie DIAB features improved geometry for smooth and accurate installation into base materials. This displacement-controlled expansion anchor is easily set and features an indication marker to confirm proper placement. The enhanced setting capability of this internally threaded drop-in anchor requires minimum effort for quick and economical installation.
  • Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits

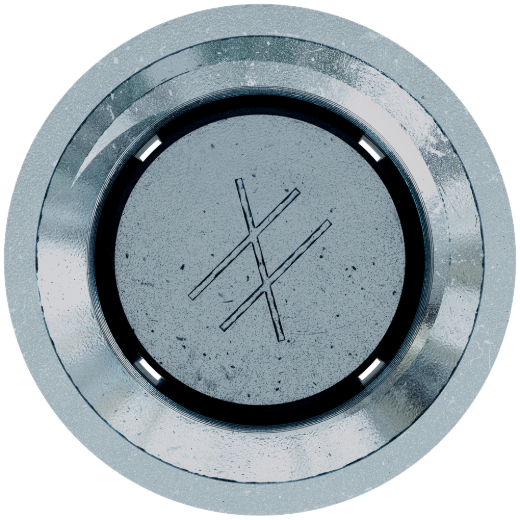

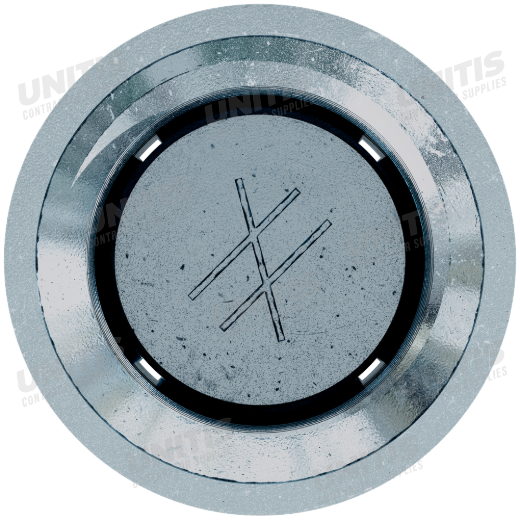

  • Positive-set marking system indicates when anchor is properly set
  • Zinc-plated carbon steel

Features

  • Faster installation than previous drop-in anchor design - sets with 40% fewer hammer hits
  • Positive-set marking system indicates when anchor is properly set
  • Zinc-plated carbon steel
  • Length: 2 in.
  • Drill bit diameter: 5/8 in.
  • Rod diameter: 1/2 in.

Specifications


Length2 inchDrill bit diameter5/8 inch
Rod diameter1/2 inchMaterialZinc-plated carbon steel
Products specifications
Anchor Diameter 1/2 in
Anchor Type Drop-In Anchor
Code Listing ICC-ES ESR-2196
Country of Origin Varies (subject to change)
Pieces per Pack 50 per box
*
*
*
