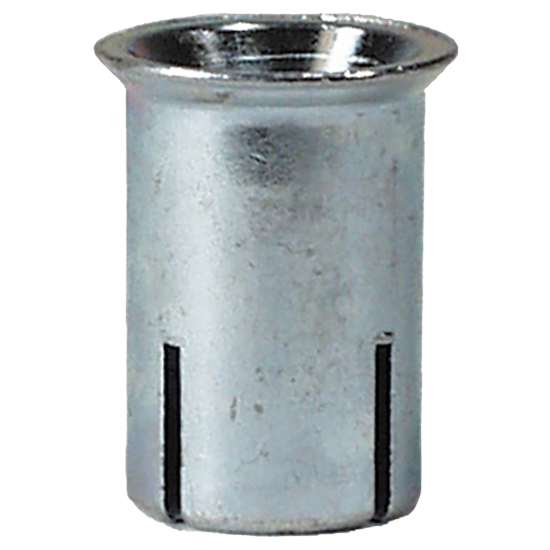

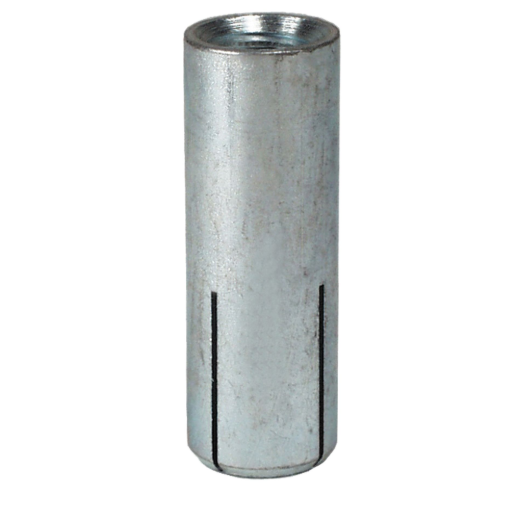

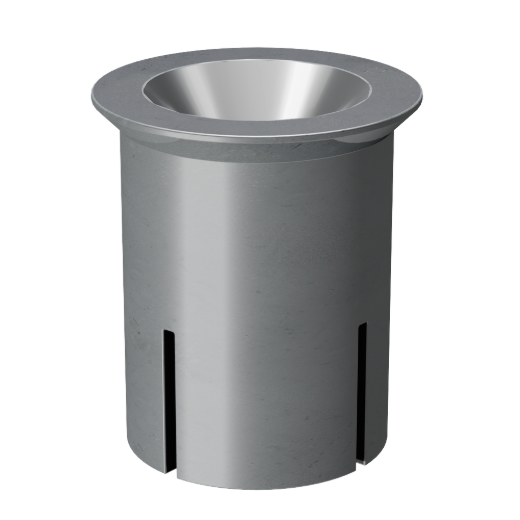

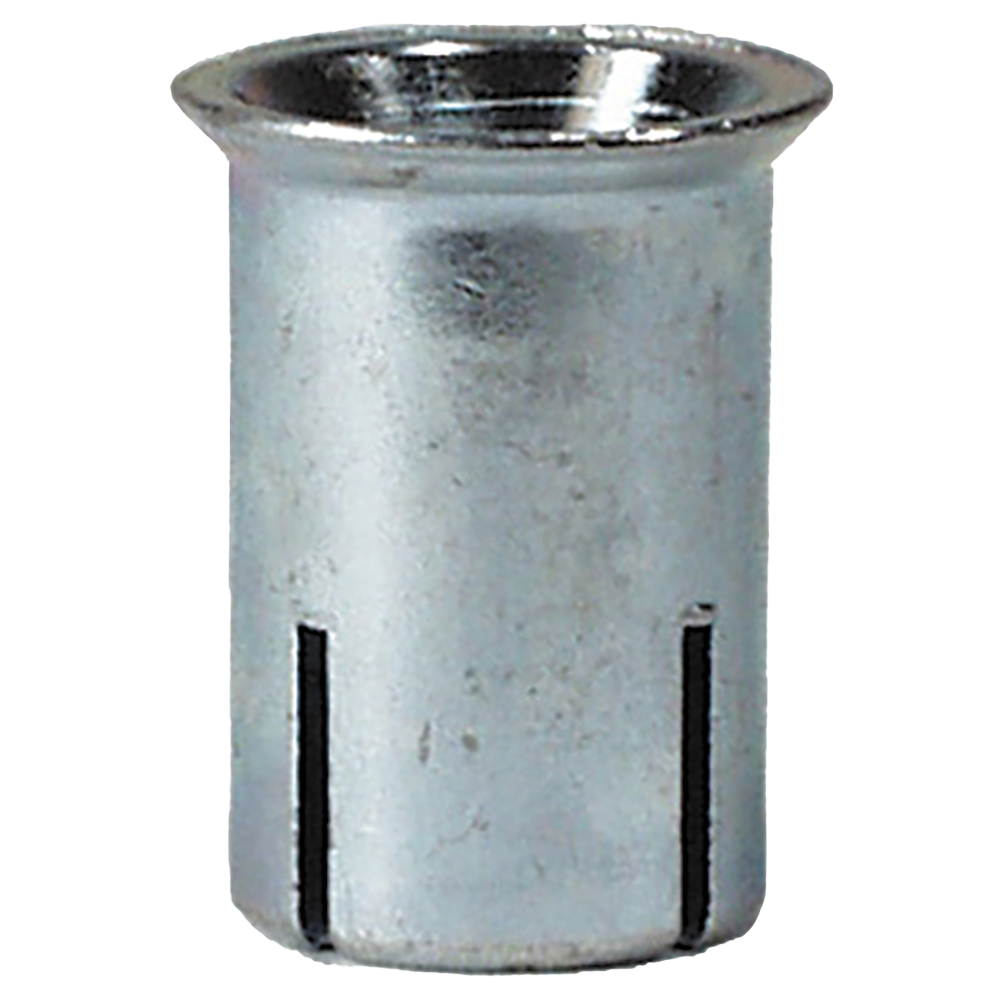

Simpson DIAS Short Drop-In Internally Threaded Anchor for 1/2-" Rod - 50/box

Mfr.: Simpson Strong-Tie
Item #: I100392
Mfr. #: DIA50S
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $67.02
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Drop-In anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Available in stainless steel (DIA) or short (DIAS) versions. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
  • Flush-mount expansion anchor for concrete applications
  • Lipped edge of DIAS eliminates need for precisely drilled hole depth
  • Short length of DIAS enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
  • Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation

Features

  • Flush-mount expansion anchor for concrete applications
  • Lipped edge of DIAS eliminates need for precisely drilled hole depth
  • Short length of DIAS enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
  • Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation
  • Rod size: 1/2 in.
  • Drill bit diameter: 5/8 in.

Specifications


Rod size1/2 inchDrill bit diameter5/8 inch
*
*
*
