Simpson Double 2 X 10 Top Flange Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091449
Mfr. #: HU210-2TF
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $67.02
i h h

Description

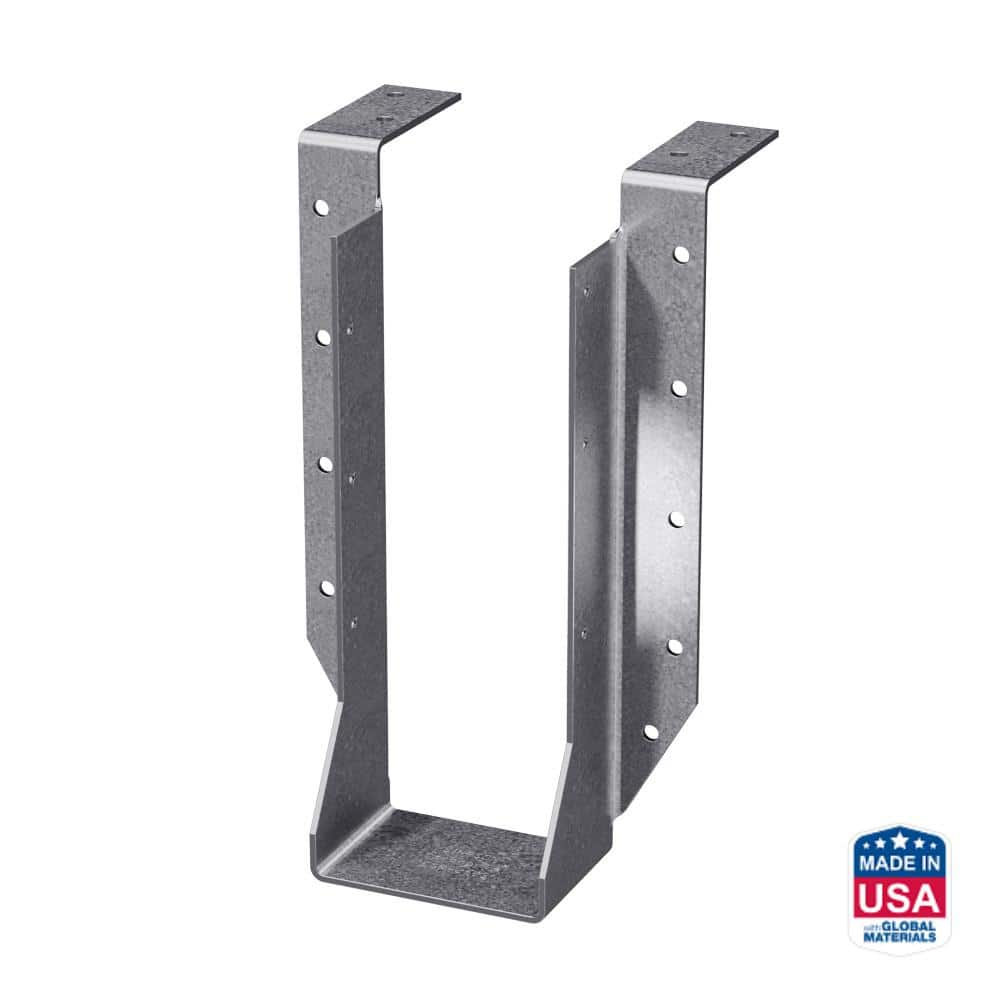

The Simpson Strong-Tie HU210-2TF is a heavy-duty top-flange joist hanger designed for double 2x10 lumber, offering robust support and versatility for various construction applications. It features a hybrid design that integrates the advantages of both face-mount and top-mount hangers, ensuring strong and reliable connections. Constructed from 12-gauge galvanized steel, this hanger provides exceptional strength and corrosion resistance, making it suitable for residential and commercial floor joists, roof rafter connections, and deck framing.
  • Hybrid Design
  • Durable 12-Gauge Galvanized Steel Construction

Features

  • Can be skewed or sloped up to 45 to accommodate various framing requirements.
  • Face-nailing allows for secure attachment to the member.

Includes

  • 1 x HU210-2TF Joist Hanger
Products specifications
Joist size Double 2 inch X 10 inch
Material Carbon Steel
Finish G90 Galvanized
Thickness 12 Gauge
Width 3-1/8 inch
Height 9-1/8 inch
Fasteners required Face:(14) .162in x 3.5in Nails, Joist:(6) .1
For Treated Lumber No
*
*
*
