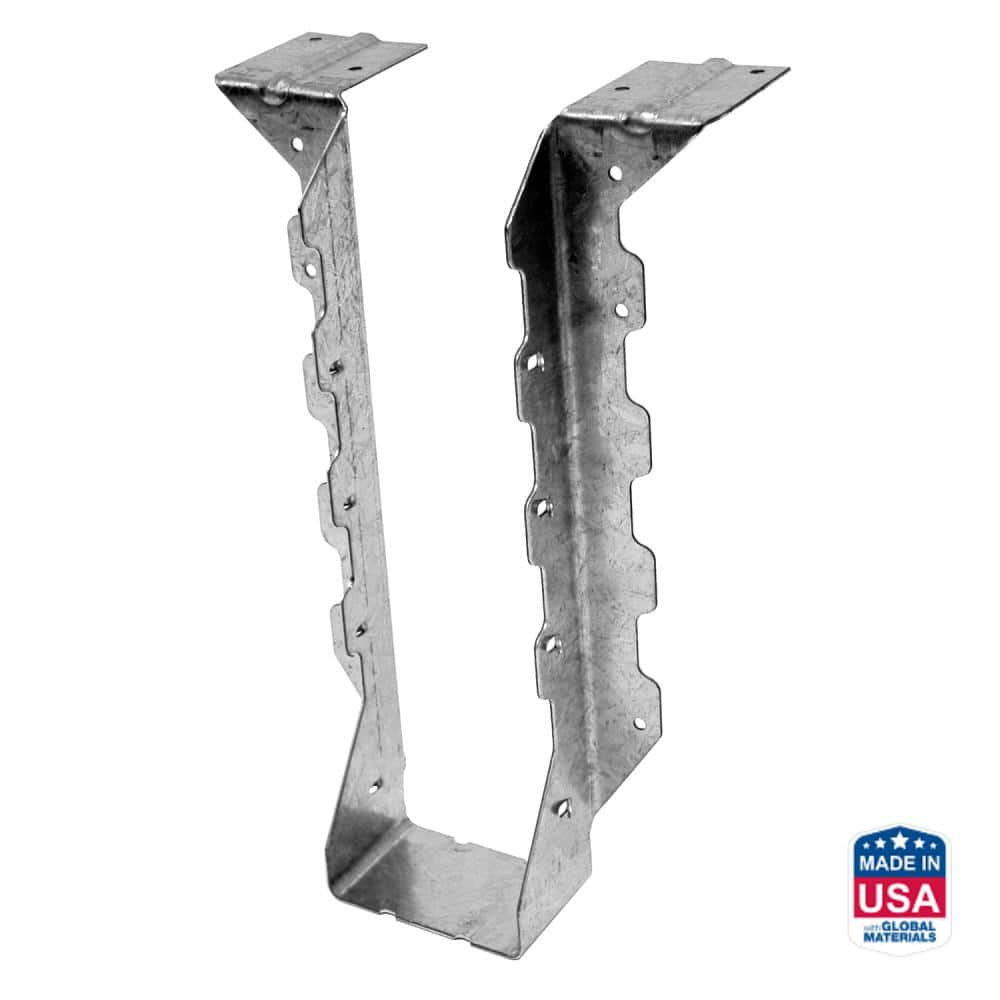

Simpson HUS - 2" x 12" Double Top Flange Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091712
Mfr. #: HUS212-2TF
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $47.84
i h h

Description

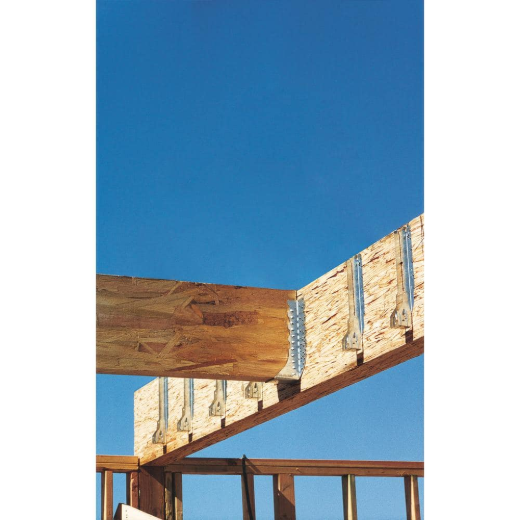

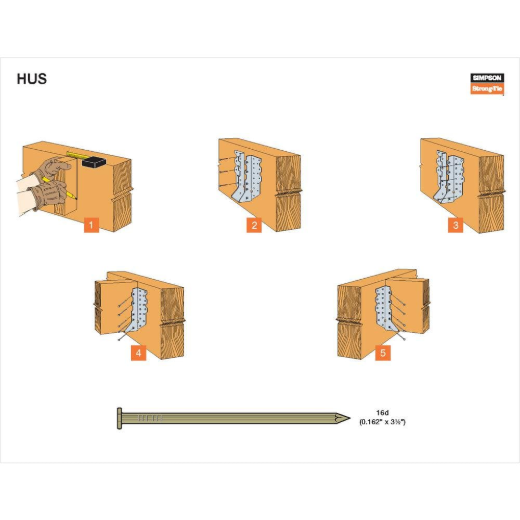

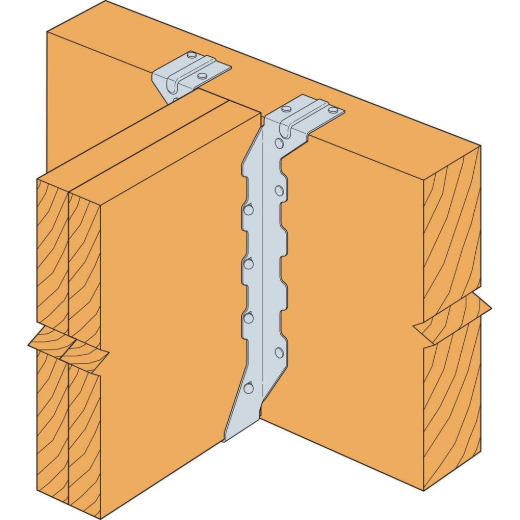

The Simpson Strong-Tie HUS212-2TF is a heavy-duty hybrid hanger specifically engineered for double 2x12 joist-to-header connections. This hanger combines the advantages of both face-mount and top-mount styles, featuring an embossed top flange for superior connection strength. Its design utilizes double-shear nailing to distribute loads through two points on each joist nail, ensuring reliable structural integrity for demanding high-load applications.
  • Heavy-duty hybrid design
  • Double-shear nailing for enhanced load distribution
  • Embossed top flange for added strength

Features

  • 14-gauge steel construction provides robust support.
  • G90 galvanized finish offers increased corrosion resistance.
Products specifications
Connector Type Face-Mount Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 12 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Face-Mount
Series HUS
Steel Gauge 14 ga
*
*
*
