Simpson Double 2x16 Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091469
Mfr. #: HU216-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $67.02
i h h

Description

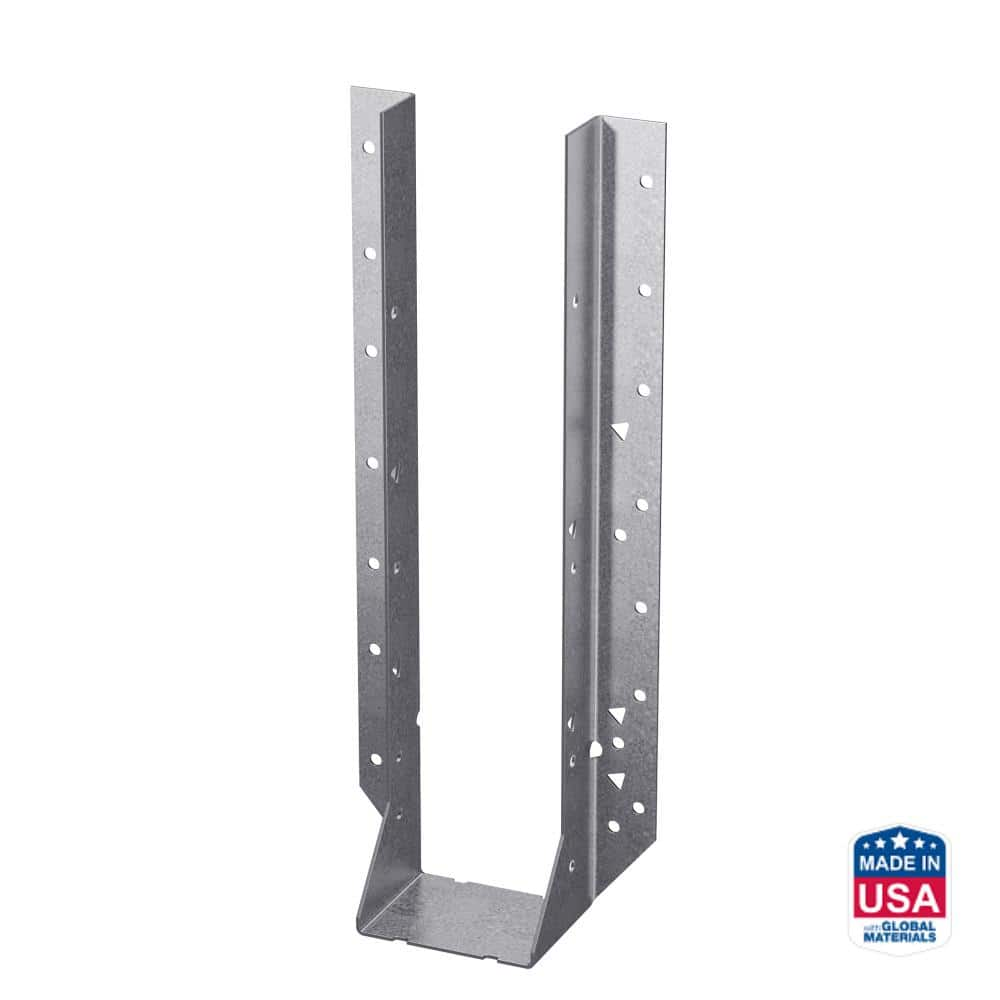

The Simpson Strong-Tie HU216-2 is a heavy-duty, double 2x16 face mount joist hanger designed for robust support in various construction applications, including deck framing, floor systems, and roof framing. Crafted from 14-gauge galvanized steel, it ensures durability and reliability for both residential and commercial projects. This hanger is engineered to handle significant loads and offers ease of installation with pre-drilled holes for efficient fastening. It is suitable for wood-to-wood and wood-to-masonry connections, providing strong and reliable structural support.
  • 14-Gauge Galvanized Steel Construction
  • Double 2x16 Joist Size
  • Face-Mount Design

Features

  • G90 Galvanized Finish for standard corrosion resistance.
  • Accommodates solid sawn lumber, engineered wood products, and cold-formed steel joists.
  • Tested, load-rated, and complies with building codes.
  • Can be skewed or sloped up to 45 (on some models/series).

Includes

  • Face Nails: (26) 0.162 inch x 3-1/2 inch Nails
  • Joist Nails: (12) 0.148 inch x 3 inch Nails
Products specifications
joist_size Double 2x16
material Carbon Steel
thickness 14 Gauge
finish G90 Galvanized
height 13-7/8 inch
width 3-1/8 inch
*
*
*
