Simpson Double 2X8 Top Flange Hanger

Mfr.: Simpson Strong-Tie
Item #: I091720
Mfr. #: HUS28-2TF
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $39.48
i h h

Description

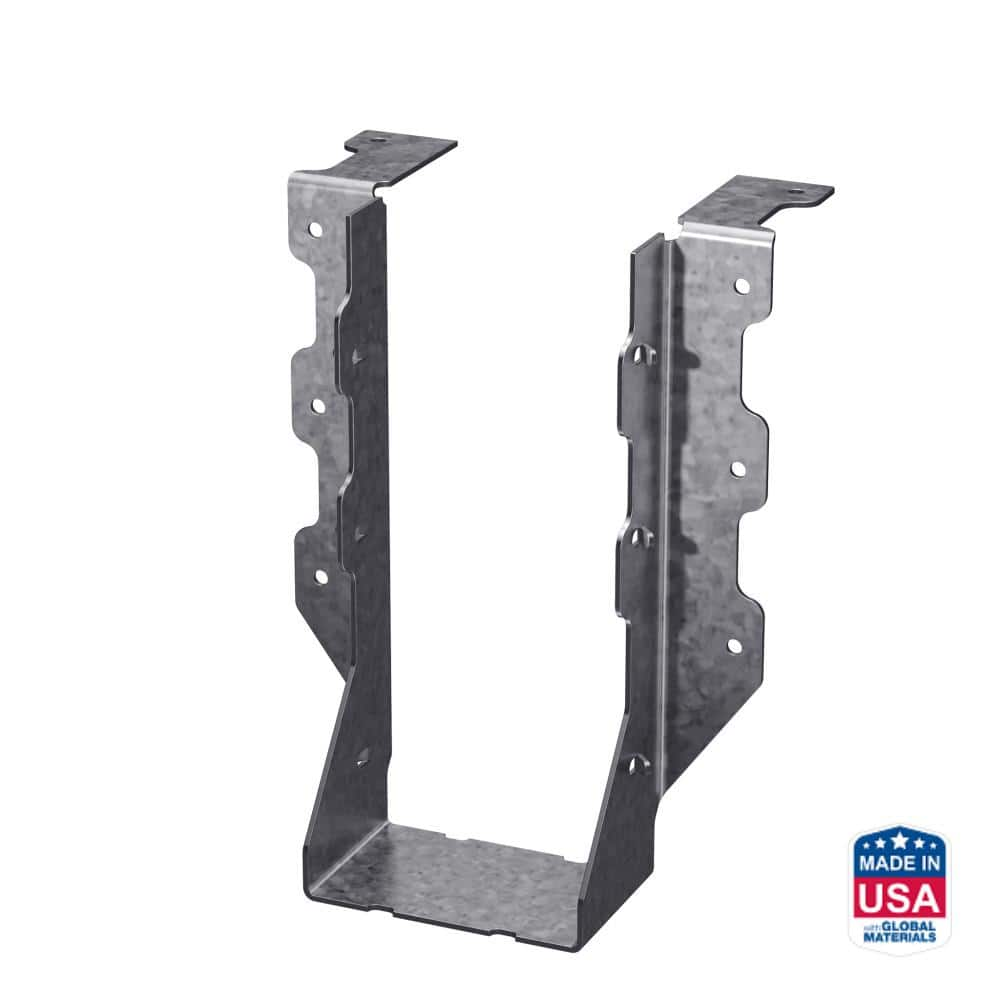

The Simpson Strong-Tie HUS28-2TF Joist Hanger is engineered for high-load applications, offering superior strength and stability in wood-to-wood connections. It is designed to provide essential support for double 2x8 joists, rafters, or beams, making it a reliable component for demanding structural projects. This hanger ensures optimal load distribution and a secure connection, enhancing the overall integrity of your construction.
  • Heavy-duty construction for high-load conditions
  • G90 galvanized coating for corrosion resistance

Features

  • Full U-shaped wrap for optimal load distribution
  • Optimized for solid sawn lumber
  • Top flange design for secure installation
  • Features an embossed top flange that provides additional connection strength
  • Designed with double-shear nailing combined with face-nailing for high loads

Includes

  • (1) Double 2x8 Top Flange Joist Hanger
Products specifications
Finish G90 Galvanized
Material Carbon Steel
Height 7-1/4 inch
Joist size Double 2 inch X 8 inch
Thickness 14 Gauge
Width 3-1/8 inch
Fasteners required Face -(8) .16in x 3.5in Nails; Joist -(6) .16
For Treated Lumber No
*
*
*
