Simpson Double 4X Adjustable Truss Hanger

Mfr.: Simpson Strong-Tie
Item #: I091936
Mfr. #: THA422-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $62.30
i h h

Description

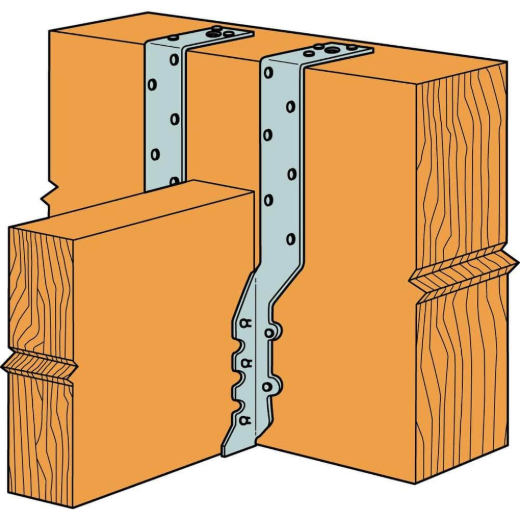

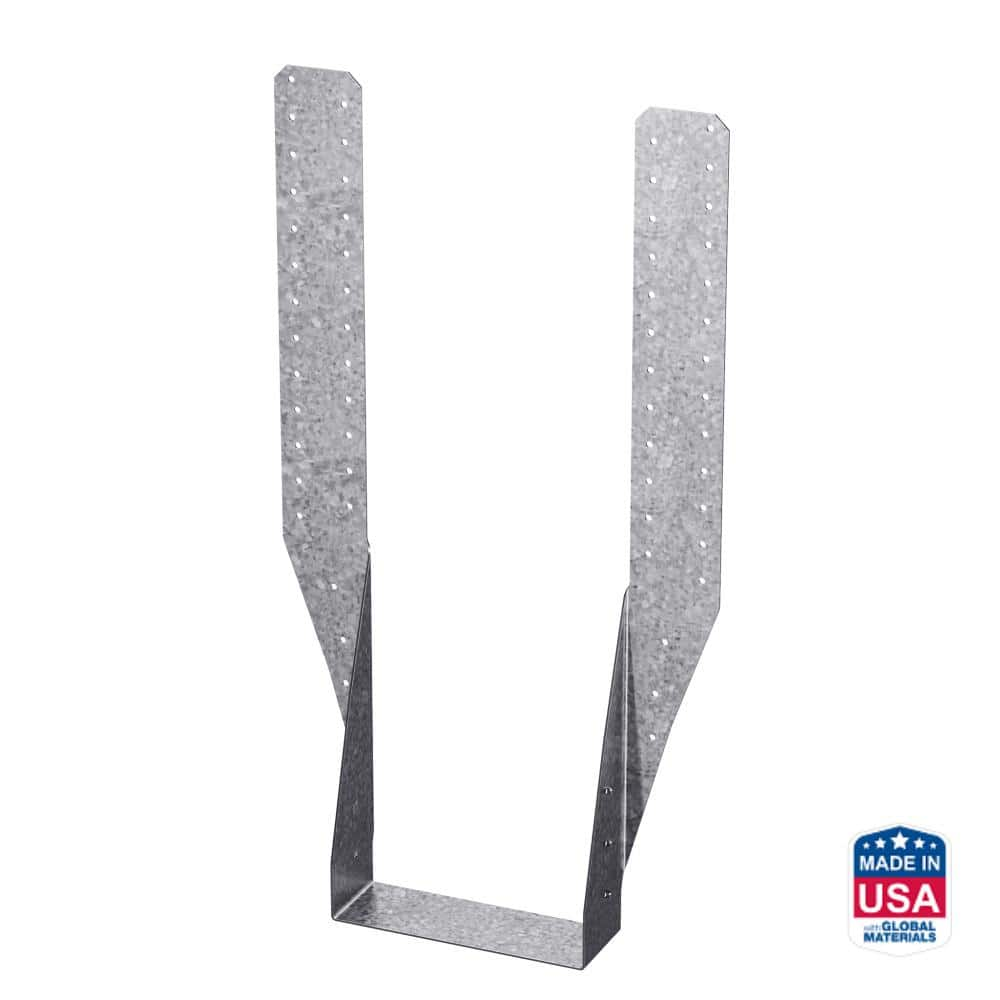

The Simpson Strong-Tie THA422-2 is a versatile, U-shaped adjustable truss hanger specifically engineered to support double 4x floor trusses. It features extra-long straps that provide significant height adjustability, allowing for field-formed top-flange installation or standard face-mount configurations. This hanger helps ensure structural integrity in complex framing applications and is finished with a G90 galvanized coating for enhanced corrosion resistance.
  • Extra-long straps for height adjustability
  • Dual top-flange or face-mount installation options

Features

  • Dense nail pattern for increased installation options
  • G90 Galvanized finish for durability and corrosion resistance

Includes

  • (1) THA422-2 Adjustable Truss Hanger
Products specifications
Material G90 Galvanized Steel
Gauge 14
Height 22-11/16 in
Width 7-1/4 in
Application Double 4x floor truss

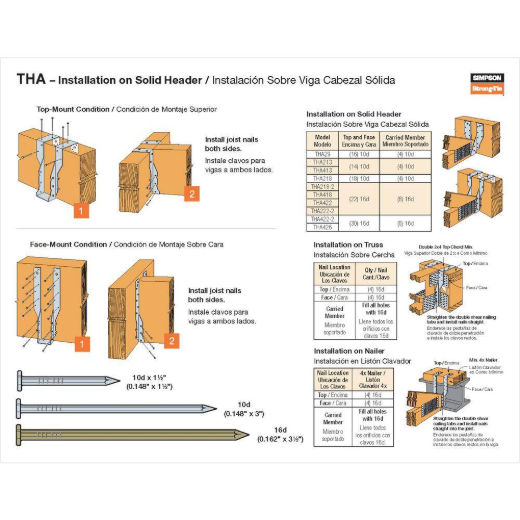

Installation Top-flange or Face-mount
*
*
*
