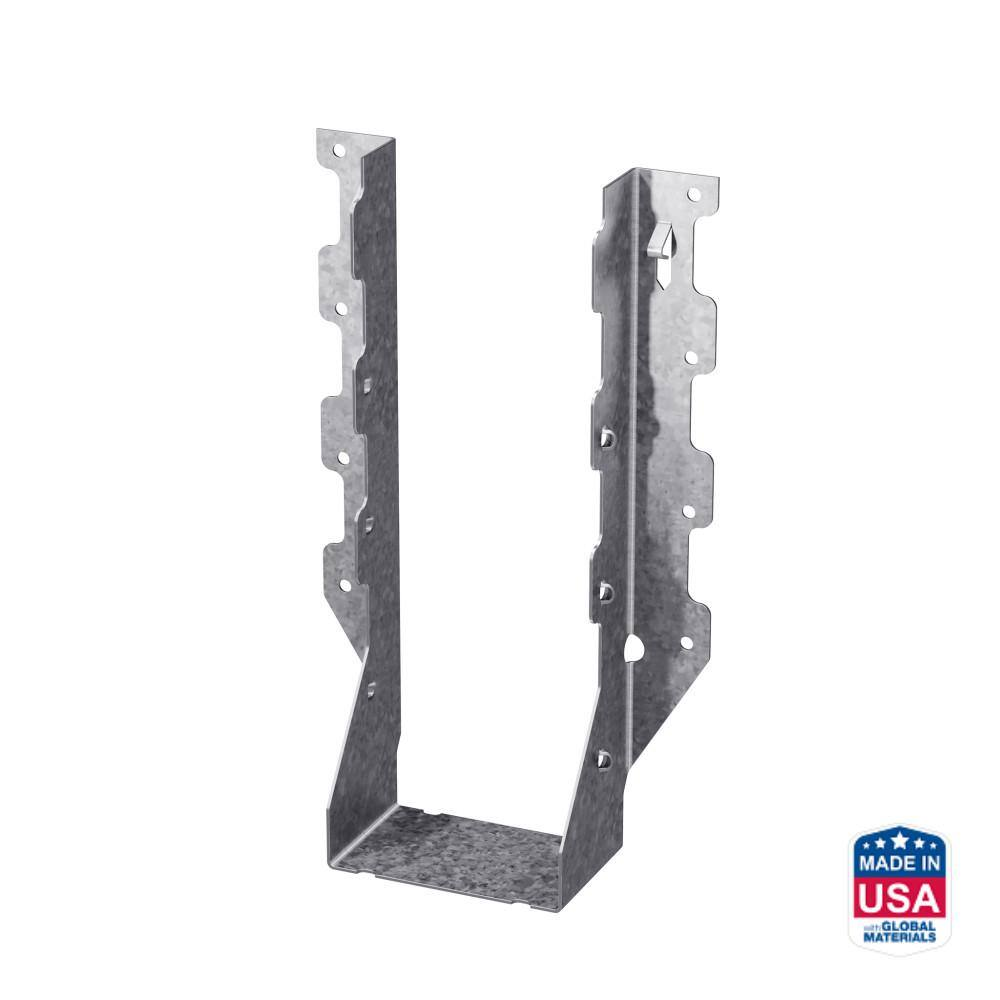

  • Simpson Double Shear Face Mount Hanger

Simpson Double Shear Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091800
Mfr. #: LUS210-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.33
i h h

Description

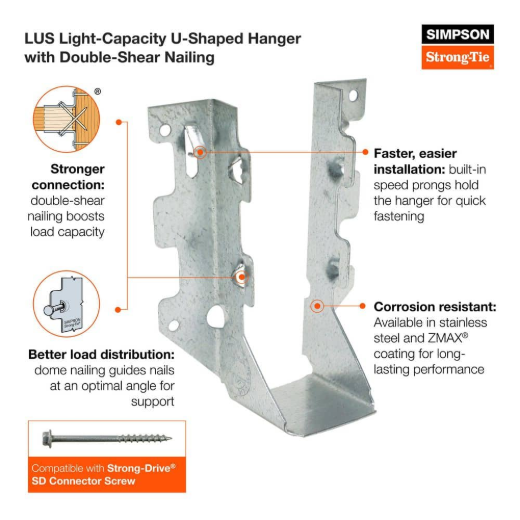

The Simpson Strong-Tie LUS Series hanger is an easy-to-install, economical solution designed for common lumber sizes, specifically supporting double 2x10, 2x12, and 2x14 joists. This widely used hanger features a patented double-shear nailing design that distributes the load through two points on each joist nail, providing greater strength. The design allows for fewer nails and faster installation, making it highly efficient for framing applications.
  • Patented double-shear nailing design for greater strength
  • Speed prongs for temporary positioning and easy installation

Features

  • Angled joist nailing makes installation easier in tight spaces.
  • Manufactured from 18-gauge steel for structural durability.
  • Available in galvanized or ZMAX coating for extra corrosion resistance.
Products specifications
Material 18-gauge Steel
Mounting Type Face Mount
Finish Galvanized or ZMAX
Joist Size Double 2x10, 2x12, 2x14
Fastener Type 16d common nails or #10 SD screws
*
*
*
