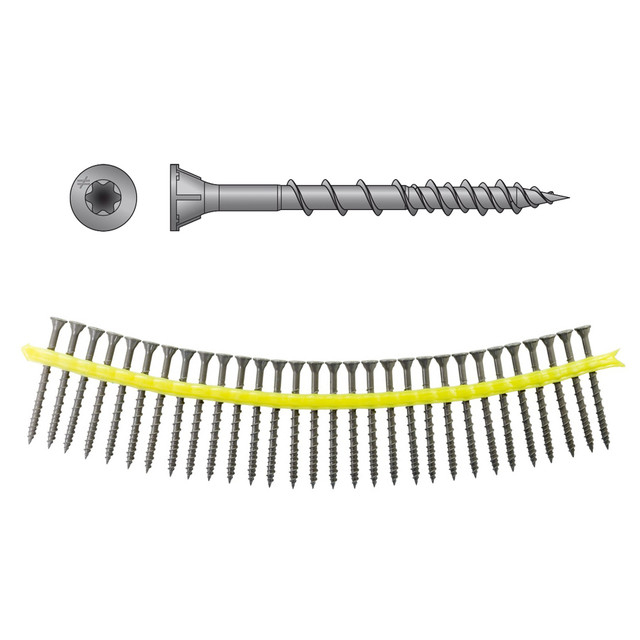

Simpson WSVF - #9 x 2" QuikGuard Strong-Drive WSV Subfloor Screw - 2000/box

Item #: I054691
Mfr. #: WSVF2S
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: Call for pricing
i h h

Description

The Strong-Drive WSVF Subfloor screw is an available variant with a gray Quik Guard® coating that is recognized for corrosion resistance in IAPMO UES ER-192 for Exposures 1 and 3 as described in ICC-ES AC257. Like the WSV Subfloor screw, the WSVF Subfloor screws are designed for dry service applications. The coating system on the WSVF screws will provide corrosion resistance for use with wood and wood-based materials in dry service where the wood and wood-based materials have treatment retentions typical of AWPA Use Categories 1 to 4A and fire-retardant-treated wood and wood-based materials that are recognized in an evaluation report where corrosion effects of the fire-retardant chemical are referenced to code prescribed protection systems for carbon steel fasteners.

Features

  • Redesigned tip and thread pattern provides easy starts and up to 25% less torque while driving1 — makes for up to 20% faster driving2
  • Less installation torque also means less wear on tools and more screws driven per battery charge
  • Deep 6-lobe recessed ribbed head provides clean countersinking and more secure bit retention for fewer cam-outs
  • The holding power of WSV screws reduces the gaps between the joist and subfloor that cause floor squeaks
  • WSV screws can be easily backed out, allowing for future access to floor cavities
  • 6-lobe T25 drive bit (replacement bit BITTX25)
Products specifications
Anchor Diameter #9
Anchor Length 2 in
Application Wood Subfloor to Wood Joist (Eliminates Squeaks)
Bit Tip Included Yes (T25 Torx)
Code Listing ICC-ES ESR-2236
Collated Yes (Strip)
Country of Origin Varies (subject to change)
Finish / Coating Quik Guard
Head Style Pancake / Low-Profile Bugle
Pieces per Pack 2000 per box
*
*
*
