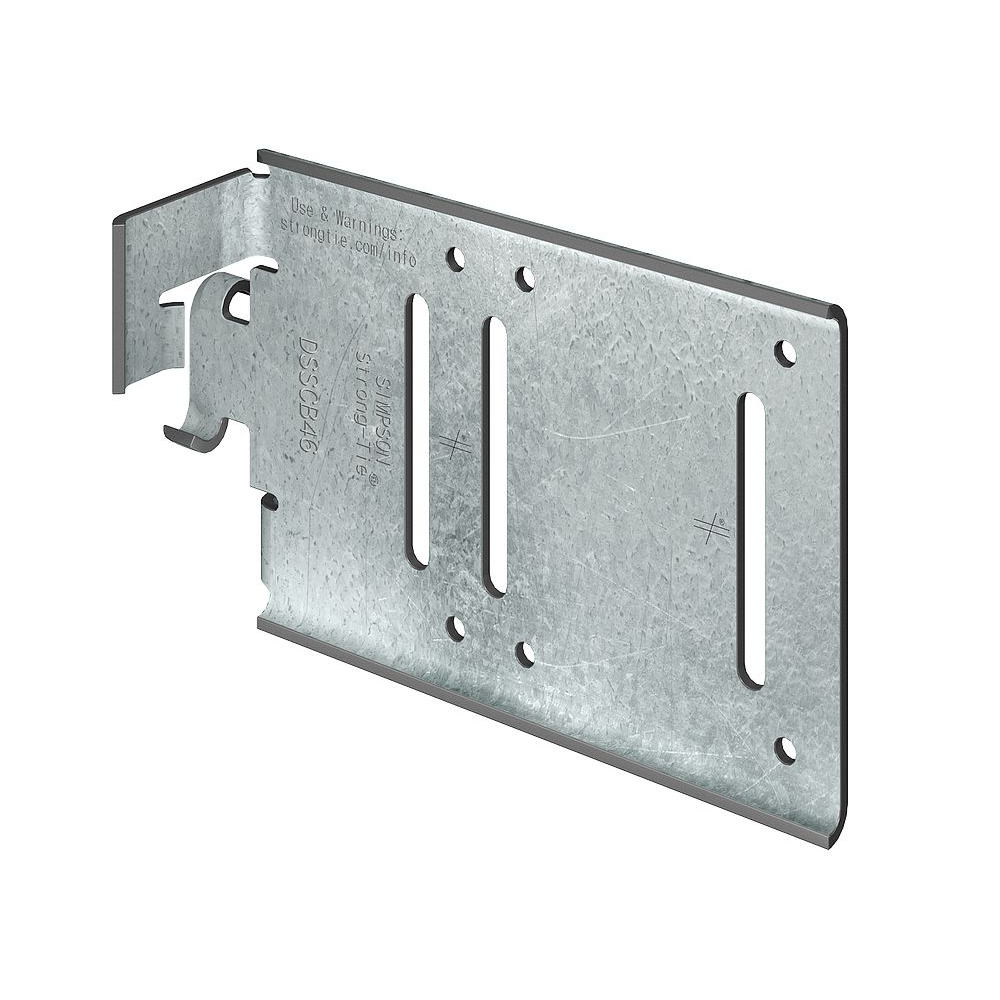

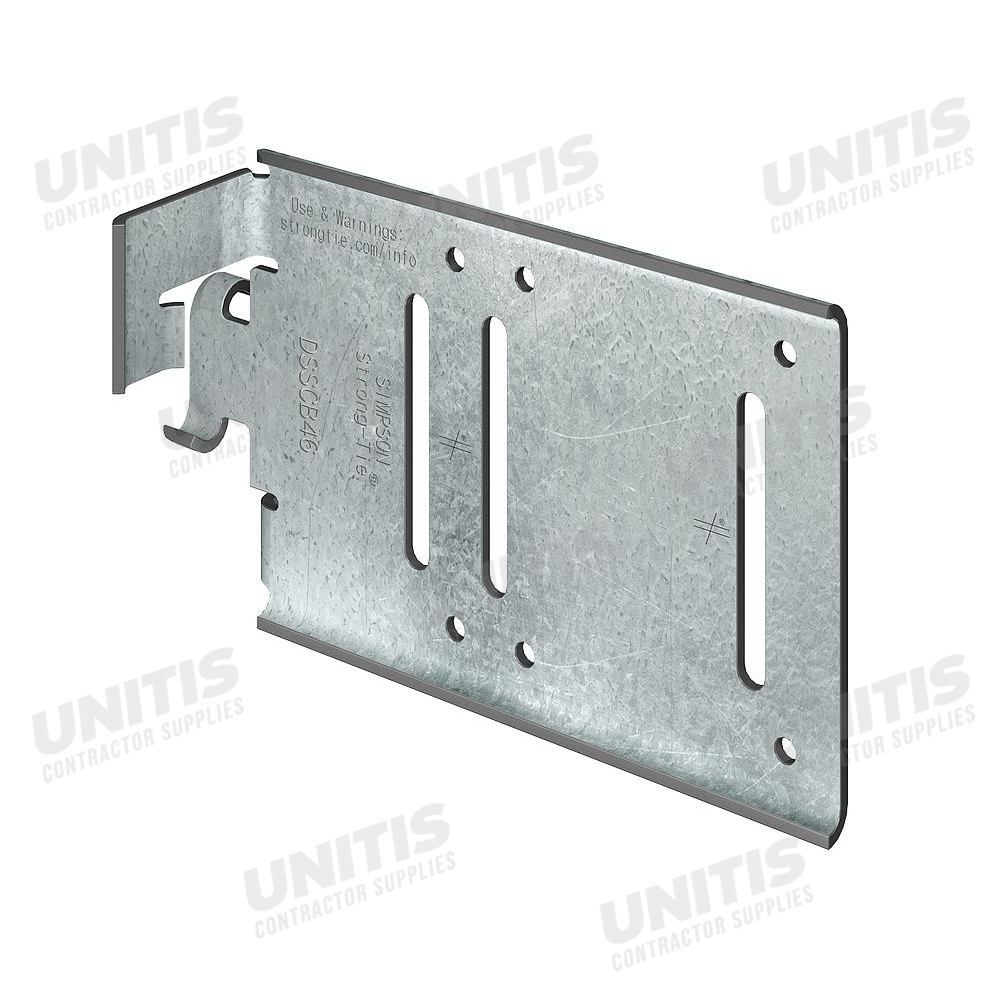

Simpson DSSCB 4" x 8" Bypass Framing Drift Strut Connector w/ Screws - 25/box

Mfr.: Simpson Strong-Tie
Item #: I100402
Mfr. #: DSSCB48-KT25
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $427.42
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Tie DSSCB is used to anchor cold-formed steel bypass framing to the edge of a floor slab in order to accommodate horizontal building drift. The DSSCB simplifies installation by allowing installers for panelized construction to install finished panels while working off the top of the slab without the need to predrill or preinstall anchors for each clip. It also eliminates the coordination difficulties associated with pre-anchorage of standard bypass clips. With prepunched slots and round holes, the DSSCB is a dual-function connector that can be used for slide-clip and fixed-clip applications.
  • Prepunched slots provide a full 1 in. of both upward and downward deflection
  • Precision-manufactured shouldered screws prevent overdriving and ensure proper function
  • Works with 7/8-in. and 1-5/8-in. strut channels (Unistrut, PHD, B-Line)
  • Maximum slide-clip standoff distance: 3-1/8 in. for 7/8-in. struts, 3-7/8 in. for 1-5/8-in. struts, 2-1/4 in. for concrete inserts
  • Struts can be mechanically anchored, welded or cast in place
  • Tabulated design values based on assembly testing

Features

  • Prepunched slots provide a full 1 in. of both upward and downward deflection
  • Precision-manufactured shouldered screws, provided with DSSCB connectors, are designed to prevent overdriving and to ensure the clip functions properly
  • Works with 7/8-in. and 1-5/8-in. strut channels; common manufactured brands are Unistrut, PHD and B-Line; struts are not supplied by Simpson Strong-Tie
  • The maximum slide-clip standoff distance is 3-1/8 in. for 7/8-in. struts, 3-7/8 in. for 1-5/8-in. struts and 2-1/4 in. for concrete inserts
  • Depending on the application and the designer's specifications, struts can be either mechanically anchored, welded or cast in place
  • Tabulated design values are based on assembly testing to mitigate risk for designers, engineers and architects

Includes

  • DSSCB connectors
  • Precision-manufactured shouldered screws

Specifications


Deflection capacity1 inch upward and 1 inch downwardCompatible strut sizes7/8-in. and 1-5/8-in.
Maximum slide-clip standoff distance (78-in. stru3-1/8 inchMaximum slide-clip standoff distance (1-58-in. st3-7/8 inch
Maximum slide-clip standoff distance (concrete in2-1/4 inch
*
*
*
