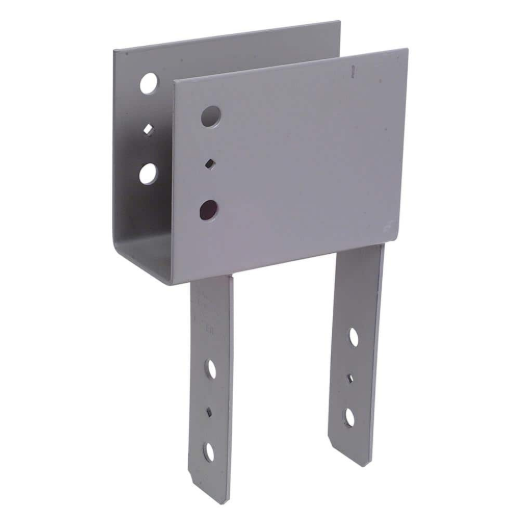

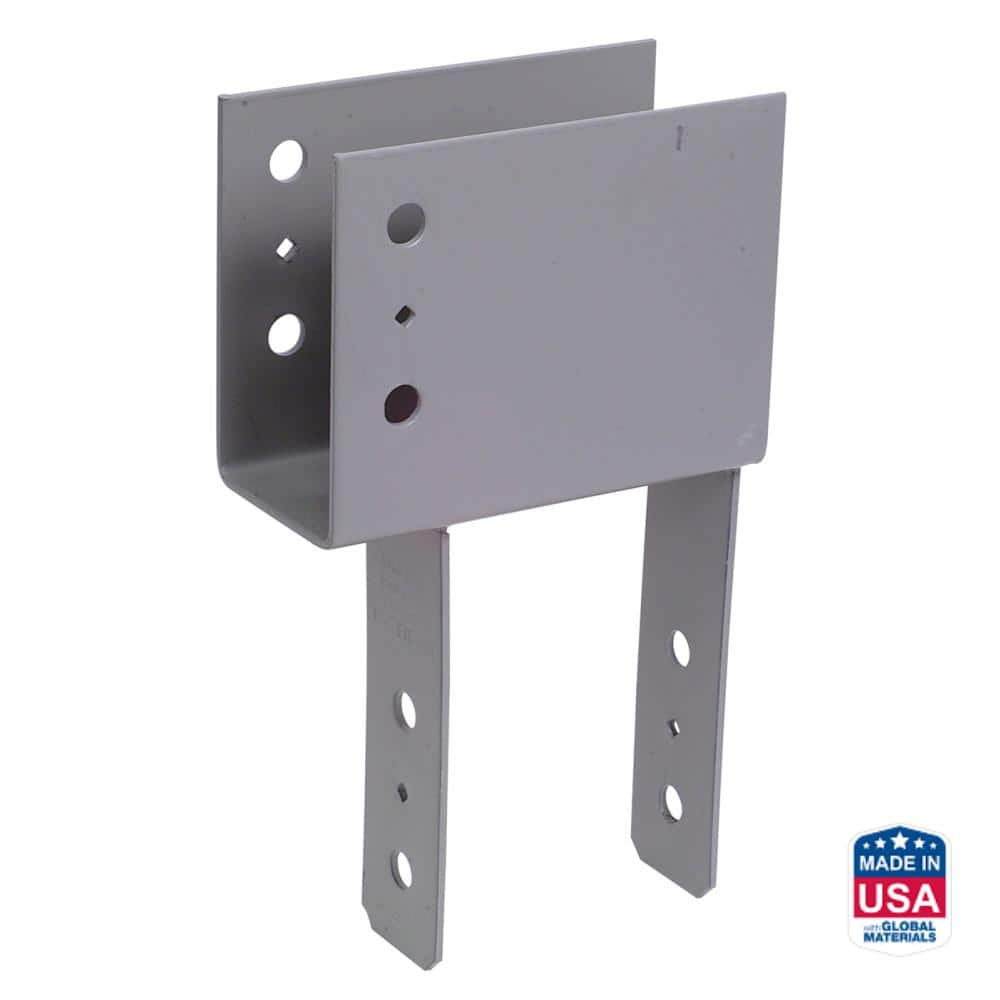

Simpson ECC46 End Column Cap for 4x Beam, 6x Post

Mfr.: Simpson Strong-Tie
Item #: I092713
Mfr. #: ECC46
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $152.48
i h h

Description

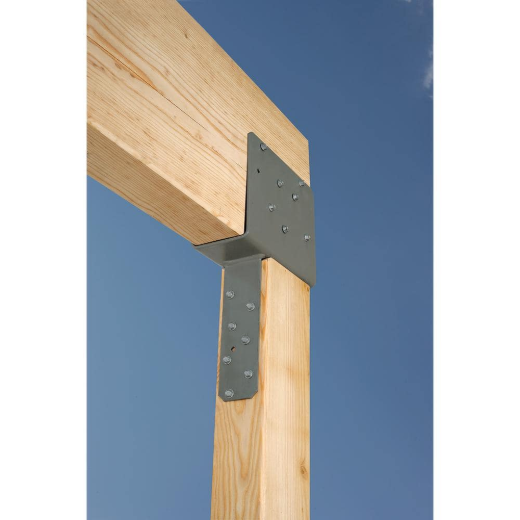

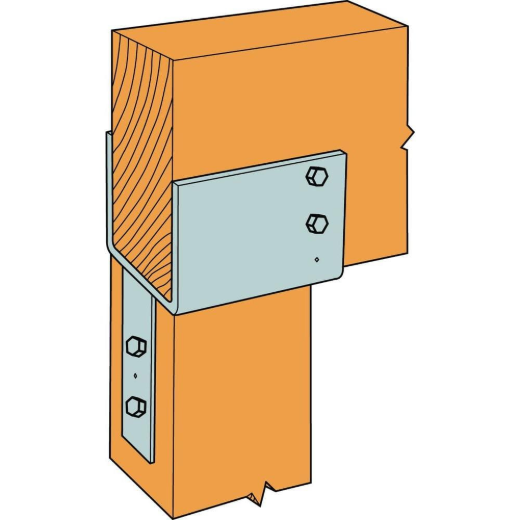

The Simpson Strong-Tie ECC46 End Column Cap is engineered to provide robust column-to-beam connections in end-of-beam applications within wood construction. Its design features a seat that extends beyond the column, offering an increased bearing surface area to effectively distribute loads and enhance connection stability. This component is crucial for ensuring the structural integrity of wood framing projects, offering reliable support and strength.
  • End Column Cap
  • For 4x Beam, 6x Post

Features

  • Certified welds for strength and loading confidence.
  • Increased uplift loads for seismic or wind resistance.
  • Bolt spacing complies with NDS code for optimal performance.
  • Diamond holes allow for temporary fastening.

Includes

  • 1 x ECC46 End Column Cap (Gray Paint)
Products specifications
Material 7 gauge steel
Finish Simpson Strong-Tie Gray Paint
Beam size 4x
Post size 6x
Thickness 7 Gauge
Fasteners required Four 5/8 inch Machine Bolts
*
*
*
