Simpson End Column Cap

Mfr.: Simpson Strong-Tie
Item #: I092727
Mfr. #: ECC66
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $162.29
i h h

Description

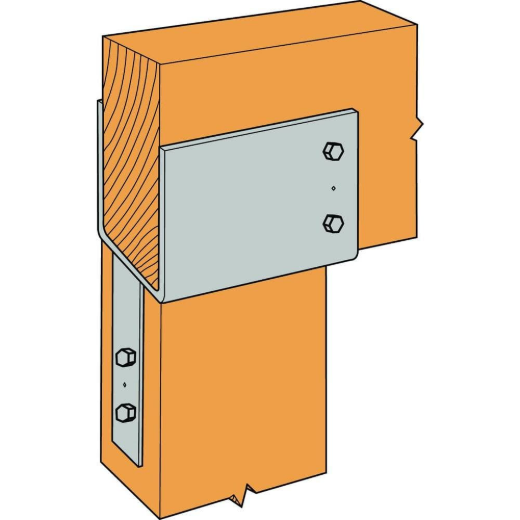

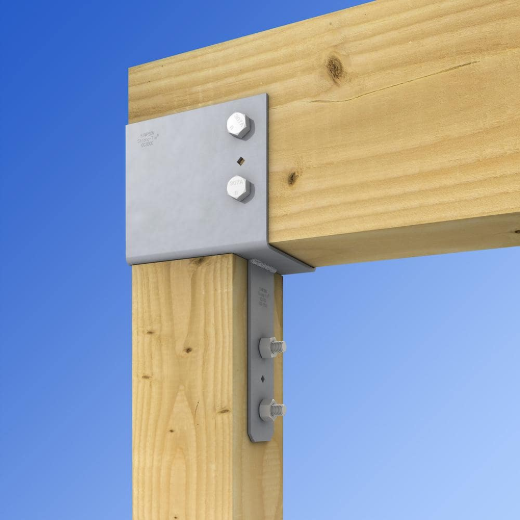

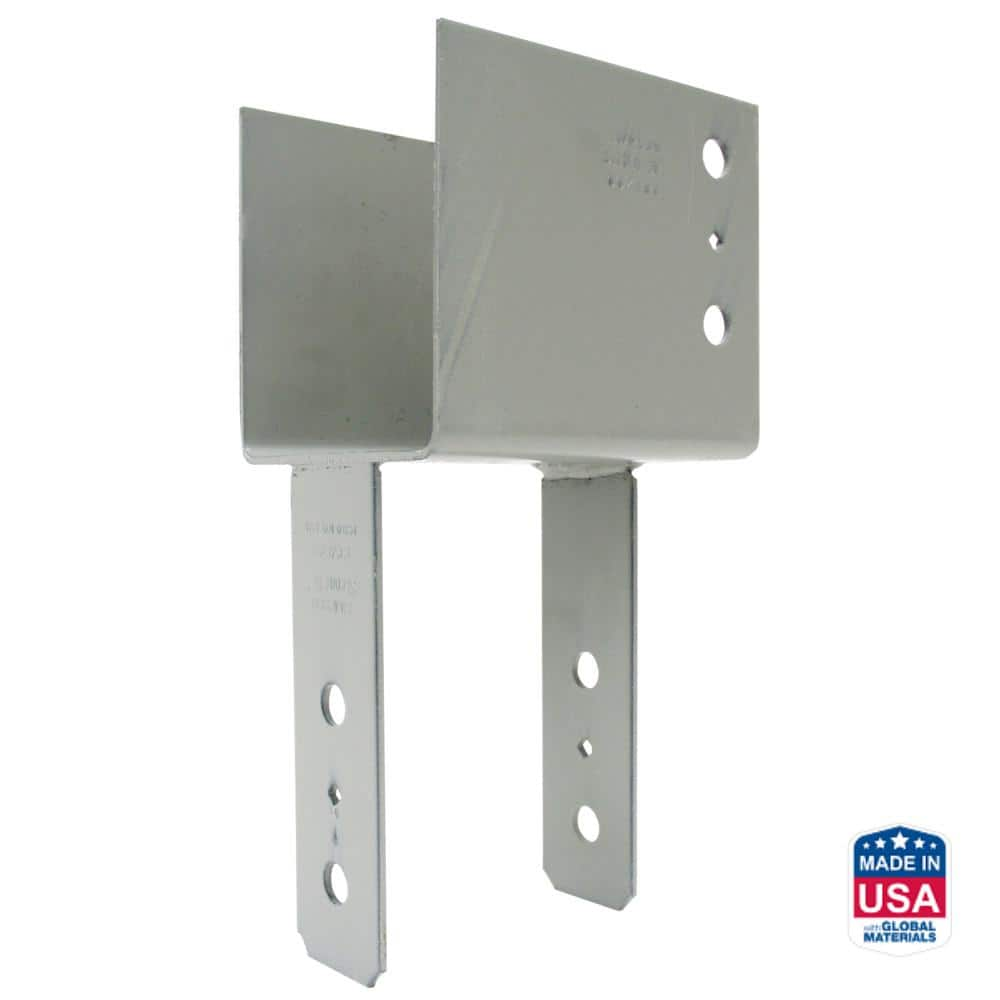

The Simpson Strong-Tie ECC66 End Column Cap is engineered to provide robust and reliable connections between columns and beams in wood construction. Its innovative design enhances structural integrity by offering a strong end-of-beam connection and distributing loads effectively through an extended seat. Crafted from durable 7-gauge steel with a gray paint finish, this column cap ensures lasting strength and stability for your projects, meeting rigorous building standards.
  • End Column Cap
  • For 6x Beam and 6x Post

Features

  • Provides strong end-of-beam connection for column-to-beams.
  • Extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Made from durable 7-gauge steel.
  • Finished with Gray Paint coating.
  • Certified welds for strength and loading.
  • Increased uplift loads for earthquake or wind loading.
  • Features diamond holes for temporary fastening during installation.
  • Bolt spacing meets NDS code requirements.

Includes

  • (1) End Column Cap for 6x Beam and 6x Post
Products specifications
Material Steel
Beam size 6x
Post size 6x
Finish Gray Paint
Gauge 7
Fasteners required Beam:(2)5/8inBolts,Post:(2)5/8inBolts
For Treated Lumber No
*
*
*
