Simpson Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091571
Mfr. #: HU9
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $22.89
i h h

Description

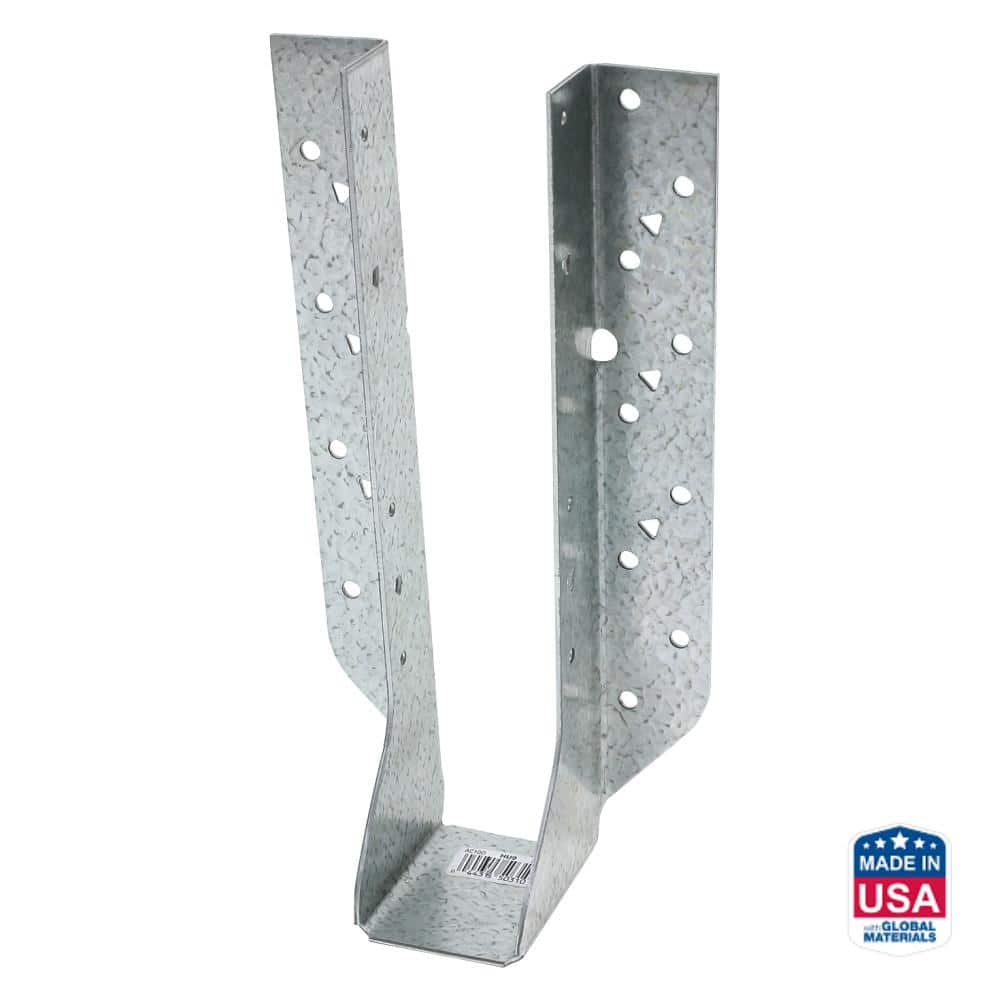

The Simpson Strong-Tie HU9 is a heavy-duty, face-mount joist hanger designed to provide robust structural support for engineered wood, solid sawn lumber, and cold-formed steel joists. Crafted from 14-gauge steel with a G90 galvanized finish, these hangers offer superior durability and reliable corrosion resistance for various construction applications. They are engineered to comply with building codes, ensuring strength and safety in residential and commercial framing projects.
  • Heavy-duty 14-gauge steel construction
  • G90 galvanized finish for corrosion resistance
  • Code-compliant structural design

Features

  • Versatile application for wood-to-wood or wood-to-masonry connections
  • Includes triangular holes for additional load capacity

Includes

  • 1 Galvanized Face-Mount Joist Hanger
Products specifications
Finish G90 Galvanized, G90 Galvanized
Material Carbon Steel, Carbon Steel
Thickness 14 Gauge, 14 Gauge
Joist Size 1-3/4 inch x 9-1/2 inch, 1-3/4 inch x 9-1/2 inch
Height 9-5/16 inch, 9-5/16 inch
Face Fasteners (24) 0.162 inch x 3-1/2 inch Nails, (24) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (10) 0.148 inch x 1-1/2 inch Nails, (10) 0.148 inch x 1-1/2 inch Nails
*
*
*
