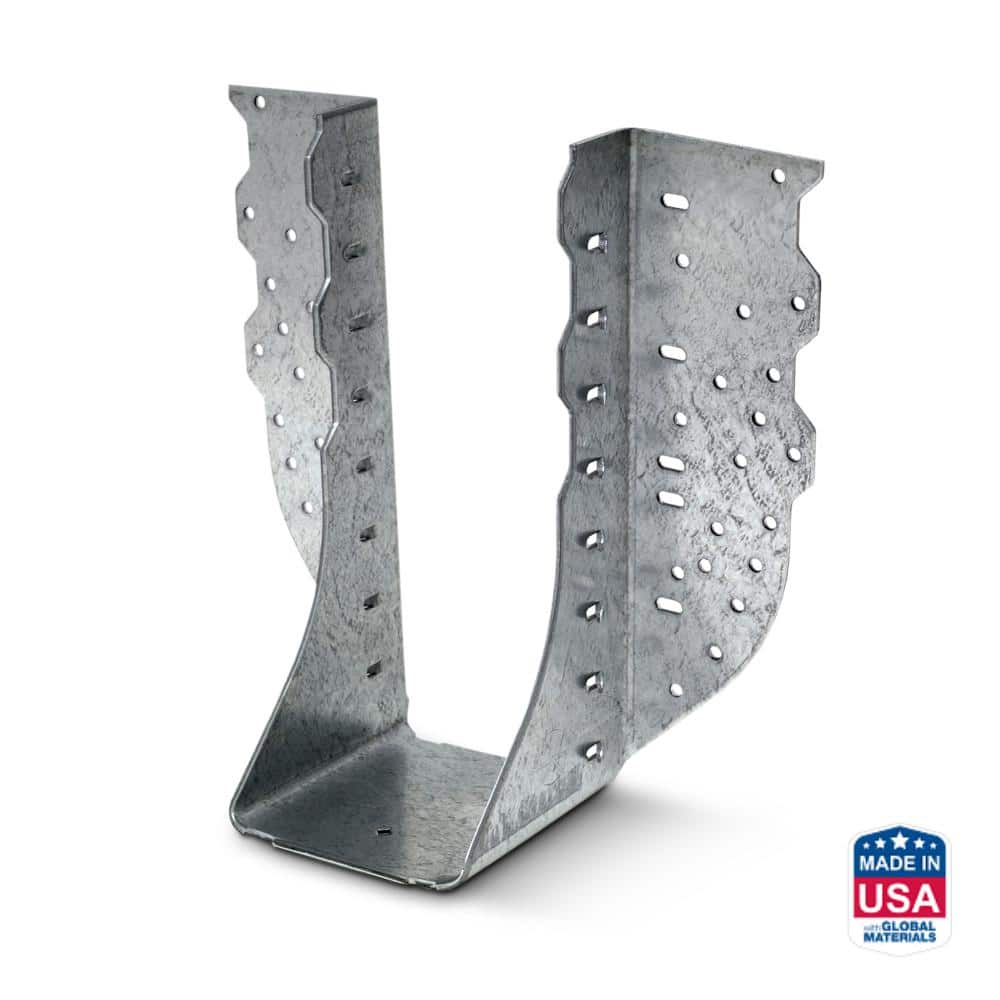

Simpson Face Mount Hanger HGUS410

Mfr.: Simpson Strong-Tie
Item #: I091297
Mfr. #: HGUS410
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $69.60
i h h

Description

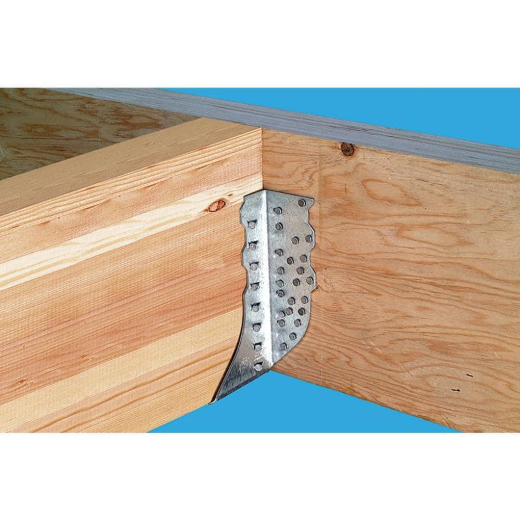

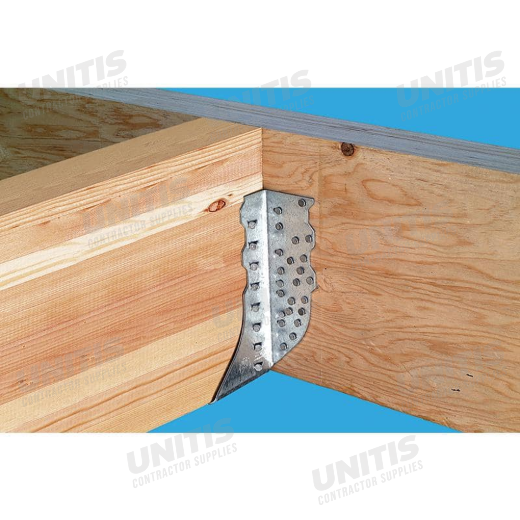

The Simpson Strong-Tie HGUS410 is an extra-heavy-capacity face mount hanger engineered for demanding structural girder support applications. It utilizes innovative double-shear nailing to distribute loads through two points on each joist nail, significantly increasing overall strength and stability. This value-engineered solution provides high load-carrying capabilities at an economical price point, making it suitable for heavy-duty framing projects.
  • Double-Shear Nailing
  • G90 Galvanized Finish

Features

  • Crafted from 12-gauge steel for high load capacity.
  • Can be installed after the beam is secured in place.
  • Tested, load-rated, and code-compliant design.

Includes

  • HGUS410 Face Mount Hanger
Products specifications
Model No HGUS410
Material 12-Gauge Steel
Finish Galvanized (G90)
Joist Size 4x10
Seat Width 3-5/8 inch
Hanger Height 9-1/16 inch
Installation Type Face Mount
Series HGUS
*
*
*
