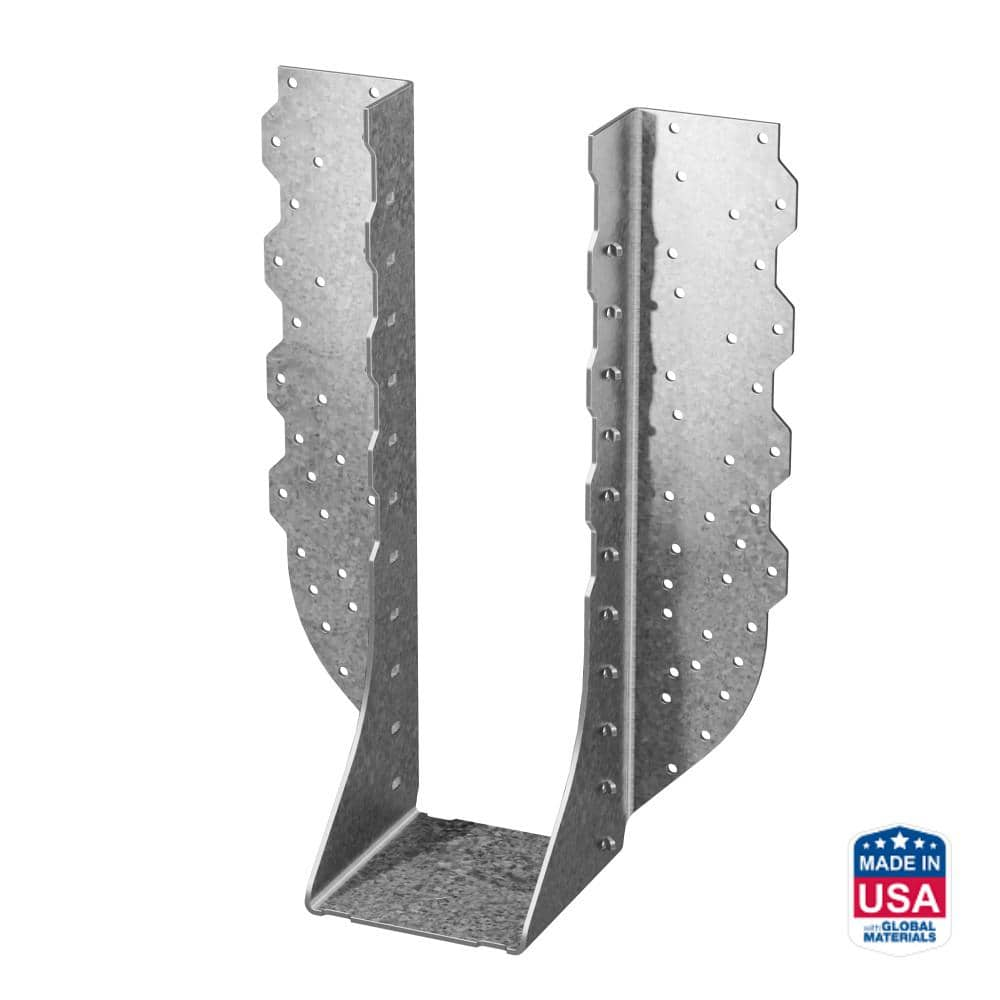

Simpson Face Mount Hanger HGUS414

Mfr.: Simpson Strong-Tie
Item #: I091299
Mfr. #: HGUS414
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $89.85
i h h

Description

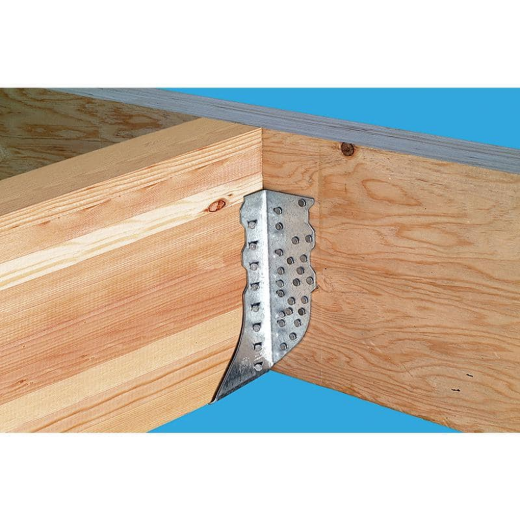

The Simpson Strong-Tie HGUS414 is an extra-heavy-capacity face-mount hanger designed for demanding structural applications requiring robust girder support. This girder hanger features patented double-shear nailing that distributes the load through two points on each joist nail for significantly greater strength and stability. Value-engineered for high-load performance, the HGUS series provides a reliable and economical solution for heavy-duty timber connections in residential and commercial projects. The versatile design allows for easier installation even after the beam has been positioned in place.
  • Extra-Heavy Load Capacity
  • Double-Shear Nailing

Features

  • Distributes loads through two points on each nail for added strength.

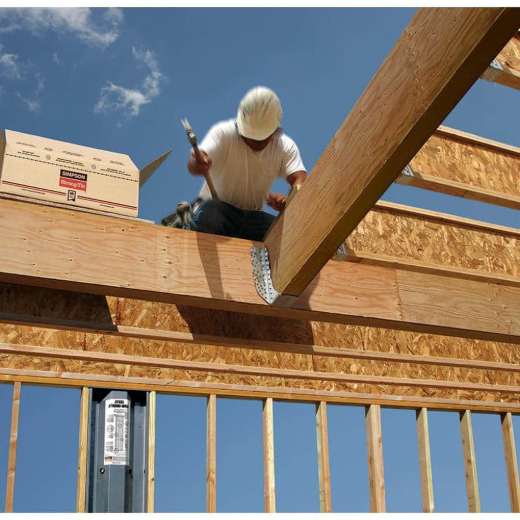

  • Can be installed after the beam is secured in place.
  • Manufactured from 12-gauge steel for structural durability.
  • G90 galvanized finish for superior corrosion resistance.

Includes

  • (1) HGUS414 Face Mount Hanger
Products specifications
Model Number HGUS414
Joist Size 4x14
Material 12-Gauge Steel
Finish G90 Galvanized
Hanger Width 3-5/8 inch
Hanger Height 12-7/16 inch
Hanger Depth 4 inch
Fastener Type 16d Common Nails
*
*
*
