Simpson Face Mount Hanger HGUS48

Mfr.: Simpson Strong-Tie
Item #: I091301
Mfr. #: HGUS48
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $54.32
i h h

Description

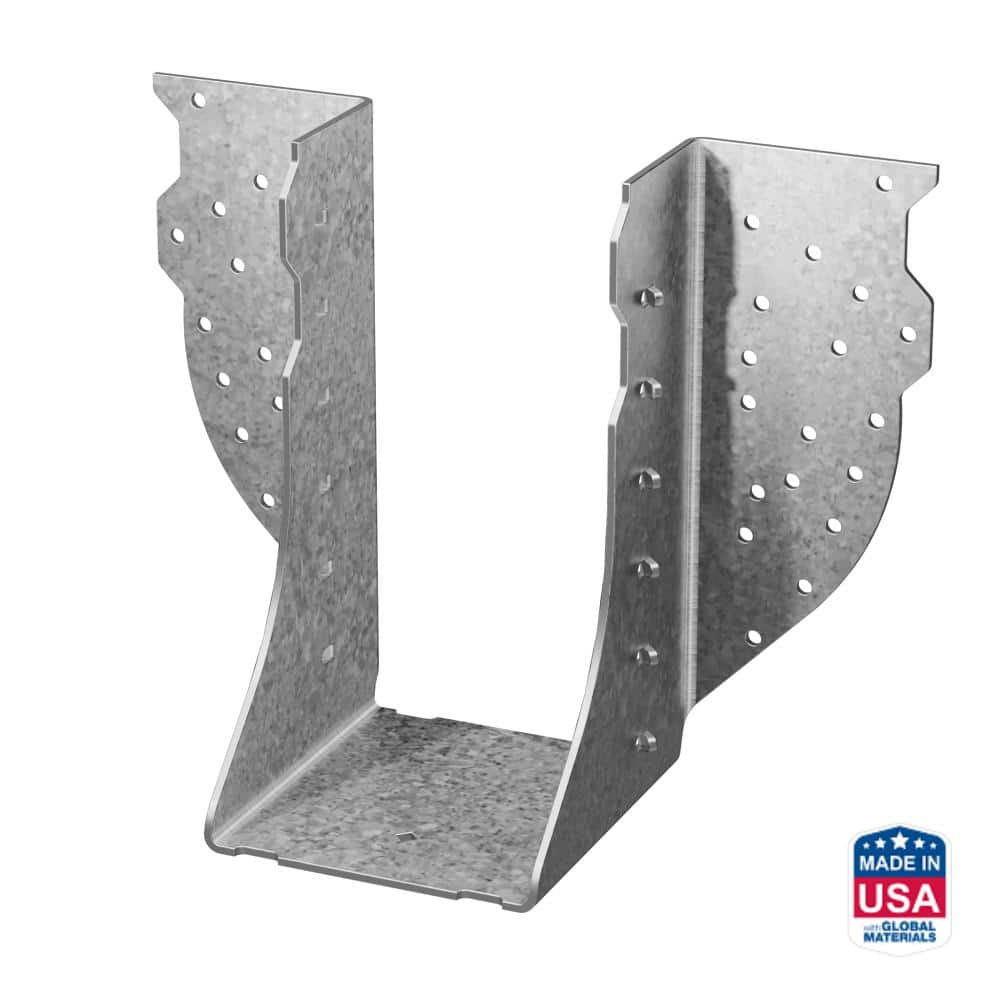

The Simpson Strong-Tie HGUS48 is an extra-heavy-capacity face-mount hanger engineered for demanding structural girder applications. It features a patented double-shear nailing design that distributes the load through two points on each joist nail, significantly enhancing connection strength and stability. This value-engineered solution provides a robust and economical way to support high-load beams in both residential and commercial construction while allowing for versatile installation after the beam is secured in place.
  • Double-Shear Nailing
  • G90 Galvanized Finish
  • 12-Gauge Steel
  • High Load Capacity

Features

  • Patented double-shear nailing distributes loads through two points on each joist nail for superior strength.
  • G90 galvanized coating offers excellent corrosion resistance for long-term durability.
  • Designed specifically for applications where higher load values are required for girder support.
  • Code-listed and tested for reliable performance in heavy-duty timber framing.

Includes

  • (1) HGUS48 Face-Mount Hanger
Products specifications
Model No. HGUS48
Material 12-Gauge Steel
Finish G90 Galvanized
Joist Size 4x8
Hanger Width 3-5/8 inch
Hanger Height 7-1/16 inch
Mount Type Face Mount
Nailing Double Shear
*
*
*
