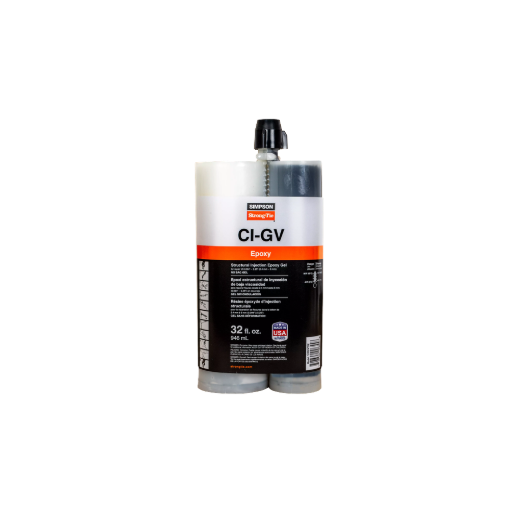

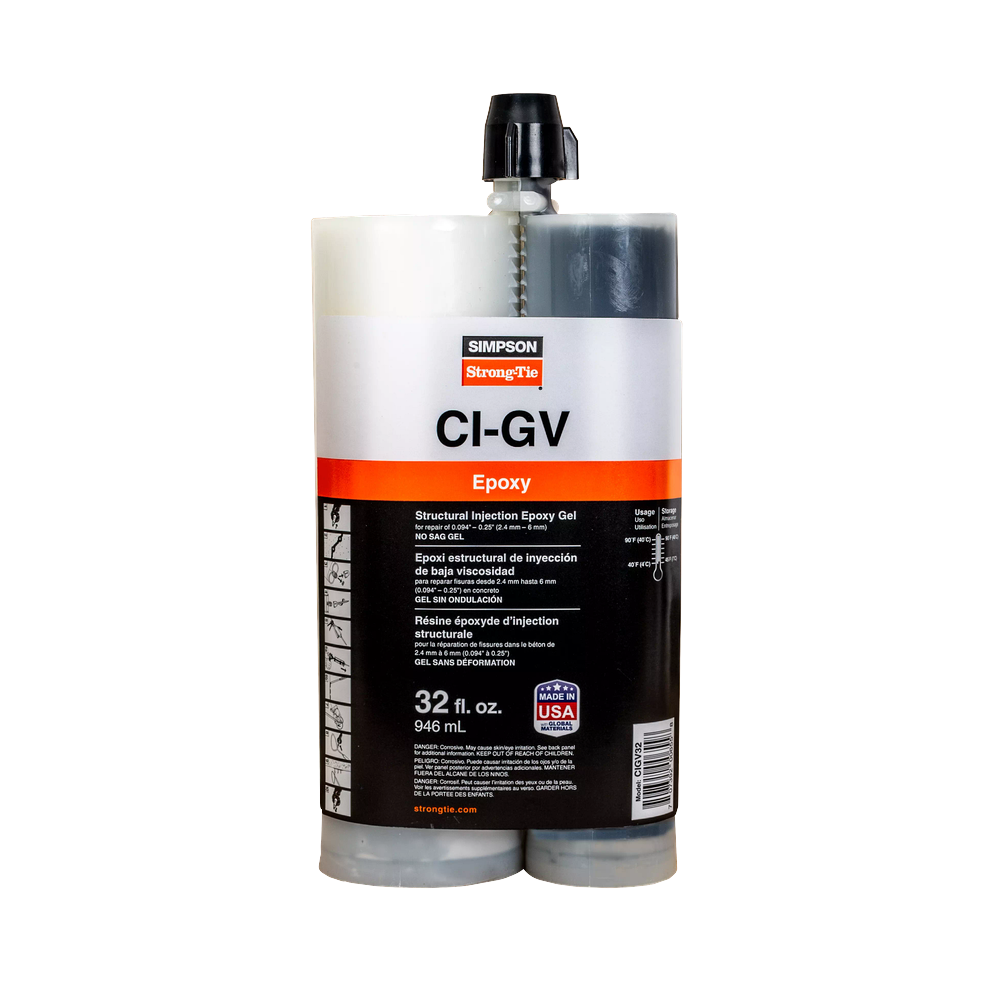

  • Simpson CI-GV Structural Injection Epoxy Gel (32 oz.)

Simpson CI-GV Structural Injection Epoxy Gel (32 oz.)

Mfr.: Simpson Strong-Tie
Item #: I092432
Mfr. #: CIGV32
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $102.85
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Simpson Strong-Tie CI-GV structural injection epoxy gel is a two-component, high-modulus, high-solids, moisture-tolerant, thixotropic epoxy designed for pressure injection of concrete cracks. CI-GV is suitable for vertical and horizontal crack sealing and general concrete repair applications when substrate temperatures are between 40F (4C)-90F (32C). Available in three-gallon bulk kits or convenient side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool.
  • Meets ASTM C881 & AASHTO M235, Type I/II/V, Grade 3, Class B and Type I/IV and II/V, Grade 3, Class C
  • Chemically bonds with concrete for structural repair, seals cracks from moisture, protects rebar from corrosion
  • Gel-viscosity moisture-tolerant; can be used on dry and damp surfaces
  • Decreases in viscosity under pressure for increased flowability
  • Non-shrink and resistant to oils, salts and mild chemicals
  • Can be used with metered pressure-injection equipment

Features

  • Meets the requirements of ASTM C881 & AASHTO M235, Type I/II/V, Grade 3, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 3, Class C
  • Chemically bonds with the concrete to provide a structural repair; CI-GV seals the crack from moisture, protecting rebar in the concrete from corrosion
  • Gel-viscosity moisture-tolerant; can be used on dry and damp surfaces
  • Decreases in viscosity under pressure for increased flowability
  • Non-shrink and resistant to oils, salts and mild chemicals
  • Can be used with metered pressure-injection equipment

Includes

  • Three-gallon bulk kits
  • Side-by-side cartridges
  • Static mixing nozzle

Specifications


Substrate Temperature Range40 degF (4 degC)-90 degF (32 degC)StandardsASTM C881 & AASHTO M235, Type I/II/V, Grade 3, Cla
*
*
*
