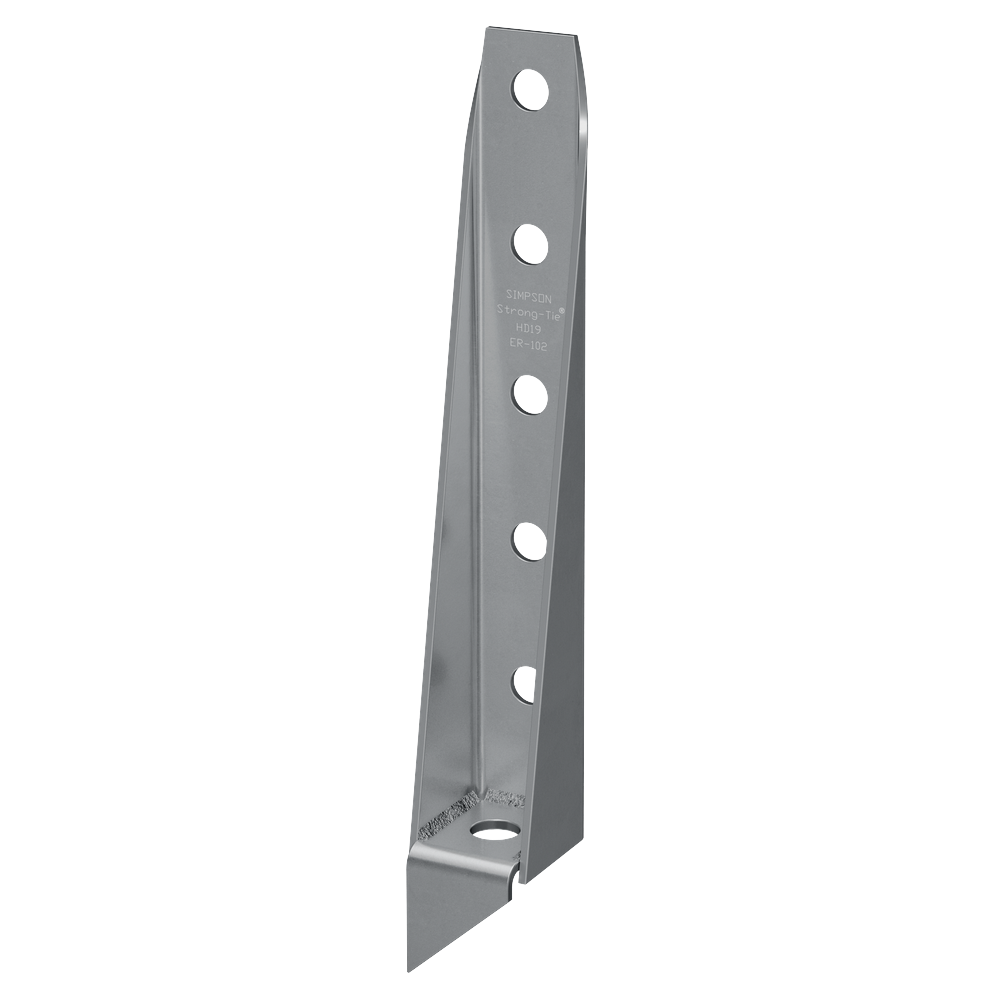

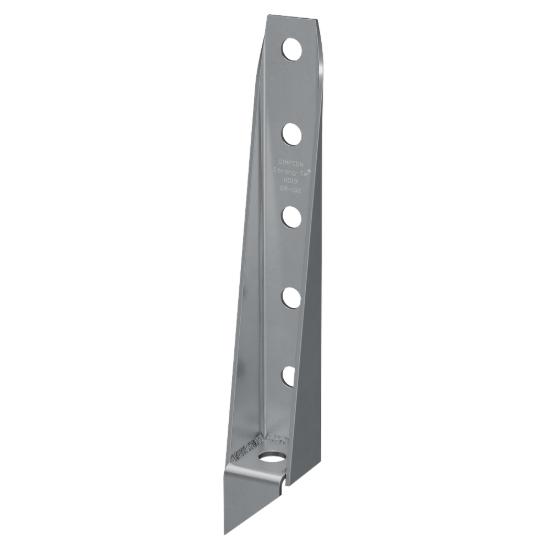

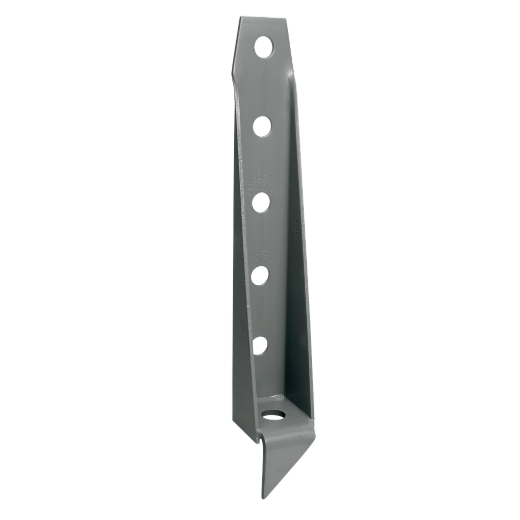

Simpson HD 24-1/2" Bolted Holdown

Mfr.: Simpson Strong-Tie
Item #: I024267
Mfr. #: HD19
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $298.16
i h h

Description

The Simpson Strong-Tie HD holdown is designed to create high allowable loads for both vertical and horizontal applications in wood construction. This holdown is installed with bolts into posts or columns. The HD can be installed back to back when eccentricity is an issue.
  • High-capacity low-deflection holdown
  • Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
  • May be raised and installed off the sill plate

Features

  • High-capacity low-deflection holdown
  • Self-jigging, ensuring the code-required minimum of seven bolt diameters from the end of the post when installed flush with the sill plate
  • May be raised and installed off the sill plate
  • Width: 3-1/2 in.
  • Height: 24-1/2 in.
  • Base: 3/8 in. steel

Specifications


Width3-1/2 inchHeight24-1/2 inch
Base3/8 inch steel
*
*
*
