Simpson Header Hanger 4X

Mfr.: Simpson Strong-Tie
Item #: I091320
Mfr. #: HH4
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $16.20
i h h

Description

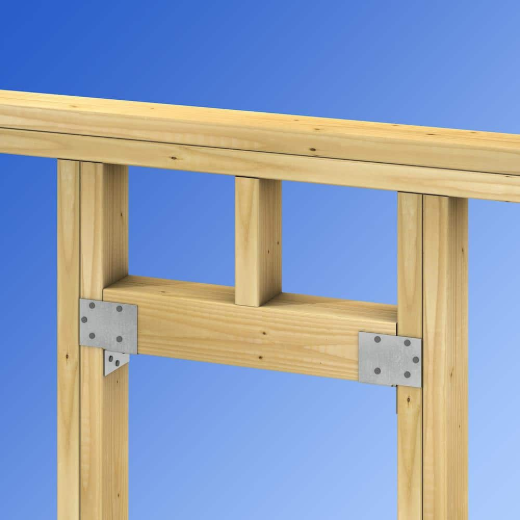

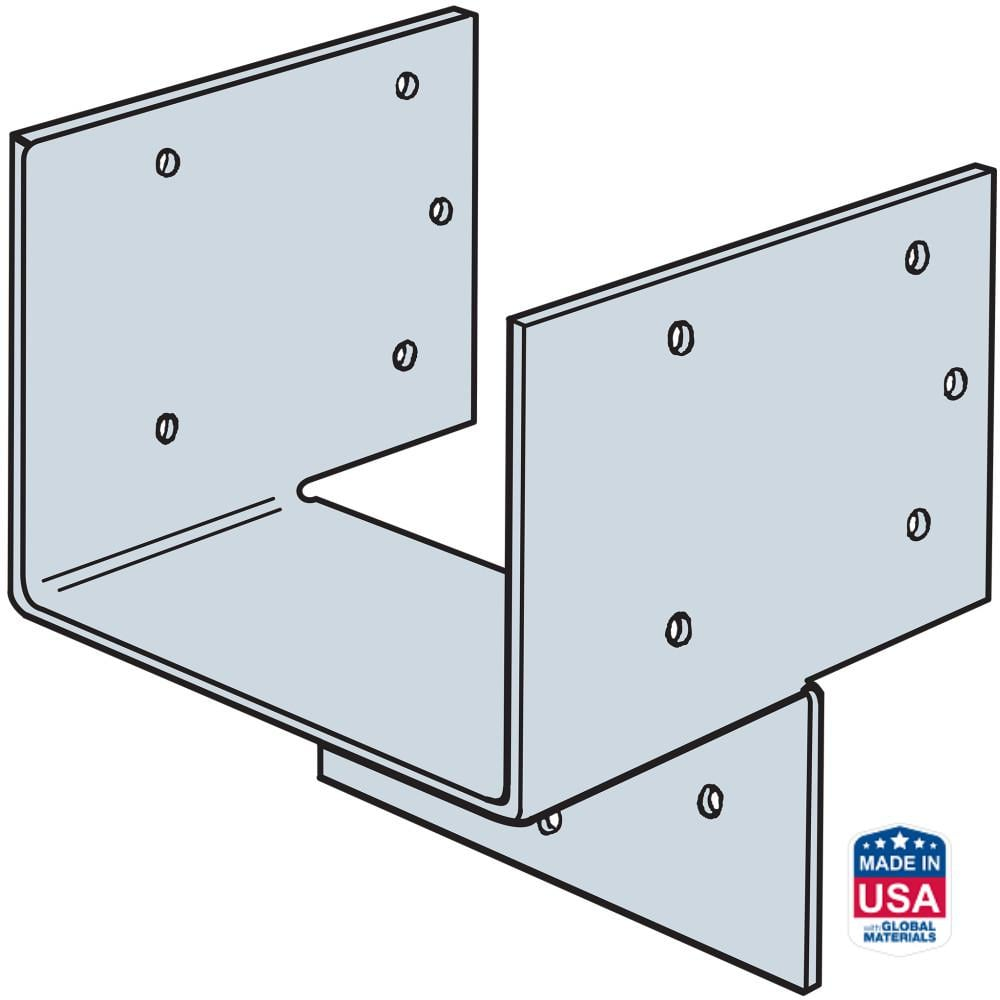

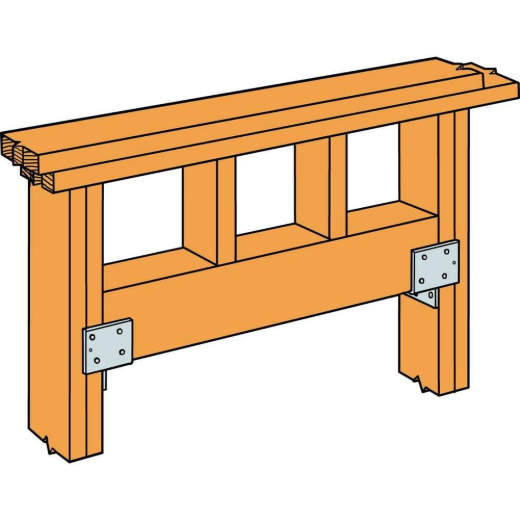

The Simpson Strong-Tie HH4 is a face-mount header hanger designed for the fast and accurate installation of door and window headers. It significantly strengthens wood framing by providing a secure seat for 4x nominal lumber, effectively resisting downward forces. This connector eliminates the need for trimmer studs, which saves both time and material costs during construction. Its robust 16-gauge steel construction ensures long-lasting durability for residential and light commercial projects.
  • Galvanized (G90) Finish
  • 16-Gauge Steel

Features

  • Eliminates the need for trimmers (studs below the header) to speed up framing.
  • Protects door and window header installations from significant download forces.
  • Face-mount design enables quick and secure installation onto supporting wood members.
  • Provides a stable and code-compliant alternative to traditional framing methods.

Includes

  • (1) HH4 Header Hanger

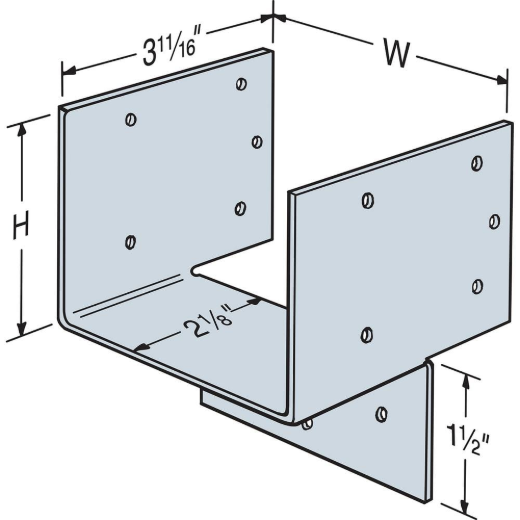

Products specifications
Material 16-Gauge Steel
Finish Galvanized (G90)
Nominal Size 4x Lumber
Seat Width 3-1/2 inch
Seat Height 2-13/16 inch
Fastener Type 16d Nails
Stud Fasteners 9-16d Nails
Header Fasteners 4-16d Nails
*
*
*
