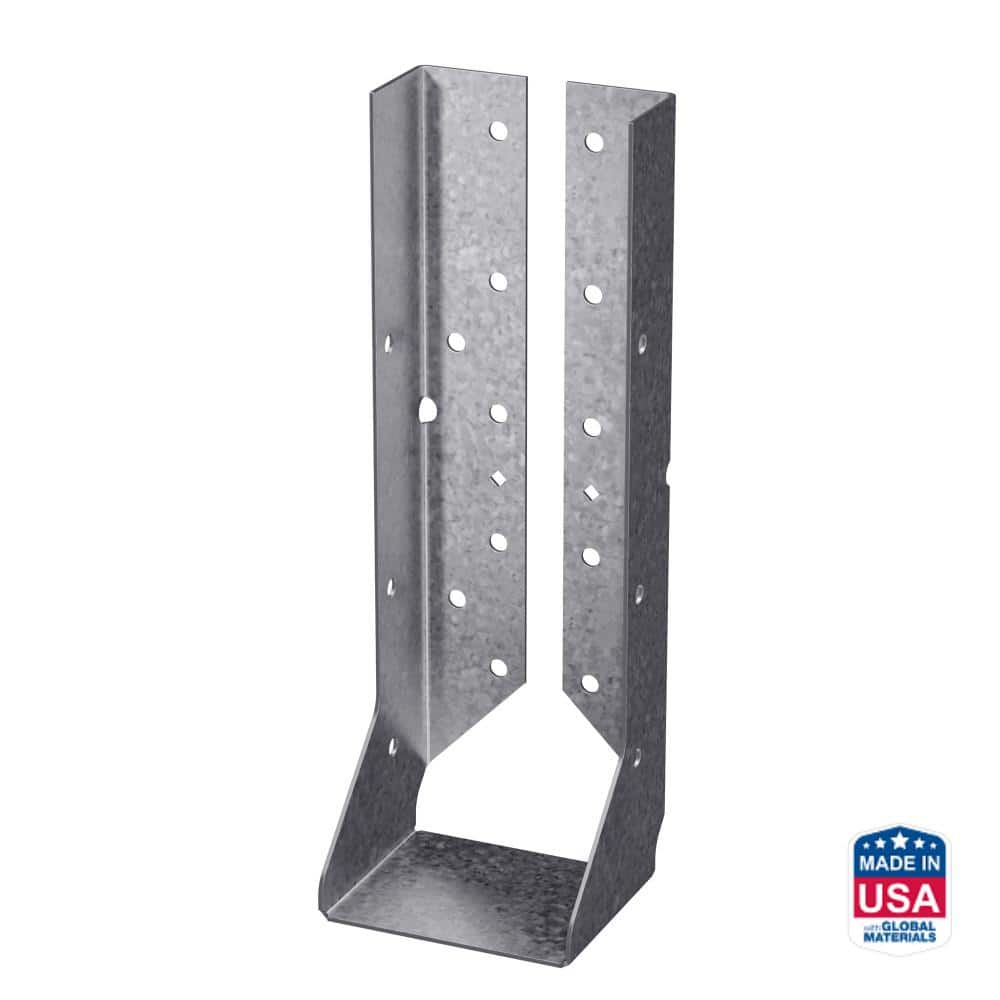

Simpson HUCQ - 4" x 12" Heavy Concealed Flange Face Mount Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091694
Mfr. #: HUCQ412-SDS
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $74.61
i h h

Description

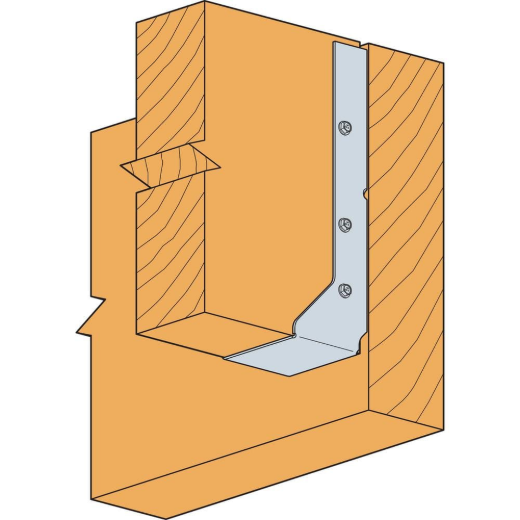

The Simpson HUCQ412-SDS is a heavy-duty, face-mount joist hanger designed for 4x12 beams in applications requiring additional strength and safety factors. Featuring concealed header flanges, this hanger provides a clean, aesthetic look suitable for exposed conditions. It is engineered for rapid installation using included Strong-Drive SDS Heavy-Duty Connector screws, which eliminate the need for predrilling. This solution is ideal for wood-to-wood, wood-to-masonry, and wood-to-concrete framing, offering high load capacity and code compliance.
  • Quick installation with included SDS screws
  • Concealed flanges for clean aesthetics

Features

  • Tested, load-rated, and code-compliant design
  • G90 galvanized finish for corrosion resistance
  • Allows for installation close to the end of supporting beams

Includes

  • 1 Heavy Face-Mount Concealed-Flange Joist Hanger
  • Set of 1/4 inch x 2-1/2 inch Strong-Drive SDS Heavy-Duty Connector screws
Products specifications
Connector Type Concealed-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 4 in x 12 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Concealed-Flange
Series HUCQ
Steel Gauge 14 ga
*
*
*
