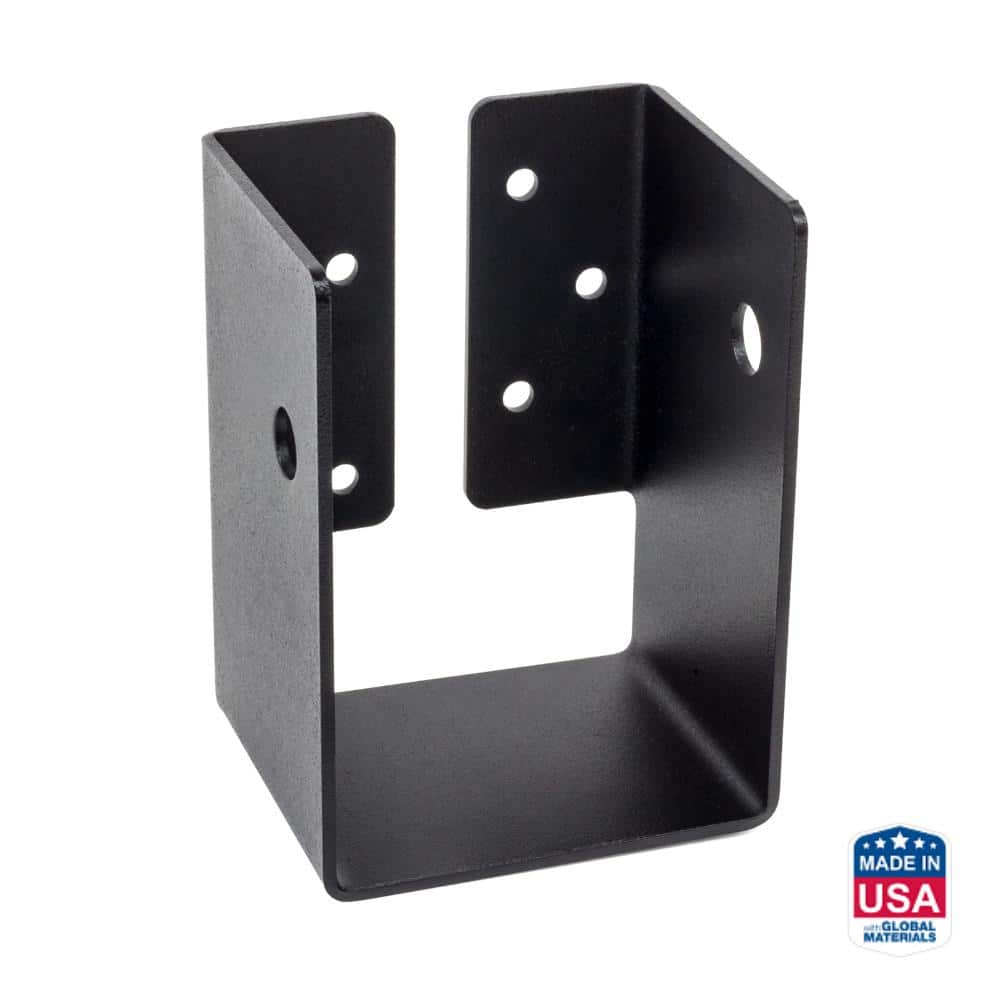

Simpson APHH - 4" x 6" Heavy Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091048
Mfr. #: APHH46
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $39.48
i h h

Description

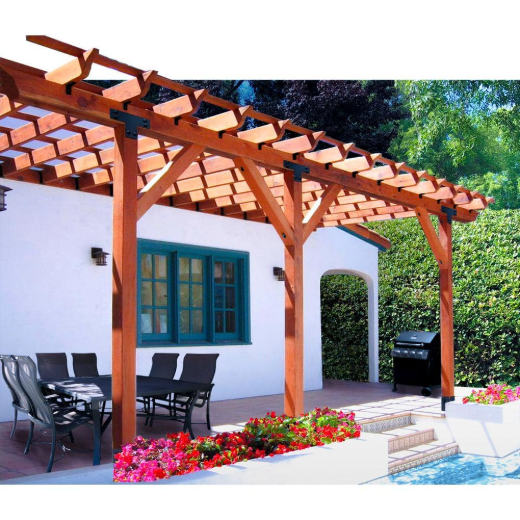

The Simpson Strong-Tie Outdoor Accents APHH46 is a heavy-duty concealed-flange joist hanger designed for robust outdoor living structures. It provides a clean, finished look with straight edges and no visible flanges, integrating seamlessly with the Outdoor Accents Mission Collection and Avant Collection. Engineered for connecting 4x and 6x beams to girders, this hanger offers both structural integrity and aesthetic appeal for pergolas, patio covers, and more.
  • Concealed-flange design for a clean look
  • Durable ZMAX galvanized steel with black powder coat

Features

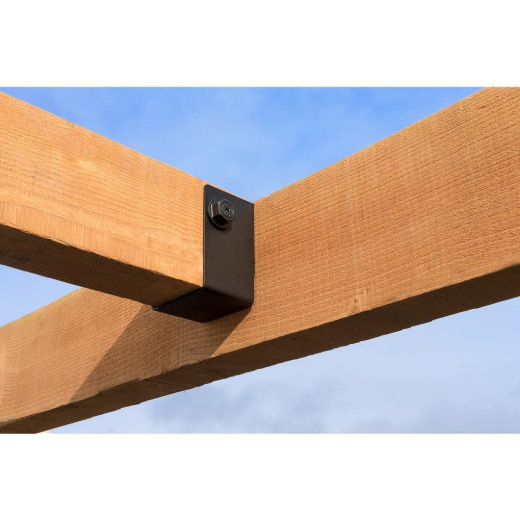

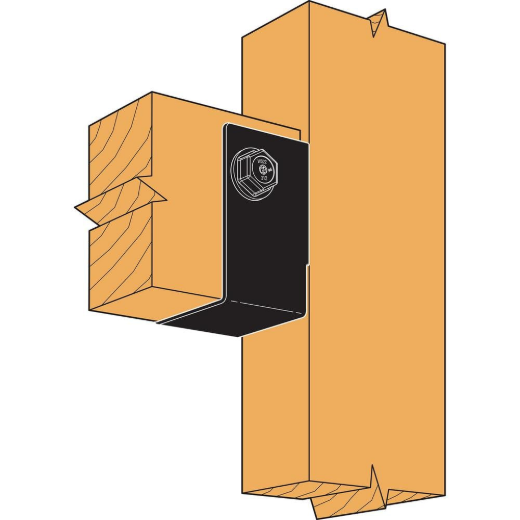

  • Connects 4x and 6x beams to girders.
  • Installs easily with Outdoor Accents structural wood screws and hex-head washers, and Strong-Drive SDS Heavy-Duty Connector screws.
  • Suitable for exterior and treated-wood applications due to enhanced corrosion resistance.

Includes

  • Fasteners sold separately.
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 4 in x 6 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange
Series APHH
Steel Gauge 12 ga
*
*
*
