Simpson Heavy Right-Skewed U-Shaped Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091389
Mfr. #: HSUR210-2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $67.02
i h h

Description

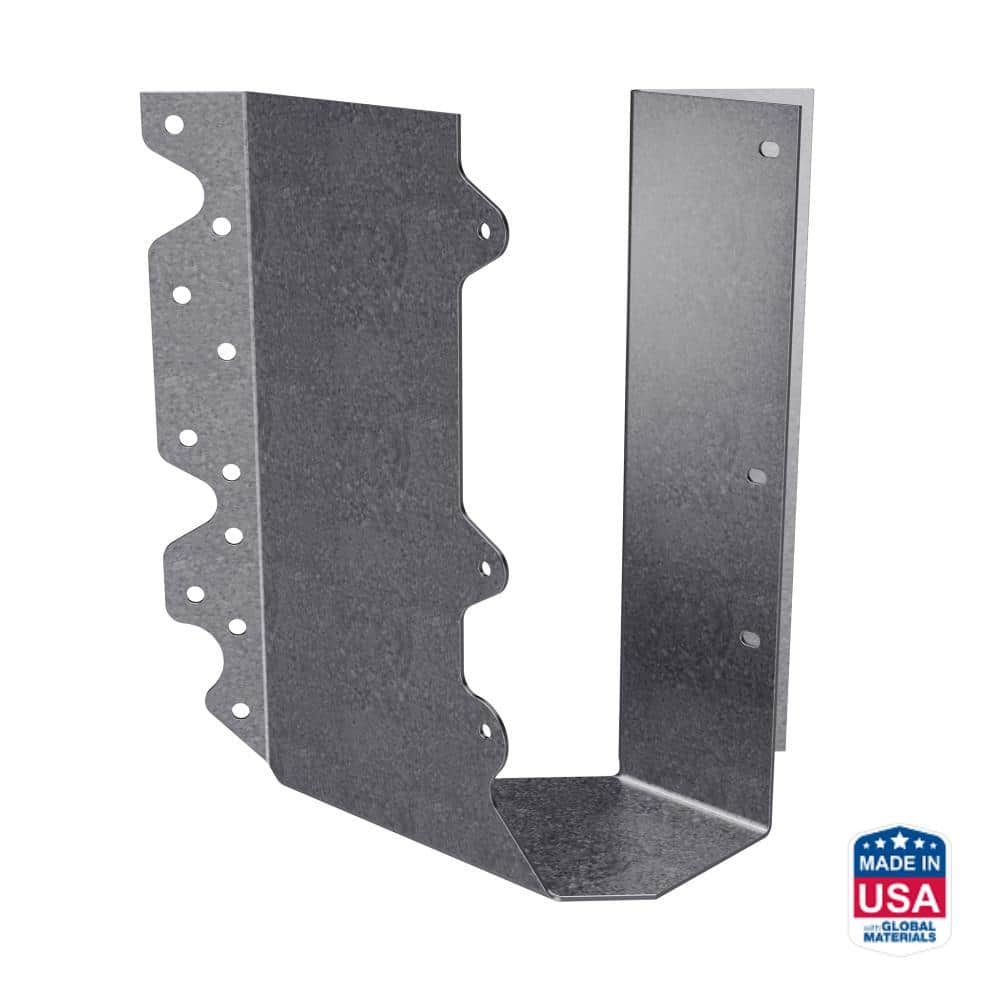

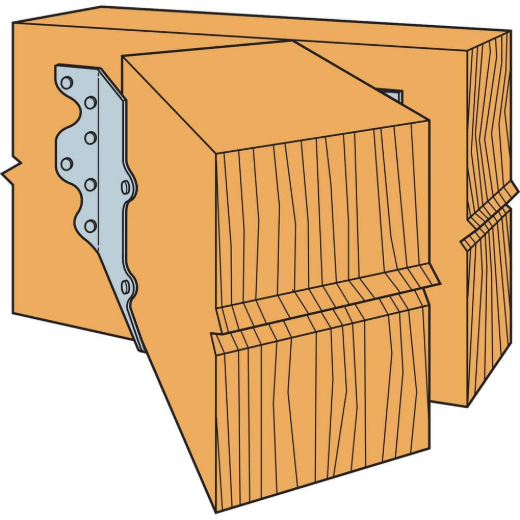

The Simpson Strong-Tie HSUR210-2 is a heavy-duty U-shaped hanger designed to support double 2x10 joists at a 45-degree right-hand skew. This connector encapsulates the top flange of the joist, eliminating the need for web stiffeners in most standard installations and providing superior load-bearing capacity. Its robust 14-gauge steel construction and galvanized finish ensure a reliable, long-lasting connection for residential and commercial framing applications.
  • Heavy-Duty 14-Gauge Steel
  • G90 Galvanized Finish

Features

  • Pre-skewed at 45 to the right to accommodate angled wood-to-wood connections.
  • Features obround nail holes on the acute side for easy nail installation parallel to the joist.
  • Positive-angle nailing helps prevent wood splitting and speeds up the installation process.
  • Designed for solid sawn lumber and double I-joist members without requiring bevel cuts.

Includes

  • (1) HSUR210-2 Skewed Joist Hanger
Products specifications
Material 14 Gauge Carbon Steel
Finish G90 Galvanized
Joist Size Double 2x10
Skew Angle 45 Degrees Right
Height 8-11/16 inch
Width 3-1/8 inch
Depth 2-7/16 inch
Face Fasteners (20) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (6) 0.162 inch x 2-1/2 inch Nails
Model Number HSUR210-2
*
*
*
